Product Details:
|
| Keywords: | Overhead Crane Double Girder | Capacity: | 5ton |
|---|---|---|---|
| Span: | 15M / Customized | Feature: | Make Full Use Of Plant Space |
| Advantage: | Improve Production Efficiency | Max. Lifting Height: | 9m / 12m / Customized |
| Working Duty: | A5-A7 | Application: | Lifting And Transportation In Industrial Production |
| High Light: | ODM Electric overhead crane,ODM double girder bridge crane,Electric Overhead Crane 5ton |
||
OEM ODM Electric overhead crane 5ton High Lifting Speed double girder bridge crane
Overhead crane
Our overhead bridge cranes are typically for heavy-duty material handling needs. Workstation cranes are lightweight and can be installed in any workspace. Jib cranes provide an excellent way to transfer material from on station to another. Gantry cranes work great for moving overhead cranes to different areas.
We have built our business and reputation on the principles of professionalism: quality materials, top craftsmanship, accurate estimates, and strict project deadlines.

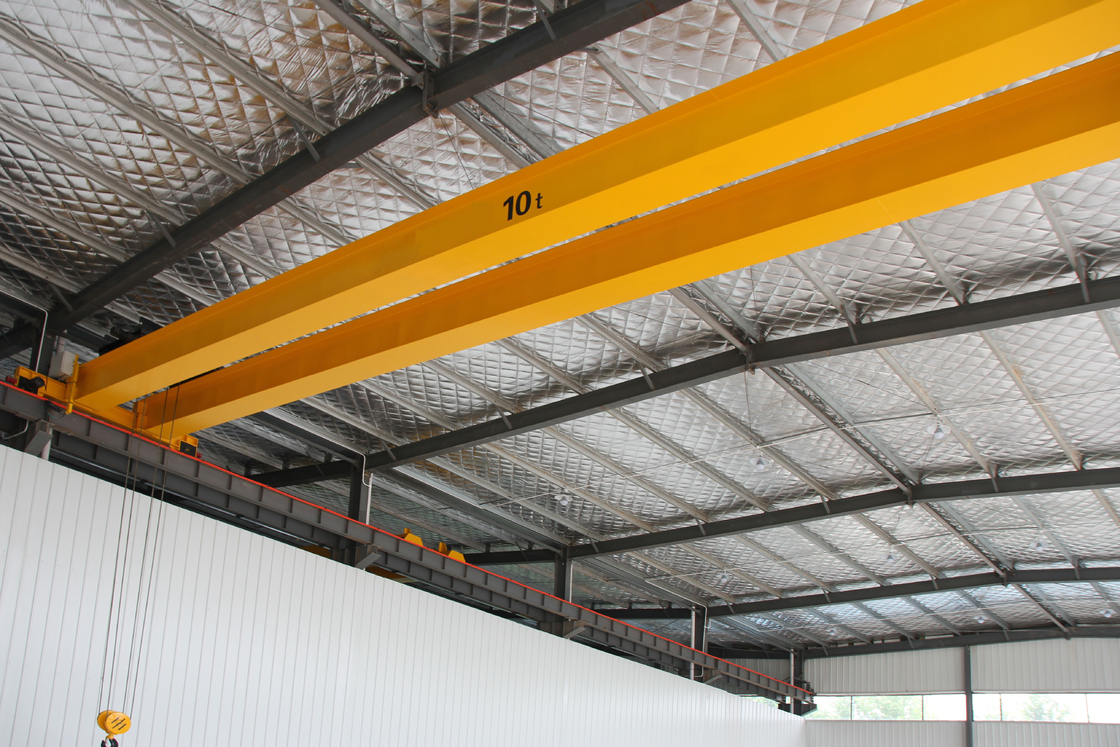

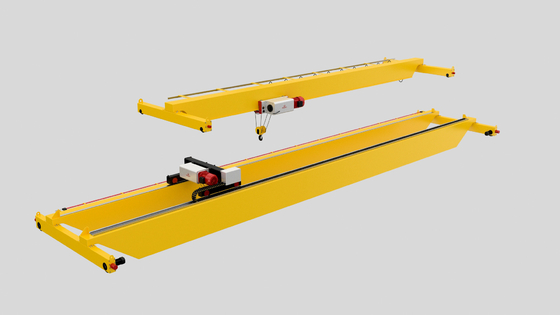

Double beam bridge crane is also known as double beam crane. Its bridge runs longitudinally along the track laid on the viaducts on both sides, and the lifting trolley runs transversely along the track laid on the bridge, forming a rectangular working range, which can make full use of the space under the bridge to lift materials without being hindered by ground equipment.
Advantages:
1.saving space
It can utilize the space below the ceiling rafters, thus ensuring a larger lifting space.
2.Smooth travelling
.The use of side roller guide paths ensures smooth travelling, while the main beam can be designed based on loading capacity and span.
3.More efficient
The shorter total end carriage length and optimal location of the gearmotor installation allow for more efficient use of the workspace.
4.double girder, double speed
Dual speed and polyurethane wheel versions can be used to reduce driving noise and vibration.
Technical Parameter:
| Technical Specifications | ||||||||
| Lifting Capacity | Span | Lifting | Work Duty | Main Lifting | Vice Lifting | Trolley Traveling | Crane Traveling | Track |
| Height | Speed | Speed | Speed | Speed | ||||
| t | m | m | m/min | m/min | m/min | m/min | ||
| 5 | 13.5~19.5 | 18 | A5 | 0.84~8.4 | 3.4~34 | 5.1~51 | 38kg | |
| 22.5~31.5 | 5~50 | |||||||
| 5 | 13.5~19.5 | 18 | A5 | 0.78~7.8 | 3~30 | 5~50 | 38kg | |
| 22.5~31.5 | 5.2~52 | |||||||
| 16/5 | 13.5~19.5 | 18/18 | A5 | 0.76~7.6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 | |||||||
| 20/5 | 13.5~19.5 | 18/18 | A5 | 0.6~6 | 0.84~8.4 | 3.5~35 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 | |||||||
| 32/5 | 13.5~19.5 | 18/18 | A5 | 0.52~5.2 | 0.84~8.4 | 3.1~31 | 5.1~51 | 43kg |
| 22.5~31.5 | 5.2~52 | |||||||
| Oct-50 | 13.5~19.5 | 18/18 | A5 | 0.43~3.9 | 0.78~7.8 | 3.6~36 | 4.8~48 | 43kg |
| 22.5~31.5 | 5.4~54 | |||||||
| Notes: Customizable | ||||||||
Application:

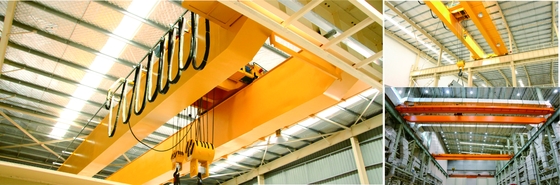

Double girder overhead crane is an important tool to realize mechanization and automation of production process in modern industrial production and lifting and transportation. Therefore, double-girder overhead cranes fit a variety of needs, such as indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals and logistics turnover departments and places, its flexibility of use has already earned a high reputation in these industries.
About products: In order to better serve you, please tell us the following data:
1. Bearing capacity
2. Span (track center distance)
3. Lifting height (from the hook center to the ground)
4. Power supply: voltage
5. Working environment: description of lifting cargo, service environment and temperature
6. If the workshop drawings can be provided, it will be a better support.
