Product Details:
|
| Product Name: | Self Driven Hydraulic Scissor Lifting Platform | Keywords: | Mobile Aerial Work Platform |
|---|---|---|---|
| Lifting Height: | 6-18m | Load Capacity: | 300~2000 Kg |
| Size: | Customized Size | Wheel: | Four Wheels |
| Weight: | 420-1500KG | Color: | Blue,Customers' Requirements,customized,Yellow |
| Lift Drive / Actuation: | Hydraulic | Application: | Aerial Work, Construction Work, |
| Voltage: | 110v 220v 240v 380v Optional | ||
| High Light: | cleaning building hydraulic scissor lift cart,1 ton hydraulic scissor lift cart,1 ton hydraulic scissor cart |
||
Aerial Work Cleaning Building Hydraulic Scissor Lift Cart Self-Driven Hydraulic Platform Lift 1 Ton
Hydraulic lifting platform introduction:
A Hydraulic Scissor Lift is a mechanical device used for vertical lifting. It consists of a platform and a series of folding scissors arms that provide lifting force through a hydraulic system. Hydraulic shear lifts are usually powered by electric or hydraulic pumps, which achieve smooth lifting and positioning through a control system.
Hydraulic Scissor lifts are widely used in industry, construction, warehousing, logistics, aviation and other fields for lifting and transporting goods, equipment or personnel. They provide a convenient vertical lifting solution to move items or people safely and efficiently between different heights. The carrying capacity and lifting height of the hydraulic shear lift can be customized according to specific needs to meet the requirements of different scenarios.
Hydraulic Lifting Platform Specification:
|
product specifications |
GTJZ06 | GTJZ08 | GTJZ10 | GTJZ12 |
| working height | 7.8m | 10m | 12m | 13.8m |
| platform height | 5.8m | 8m | 10m | 11.8m |
| platform height stowed | 1.07m | 1.23m | 1.37m | 1.49m |
| platform length | 1.67m | 2.27m | 2.27m | 2.27m |
| platform extension length | 0.9m | 0.9m | 0.9m | 0.9m |
| platform width | 0.76m | 0.81m | 1.17m | 1.17m |
| overall height | 2.18m | 2.34m | 2.48m | 2.59m |
| overall length | 1.86m | 2.42m | 2.42m | 2.42m |
| overall width | 0.76m | 0.81m | 1.17m | 1.17m |
| wheelbase | 1.31m | 1.87m | 1.87m | 1.87m |
| ground clearance | 0.1m | 0.1m | 0.1m | 0.1m |
| lift capacity | 230kg | 230kg | 320kg | 320kg |
| lift capacity-extension deck | 113kg | 113kg | 113kg | 113kg |
| lift up | 27s | 37s | 45s | 50s |
| lift down | 22s | 32s | 35s | 38s |
| weight | 1415kg | 2250kg | 2440kg | 2860kg |
| drive speed ( platform lowered ) | 0-5km/h | 0-3.5km/h | 0-3.5km/h | 0-3.5km/h |
| drive speed ( platform elevated ) | 0-0.8km/h | 0-0.8km/h | 0-0.8km/h | 0-0.8km/h |
| turning radius-inside | 0 | 0 | 0 | 0 |
| turning radius-outside | 1.64m | 2.10m | 2.14m | 2.14m |
| gradeability | 30% | 25% | 25% | 25% |
| maximum tilt | 3° | 3° | 3° | 3° |
| non-marking solid tires | 15×5 | 15×5 | 15×5 | 15×5 |
| battery | 6V×4/225Ah | 6V×4/225Ah | 6V×4/225Ah | 6V×4/225Ah |
| charger | 30A automatic | 30A automatic | 30A automatic | 30A automatic |
The applications of the self-propelled hydraulic lifting platform
Applications: Hydraulic scissor lifts are widely used in various industries, including but not limited to the following areas:
Warehousing and logistics: for stacking, picking and handling of goods.
Construction and maintenance: Used for high height construction, maintenance and installation work.
Industrial manufacturing: used for material lifting, assembly line height adjustment, etc.
Hotels and shopping malls: used for goods up and down the floor, shelf adjustment, etc.
Aviation and logistics: for the loading and unloading of cargo and equipment.
Healthcare: for the transfer and care of patients.
Packaging and Shipping

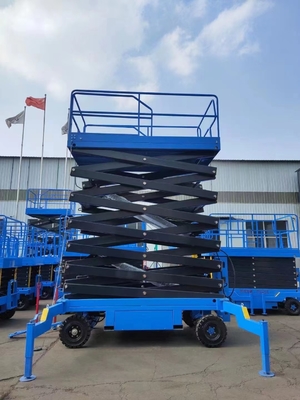

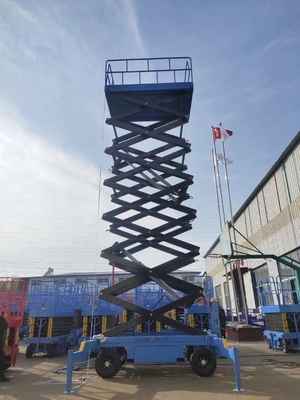

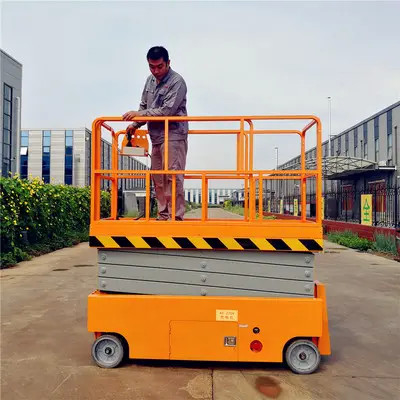

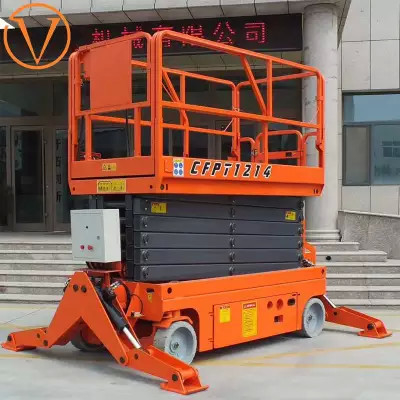

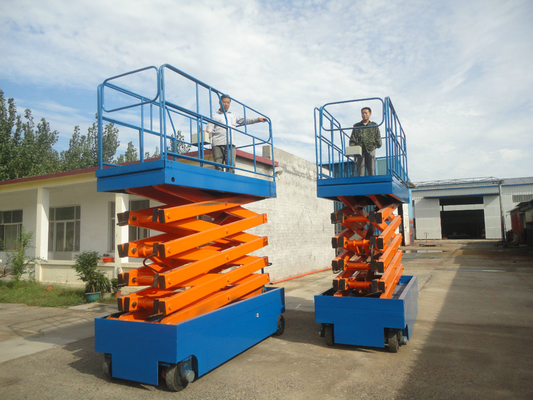

Hydraulic Lifting Platform Photos:
