MH10T Equipped With Safety Stopper 10T European Style Hoist Single Girder Gantry Crane

Introduction:

A single girder gantry crane is a type of crane that is commonly used in industrial settings for lifting and moving heavy loads. It consists of a single beam, known as the girder, which is supported by two vertical legs and travels along rails mounted on the ground. The girder can be made of steel or other materials with high strength and durability.

These cranes are operated by a control system that allows the operator to control the movements of the crane, including lifting, lowering, and horizontal travel. They can be equipped with various lifting mechanisms, such as wire rope hoists or chain hoists, depending on the specific application and load requirements.

Single girder gantry cranes are known for their compact design, which allows them to be easily assembled, disassembled, and relocated as needed. They offer a cost-effective solution for lifting and moving materials in areas where overhead crane systems may not be feasible.

Advantage

The main advantages of a portable gantry crane are its mobility and versatility. It can be disassembled into smaller components, making it easier to transport to different job sites or locations. Once at the desired location, the crane can be quickly assembled and put into operation, providing a convenient lifting solution.

1. Flexibility: The design of single-girder gantry cranes allows for rapid assembly and disassembly in different environments and can be moved and relocated as needed.
2. Economical and efficient: Compared with large crane systems, single-girder gantry cranes are less expensive and have efficient working capabilities.
3. Adaptability: Single-girder gantry cranes can be customized according to specific application needs, such as adding additional suspension devices, protective equipment and remote control systems.
4. Easy operation: These cranes are equipped with an operating control system that allows the operator to control the movement of the machine through the console or remote control.

Gantry Crane


1.Capacity: The lifting capacity of a crane is typically measured in metric tons (t) or short tons (st). For example, a single girder gantry crane may have a lifting capacity of 5 tons or 10 tons.

2.Span: The span refers to the distance between the two vertical legs of the gantry crane. It is usually measured in meters (m) or feet (ft). For instance, a single girder gantry crane may have a span of 20 meters or 65 feet.

3.Height: The height of a single girder gantry crane can refer to the height of the legs or the height of lift. It is typically measured in meters (m) or feet (ft). For example, the height of the legs may be 6 meters or 20 feet, while the height of lift may be 8 meters or 26 feet.

4.Speed: The speed of the crane's movements, such as hoisting, trolley travel, and bridge travel, is typically measured in meters per minute (m/min) or feet per minute (ft/min).

5.Power: The power requirements of a single girder gantry crane, such as motor power or electrical supply, are usually measured in kilowatts (kW) or horsepower (hp).

Technical Parameter:

Gantry crane features:

1.Efficient Material Handling: These cranes are designed for efficient material handling operations. They can be equipped with various lifting mechanisms, such as electric wire rope hoists or chain hoists, to suit specific load requirements.

2.Operator Control System: Single girder gantry cranes are operated using a control system that enables the operator to control the crane's movements, including lifting, lowering, and horizontal travel. This control system ensures precise and safe operation.

3.Safety Features: Single girder gantry cranes are equipped with safety features, such as limit switches, overload protection systems, emergency stop buttons, and safety alarms. These features help prevent accidents and ensure the safety of operators and surrounding personnel.

4.Easy Installation and Maintenance: Single girder gantry cranes are relatively easy to install and maintain. Their modular design allows for convenient assembly and disassembly, and routine maintenance tasks can be carried out efficiently.

5.Customization Options: These cranes can be customized to meet specific requirements, such as adding additional features like remote control systems, anti-collision devices, or specialized lifting attachments.

Application:

1.Warehouses and Distribution Centers: Single girder gantry cranes are commonly used in warehouses and distribution centers for loading and unloading goods, as well as for material handling and storage operations. They are ideal for moving heavy items in a controlled and efficient manner.

2.Manufacturing and Production Facilities: These cranes are widely used in manufacturing and production facilities for tasks such as assembling, lifting and positioning components, and transferring materials along the production line. They enhance productivity and streamline workflow by providing reliable lifting capabilities.

3.Construction Sites: Single girder gantry cranes are often deployed at construction sites for lifting and moving construction materials, equipment, and structures. They are versatile and can be used for tasks such as lifting steel beams, concrete panels, and other heavy construction materials.

4.Shipping Yards and Ports: These cranes play a crucial role in shipping yards and ports for loading and unloading cargo containers from trucks, ships, and railcars. They facilitate efficient and safe handling of containers and other bulky items.

5.Outdoor Applications: Due to their mobility and flexibility, single girder gantry cranes are well-suited for outdoor applications such as mining operations, shipbuilding, and infrastructure projects. They can be easily transported to different job sites and provide reliable lifting solutions in challenging environments.

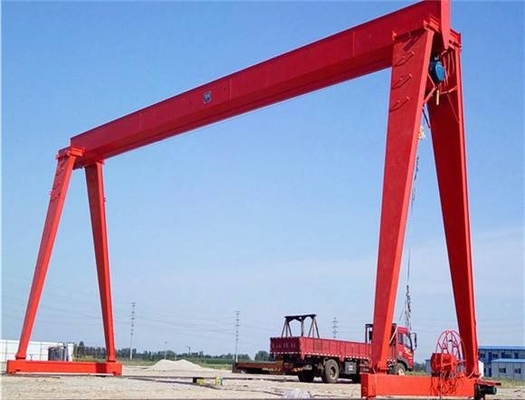

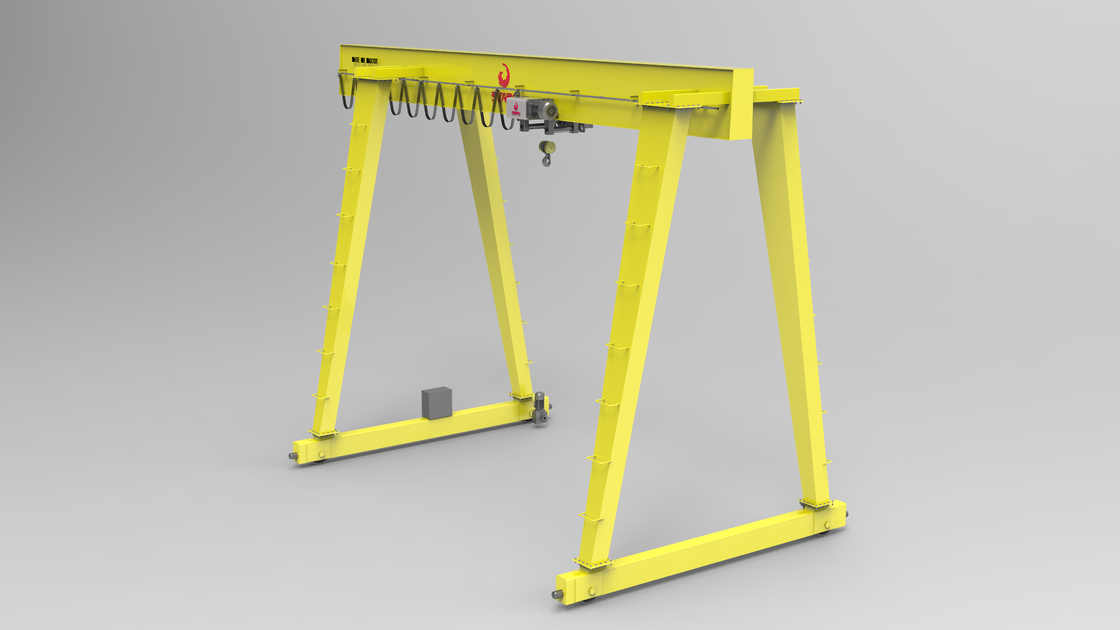

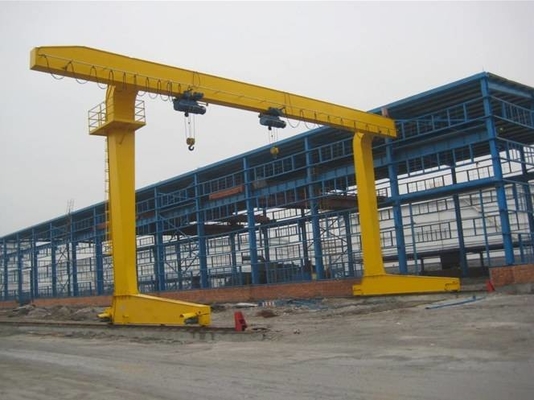

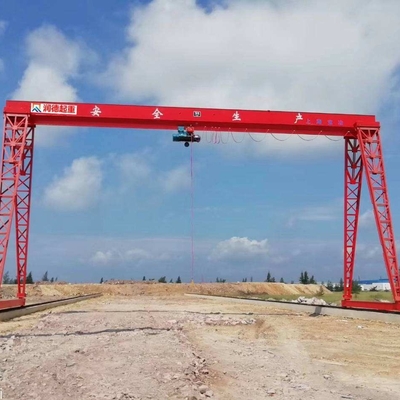

Photos:
