Product Details:
|
| Crane Feature: | Easy Operated Bridge Crane | Warranty: | 18 Months |
|---|---|---|---|
| Load Capacity: | 5-800t | Advantage: | Safe, Stable, Easy Maintainence. |
| Capacity: | 5-100 Ton | Main Electrical Parts: | Siemens, Chint, Schneider |
| Working Grade: | A5-A7 | Guarantee Period: | 12 Months |
| High Light: | A3 Double Girder Bridge Hanging Crane,Customizable double girder overhead crane,A3 Customizable Crane |
||

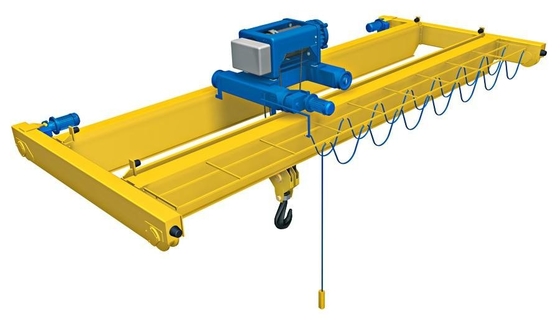

Girders: The double girder overhead crane consists of two main girders which run parallel to each other and are connected by cross beams. These girders are typically made of structural steel and are designed to withstand the weight of the load as well as the stresses during operation.
End Trucks: Positioned at each end of the crane, the end trucks support the girders and are equipped with wheels or rollers for movement along rails or tracks. They also house the drive mechanisms, such as motors and gearboxes, that provide power to the crane's movements.
Hoist and Trolley: Mounted on the girders, the hoist and trolley assembly is responsible for lifting and moving the load. The hoist, which is the lifting device, is attached to a trolley that runs horizontally along the girders. The hoist and trolley system can be electrically or manually operated, depending on the specific requirements.
Control System: The double girder overhead crane is controlled through a control panel or pendant station. This control system enables operators to safely operate the crane, controlling its movements, lifting and lowering the load, and managing the speed and positioning of the crane.
Safety Features: To ensure safe operation, double girder overhead cranes are equipped with various safety features. These may include overload protection systems, limit switches to prevent over-travel, emergency stop buttons, safety brakes, and warning devices such as alarms or lights.
High Load Capacity: Double girder overhead cranes are designed to handle heavy loads with capacities ranging from a few tons to several hundred tons. The two parallel girders provide increased stability and load-bearing capacity, making them suitable for lifting and moving large and heavy objects.
Longer Span: Double girder overhead cranes are capable of spanning longer distances compared to single girder cranes. The double girder configuration allows for greater structural rigidity and enables the crane to cover larger areas or workstations within a facility.
Increased Hook Height: The double girder design provides a higher hook height compared to single girder cranes. This allows for greater vertical lift and improved flexibility in handling taller loads or working in facilities with higher ceilings.
| Product Name | Double Girder Overhead Crane |
|---|---|
| Steel Track Recommend | 43kg/m Or QU70 |
| Crane Feature | Easy Operated Bridge Crane |
| Main Electrical Parts | Siemens, Chint, Schneider |
| Usage | Factory,Steel Factory |
| Can Be Customized | Available |
| Advantage | Safe, Stable, Easy Maintainence |
| Girder Type | Double Type |
| Lift Height | 6-30M |
| Working Grade | A5-A7 |
| Guarantee Period | 12 Months |
Double girder overhead cranes are essential tools in manufacturing facilities, where they are utilized for lifting and moving heavy components, machinery, and equipment during production and assembly processes. These cranes are commonly used in various industries, including automotive, aerospace, steel, and general manufacturing.

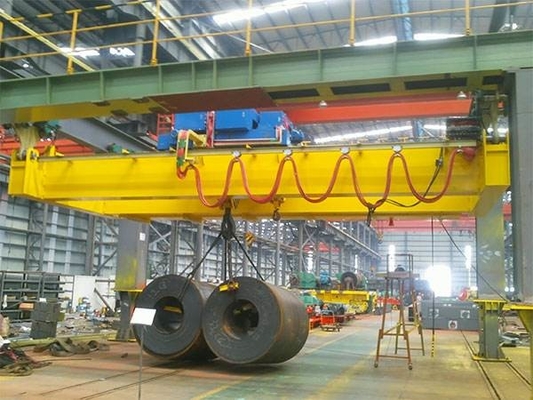

In the steel mills and metal processing plants, double girder overhead cranes play a critical role in handling heavy materials such as molten metal, large steel coils, and ingots. These cranes are designed to withstand the high temperatures and harsh environments commonly found in steel and metal industries.
Power plants rely on double girder overhead cranes for maintenance and installation tasks. These cranes are capable of lifting and positioning heavy equipment, such as turbines, generators, transformers, and large pipes, which are essential for power generation.
Brand Name: Bestaro
Model Number: BC-1D
Place of Origin: China
Certification: CE, ISO
Minimum Order Quantity: 1 Set
Price: 10000-50000 USD
Packaging Details: Export Standard packing
Delivery Time: 15-45 days
Payment Terms: TT
Supply Ability: 500 Sets per month
Limit Switch: Included
Can Be Customized: Available
Steel Track Recommend: 43kg/m or QU70
Load Capacity: 5-800t
Crane Feature: Easy Operated Bridge Crane
Bestaro's double girder overhead crane is the perfect solution for heavy lifting and material handling needs. With its sturdy construction and advanced technology, this crane is built to withstand the toughest working conditions. Our customized service ensures that the crane meets your specific requirements and provides efficient and safe operations.
Trust Bestaro to provide the best solutions for your heavy lifting needs. Contact us today for more information and to request a quote.
A: The brand name of this product is Bestaro.
A: The model number of this product is BC-1D.
A: This product is manufactured in China.
A: Yes, this product is certified by CE and ISO.
A: The minimum order quantity for this product is 1 set.
A: The price for this product ranges from 10000 to 50000 USD.
A: This product is packaged in Export Standard packing.
A: The estimated delivery time for this product is 15-45 days.
A: The accepted payment terms for this product are TT (Telegraphic Transfer).
A: This product has a supply ability of 500 sets per month.
