100KN Light Weight High Speed Electric Winch With Wire Rope

100KN Light Weight High Speed Electric Winch With Wire Rope
100KN Light Weight High Speed Electric Winch With Wire Rope 100KN Light Weight High Speed Electric Winch With Wire Rope

Large Image :  100KN Light Weight High Speed Electric Winch With Wire Rope

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 30 workdays
Payment Terms: L/C, T/T
Supply Ability: 60000 sets per year

100KN Light Weight High Speed Electric Winch With Wire Rope

Description
Product Name: Industrial Electric Winch Keyword: Light Weight High Speed Electric Winch
Capacity: 5~650KN , 270~86000Kg Sling Type: Wire Rope
Lifting Speed: 0-30m/min Power Source: Electric
Certification: ISO CE Usage: Construction
Application: Cranes . Warehouse , Industry , Workshop Customized Support: OEM
High Light:

100KN Light Weight Electric Winch

,

30m/min High Speed Electric Winch

,

Lightweight winch with wire rope

Light Weight High Speed Industrial Electric Winch Widely Used



Description:



JK series electric winches are operated by ground personnel most of the time, and can also be operated in the room, or remotely operated wirelessly. In addition to special use, they can also be used with electric trolleys and ordinary trolleys. Simple, light weight, easy to install and remove, it can be used all the time or temporarily.



JK series electric winch are widely used because of their simple operation, large amount of rope winding and convenient displacement. Mainly used for material lifting or flat dragging in construction, water conservancy, forestry, mines, docks, etc. It can also be used for crane as the main winch; it is a special winch for derrick, gantry and hoisting trolley. It is suitable for the construction and installation of small equipment in construction and mining lifting plants.



Specification:



Electric winch is made up of motor, brake, drum, wire rope, electrical appliance, base ect , which can be customized according to client requirement.



Items Rated load Rated speed Rope capacity Rope diameter Motor Power Size Weight
KN m/min m mm mm kg
JK0.5 5 22 190 7.7 Y100L-4 3 620*701*417 200
JK1 10 22 100 9.3 Y112M-4 4 620*701*417 300
JK1.6 16 24 150 12.5 Y132S-4 5.5 945*996*570 500
JK2 20 24 150 13 Y132M-4 7.5 945*996*570 550
JK3.2 32 25 290 15.5 YZR180L-6 15 1325*1335*840 1011
JK3.2B 32 30 250 15.5 YZR200L-6 22 1900*1738*985 1500
JK5 50 30 300 21.5 YZR225M-6 30 1900*1620*985 2050
JK5B 50 25 210 21.5 YZR225M-8 22 2250*2500*1300 2264
JK8 80 25 160 26 YZR280S-8 45 1533*1985*1045 3000
JK10 100 30 300 30 YZR315S-8 55 2250*2500*1300 5100



JK series winch can be customzied Max. 60T according to your demands.



Common winch models:



1. JK0.5-JK5 single drum fast winch
2. JK0.5-JK12.5 single drum slow speed winch
3. JKL1.6-JKL5 fast hoist
4. JML5, JML6, JML10 piling winch
5. 2JK2-2JML10 double drum winch
6. JT800, JT700 explosion-proof hoist
7. JK0.3-JK15 electric control winch
8. Non-standard winch



Among them, JK means fast hoist, JM means slow hoist, JT means explosion-proof hoist, single reel means one reel holds wire rope, double reel means two reels hold wire rope.



Applications of winch:



Electric winches are typically used to drag or lift heavy objects or objects vertically, horizontally or obliquely through the winch drum. etc.

Electric winches can be used for horizontal pulling, cable pulling or vertical lifting.

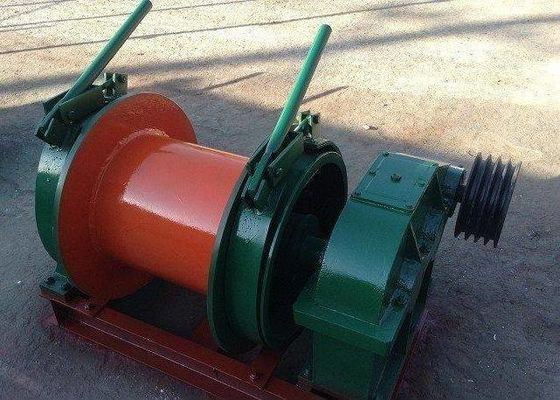

Winch Photos:



100KN Light Weight High Speed Electric Winch With Wire Rope 1
