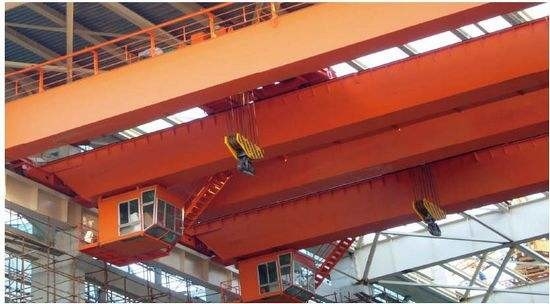

5 Ton Double Girder Bridge Crane

5 Ton Double Girder Bridge Crane
5 Ton Double Girder Bridge Crane 5 Ton Double Girder Bridge Crane

Large Image :  5 Ton Double Girder Bridge Crane

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 45 workdays
Payment Terms: L/C, T/T
Supply Ability: 500 sets per year

5 Ton Double Girder Bridge Crane

Description
Keywords: Bridge Cranes Double Girder Span: 15M
Feature: Large Load And Strong Wind Resistance Max. Lifting Height: 9m,12m,6m
Capacity: 5 Ton Girder Structure: Box Girder
Working Duty: A5-A7 Application: Modern Industrial Production
High Light:

5Ton Double Girder Bridge Crane

,

Span 15M Double Girder Bridge Crane

,

High Stability Box Girder Crane

Box Girder Structure Double Girder Bridge Crane With High Stability



Introduction:



The double-girder overhead crane is composed of straight rail, crane main beam, lifting trolley, power transmission system and electrical control system, and is especially suitable for material conveying in the plane range with large suspension and large lifting capacity.

The double-girder bridge crane has strong bearing capacity, large span, good overall stability and many varieties, but its own quality is larger than that of the single-girder gantry crane with the same lifting capacity, and the cost is also higher. According to the main beam structure, it can be divided into two forms: box girder and truss. Generally a box-shaped structure is used.



Technical Parameter:



5 Ton Double Girder Bridge Crane 0

Cap (t) 5/ 10
Span (m) 10.5 13.5 16.5 19.5 22.5 25.5 28.5 31.5

Main

Dimensions

(mm)

H 1763/1800
H1 765
H2 24 126 226 376 526 676 826 976
H3 2396 2546 2646 2796 2946 3096 3246 3396
H4 71-552
K 1400-2000
W 3400 3550 5000
B 5054 5204 5948
b 230
Max. Wheel Load (KN) 72-152
Total Power (KW) 10-15.5
Lifting Height (m) 16
Hoisting Speed (m/min) 5



Design advantages:



1. The double-girder bridge crane box girder design has the characteristics of light weight, large load and strong wind resistance.
2. The unique steel pin connection is not only firm and reliable, but also the assembly time is short.
3. Flexible rod outriggers can be disassembled into a single piece for construction site steering, which is convenient for transportation.
4. The smallest installed capacity solves the difficulty of using electricity in field construction.



Application:



Double girder overhead crane is an important tool and equipment to realize mechanization and automation of production process in modern industrial production and lifting and transportation. Therefore, double-girder overhead cranes are widely used in indoor and outdoor industrial and mining enterprises, iron and steel chemical industry, railway transportation, port terminals and logistics turnover departments and places.



Photos:

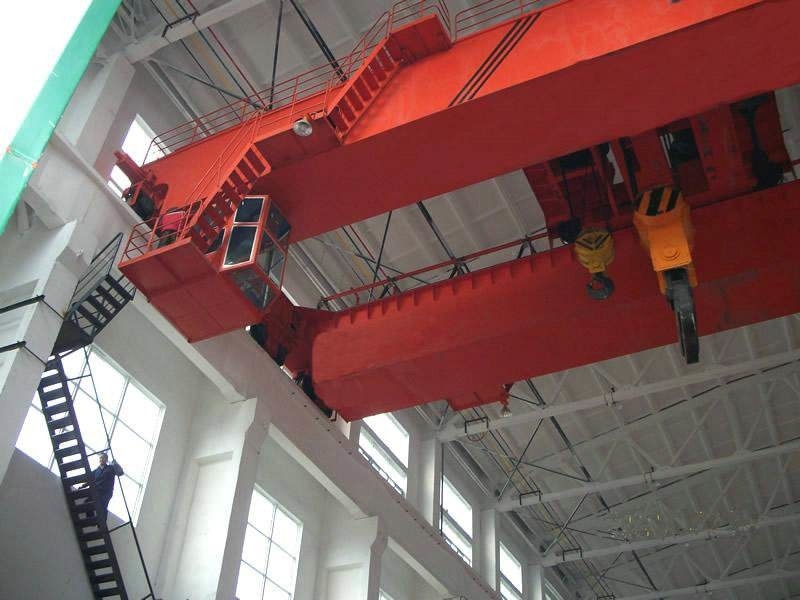

5 Ton Double Girder Bridge Crane 1
