CE Electric A5 16/3.2T Double Girder Gantry Crane Materials Loading Unloading Crane

CE Electric A5 16/3.2T Double Girder Gantry Crane Materials Loading Unloading Crane
CE Electric A5 16/3.2T Double Girder Gantry Crane Materials Loading Unloading Crane CE Electric A5 16/3.2T Double Girder Gantry Crane Materials Loading Unloading Crane

Large Image :  CE Electric A5 16/3.2T Double Girder Gantry Crane Materials Loading Unloading Crane

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 45 workdays
Payment Terms: L/C, T/T
Supply Ability: 500 sets per year

CE Electric A5 16/3.2T Double Girder Gantry Crane Materials Loading Unloading Crane

Description
Keywords: Double Girder Gantry Crane Span: 5-40m Or On Request
Certification: CE Max. Lifting Height: 9m,12m,6m
Lifting Load: 16 / 3.2T Power Source: 3 Phase 380V 50hz Or Accord Your Requirements
Crane Feature: Easy Operated Girder Bridge Crane Application: Warehouse Loading And Unloading Materials
High Light:

16/3.2T Double Girder Gantry Crane

,

A5 Double Girder Gantry Crane

,

CE Materials Loading Unloading Crane

CE Electric A5 16 / 3.2T Double Girder Gantry Crane For Warehouse Loading And Unloading Materials



Introduction:



Gantry cranes (also known as gantry cranes) are bridge-type cranes in which the bridge is supported on the ground rails through outriggers on both sides. In structure, it consists of gantry, cart running mechanism, lifting trolley and electrical parts.
The upper bridge frame of the gantry crane (including the main beam and end beam), outriggers, lower beams and other parts. In order to expand the working range of the crane, the main beam can extend beyond the outriggers to one or both sides to form a cantilever. A hoisting trolley with a jib can also be used, and the crane's operating range can be expanded through the pitching and rotation of the jib.



Technical Parameter:



Capacity (ton) 5 10 16/3.2 20/5 32/5 50/10
Span (m) 18, 22, 24, 26, 30, 35
Lifting height (m) 10, 11, 12
Working class A5
Control way Cabin control or remote control
Power source 380V 50HZ 3phase (Could supply it as yours)
Trolley lifting mechanism

Lifting speed

(m/min)

Main hook 11.3 8.5 7.9 7.2 7.5 5.9
Auxiliary hook - - 14.6 15.4 15.4 10.4
Trolley traveling mechanism
Traveling speed (m/min) 37.3 35.6 36.6 36.6 37 36
Crane traveling mechanism
Traveling speed (m/min) 37.3 39.7 37.3 39.7 39.4 38.5
Motor power(KW) 40.8-51.8 41.5-52.8 80-77 84-81 99.3-117.3 126.5
Rail track recommended 43kg/m 43kg/m or QU70



Advantages:



1. Module control speed, micro-speed and double speed;

2. Traveling and lifting smoothly;

3. The power for trolley moving adopts flat cable, sliding smoothly;

4. Control box layout is reasonable, easy to repair;

5. Protection class IP55;

6. Optional main power source ;

7. All external cable line number with mark;

8. Safety smooth touch line, high conductivity, small pressure drop;

9. Light weight, installation convenience;

10. Set electric taxi speed is high, ensure continuing power supply;

11. Optional speed control module, and can realize the micro speed and double speed.



How to choose:



1. Selection of gantry crane

2. Span and cantilever length

3. The principle of determining the wheelbase

4. The gantry crane spacing size is determined

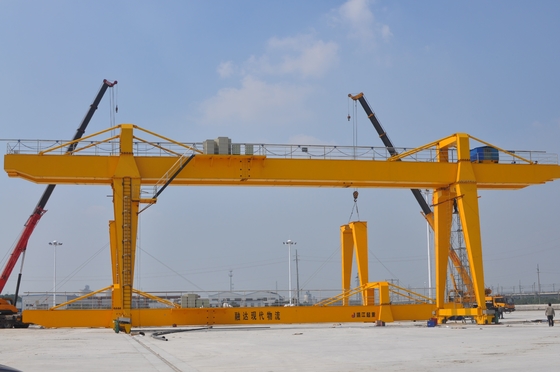

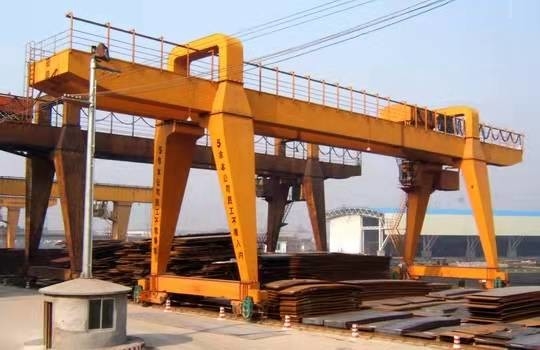

Photo:



CE Electric A5 16/3.2T Double Girder Gantry Crane Materials Loading Unloading Crane 0
