20 Ton RTG Rubber Tyred Container Gantry Crane Double Girder For Port

20 Ton RTG Rubber Tyred Container Gantry Crane Double Girder For Port
20 Ton RTG Rubber Tyred Container Gantry Crane Double Girder For Port 20 Ton RTG Rubber Tyred Container Gantry Crane Double Girder For Port

Large Image :  20 Ton RTG Rubber Tyred Container Gantry Crane Double Girder For Port

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 45 workdays
Payment Terms: L/C, T/T
Supply Ability: 500 sets per year

20 Ton RTG Rubber Tyred Container Gantry Crane Double Girder For Port

Description
Keywords: RTG / Rubber Tyred Container Gantry Crane Span: 5-40m
Certification: CE Max. Lifting Height: 9m,12m,6m
Lifting Load: 20T Power Source: 3 Phase 380V 50hz Or Accord Your Requirements
Crane Feature: Easy Operated Girder Bridge Crane Application: Port
High Light:

RTG Rubber Tyred Container Gantry Crane

,

Gantry Crane Double Girder For Port

,

20 Ton rtg rubber tyred gantry crane

20 Ton Double Girder RTG Rubber Tyred Container Gantry Crane For Port



Introduction:



Rubber Tyre Gantry Cranes(RTG) are special equipments to remove, load and unload international standard containers. Running and moving in the yard, it has the advantage of high production efficiency and fine maneuverability, also the small sensibility to unevenness of the ground. RTG has tractor trolley and standard trolley two models. RTG is powered by cable drum. At the same time, diesel generating set is equipped for conditions when the power is off or the crane moves to another yard.



Technical Parameter:



Model

LJ35/40-23

Light Type LJ40-23

Capacity(under spreader) (t)

35,40

40

Work Duty

A7,A8

A6,A7

Span (m)

23.47

23.47

Lifting Height (m)

12.2~17.8

16.5

Stack Layers/Passing Layers

3/4~5/6

5/6

Container Model

20',40',45'

20',40',45'

Spreader Rotating Angle

±5°

±5°

Hoisting Speed (m/min)

13/26,23/52

12/18,18/28

Cross Travel Speed (m/min)

50,70

24

Long Travel Speed (m/min)

Full Load-90,Without Load-130

Full Load-20,Without Load-40

Max.Wheel Load (kN)

310

310

Total Rating (kW)

150,230

110,150

Power Supply

Electric, Diesel engine, Electric-Diesel drive



Rubber tyre Container Crane Features:

  • The power source is three-phase alternating current, rated frequency is 50HZ, rated voltage is 380V.
  • The working environment temperature ranges from -20℃ to +45℃ and the relative humidity is no lower than 95%(with dew).
  • In-service, the wind speed should be no higher than 20m/s; out-of-service, the wind speed should be no higher than 44m/s.
  • The gradient of crane traveling floor should be less than 1% and part of that should be no more than 3%.
  • The crane which has the special requirement for working conditions, can be manufactured following the contracts.


Photo:

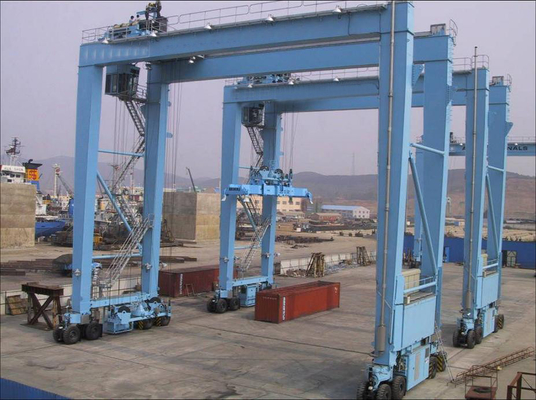

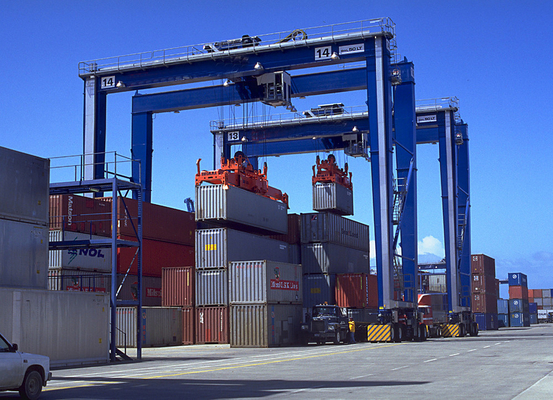

20 Ton RTG Rubber Tyred Container Gantry Crane Double Girder For Port 0
