Customized Outdoor Double Girder Gantry Crane 50/10 Ton To 100/20 Ton

Customized Outdoor Double Girder Gantry Crane 50/10 Ton To 100/20 Ton
Customized Outdoor Double Girder Gantry Crane 50/10 Ton To 100/20 Ton Customized Outdoor Double Girder Gantry Crane 50/10 Ton To 100/20 Ton

Large Image :  Customized Outdoor Double Girder Gantry Crane 50/10 Ton To 100/20 Ton

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 45 workdays
Payment Terms: L/C, T/T
Supply Ability: 500 sets per year

Customized Outdoor Double Girder Gantry Crane 50/10 Ton To 100/20 Ton

Description
Keywords: Double - Girder Gantry Crane Span: 5-40m Or On Request
Certification: CE Max. Lifting Height: 9m,12m,6m
Lifting Load: 16 / 3.2T Power Source: 3 Phase 380V 50hz Or Accord Your Requirements
Crane Feature: Easy Operated Girder Bridge Crane Application: Outdoor Cargo Yards
High Light:

Double Girder Gantry Crane 50/10 Ton

,

Double Girder Gantry Crane 75/20 Ton

,

Outdoor Gantry Crane 100/20 Ton

Customized MG Type Double - Girder Gantry Crane Outdoor


Introduction:


1) Reasonable structure

2) Favorable performance

3) Smooth starting and stopping

4) Safe and reliable traveling

5) Low noise, commodious cabin and good view

6) Convenient maintenance, excellent exchangeability for parts and components

7) Saves electricity specifications


Technical Parameter:



Capacity T 50/10 75/20 100/20
Span m 7.5~31.5
Lifting height Main hook m 12 20 22
Aux.hook m 16 22 22
Operation method   Pendent control,wireless control,cabin control
Speed Lifting Main hook m/min 5.9 5.5 3.53
Aux.hook m/min 13.2 9.23 7.2
Cross travel m/min 38.5 38.4 33.86
Long travel m/min 74.6 65 65.6
Lifting mechanism type electric winch cart
Working duty   A5,A6,A7
Power supply AC 220/380/400/415/460V,50/60Hz, 3P



Product Configuration:

1. Double box beam with steel legs moving through the ground beam as crane travelling system
2. The camber of main beam will be designed as Span*1-1.4/1000.
3. Steel Material: Q235 or Q345
4. Shot-blasting Sa2.5 for main girder and supporting beam
5. Epoxy zinc rich high quality painting.
6. Electrification and outfitting
7. Brand: CHINT SIEMENS Schneider
8. Conductor power supply: Cable Reel or busbar.



How to choose:

1. Selection of gantry crane
2. Span and cantilever length
3. The principle of determining the wheelbase
4. The gantry crane spacing size is determined



Pictures of related products:

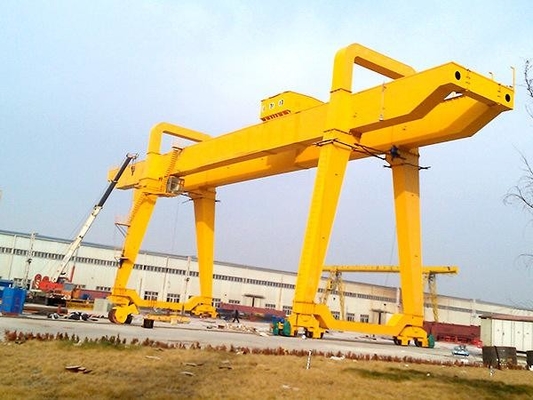

Customized Outdoor Double Girder Gantry Crane 50/10 Ton To 100/20 Ton 0

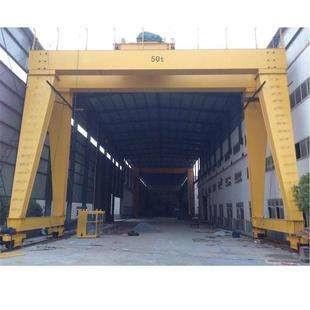

Customized Outdoor Double Girder Gantry Crane 50/10 Ton To 100/20 Ton 1
