Product Details:
|
| Name: | Single Scissor Small Hydraulic Lifting Platform | Keywords: | Hydraulic Lifting Table |
|---|---|---|---|
| Type: | Single Scissor Small Lifting Table | Max. Lifting Height: | 1 M |
| Capacity: | 1000 Kg | Application: | Workshop,Warehouse,factory |
| High Light: | 1000kg Hydraulic Manual Scissor Lift Table,Manual Scissor Lift Table Rustproof,scissor lift table 1000kg Rustproof |
||

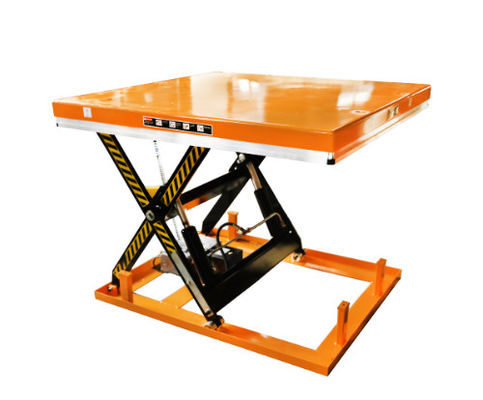

Single Scissor Small 1000 Kg Lifting Platform Electro - Hydraulic Lifting
Single Scissor Small Hydraulic Lifting Platform Introduction:
Hydraulic lift tables are extremely robust and reliable machines. Hydraulic lift tables are used for machine feeding, work positioning, assembly, order picking, pallet loading and a wide range of other applications.
Single Scissor Small Hydraulic Lifting Platform Technical Parameter:
| Lifting Capacity (kg) | Minimum height(mm) | Max.height(mm) | Total Dimension (mm) | Wheel diameter(mm) | Body length(mm) | Self Weight (kg) |
| 350 | 280 | 900 | 815*500*50 | 125 | 880 | 70 |
| 500 | 280 | 900 | 815*500*50 | 125 | 880 | 80 |
| 350 | 350 | 1300 | 915*500*50 | 125 | 980 | 105 |
| 350 | 350 | 1500 | 915*500*50 | 125 | 980 | 110 |
| 500 | 370 | 1300 | 915*500*50 | 125 | 980 | 112 |
| 500 | 370 | 1500 | 915*500*50 | 125 | 980 | 120 |
| 200 | 450 | 2000 | 920*670*50 | 125 | 980 | 148 |
Single Scissor Small Hydraulic Lifting Platform Advantage:
Optional configurations for fixed lifts include artificial hydraulic power, movable flaps that are convenient to overlap with surrounding facilities, rolling or motorized roller tables, safety touch strips to prevent feet from being rolled, organ-type safety shields, and manual or motorized rotary workbenches , Hydraulic overturning table, safety support bar to prevent the elevator from falling, stainless steel safety net, electric or hydraulic elevator walking power system, universal ball table.
Single Scissor Small Hydraulic Lifting Platform Application:
Hydraulic scissor lift table is an important part of the field of material handling, and it is one of the professional high-altitude operation equipment. The scissor lift table is mainly used to transport goods from one working level to another, and it can be installed on the ground or in a pit.
Single Scissor Small Hydraulic Lifting Platform Details:
