Product Details:
|
| Name: | Single Scissor Fixed Hydraulic Lift Table | Keywords: | Hydraulic Lifting Table |
|---|---|---|---|
| Max. Lifting Height: | 1000mm | Control Method: | Hand Control |
| Max. Lifting Load: | 1Ton | Application: | Workshop |
| High Light: | 1000mm Fixed Scissor Lift Platform,GOST Fixed Scissor Lift Platform,1000mm electric hydraulic lift table |
||

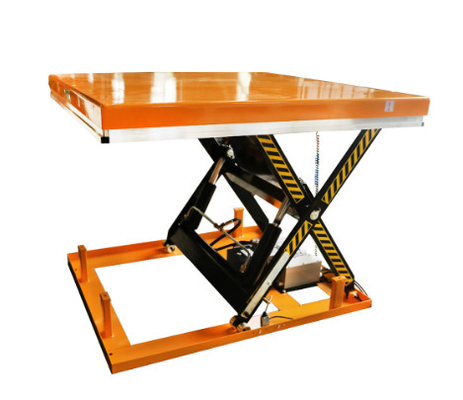

Max Height 1000mm Single Scissor Fixed Hydraulic Lift Table Hand Control
Single Scissor Fixed Hydraulic Lift Table Introduction:
Hydraulic lift tables are extremely robust and reliable machines. Hydraulic lift tables are used for machine feeding, work positioning, assembly, order picking, pallet loading and a wide range of other applications.
Single Scissor Fixed Hydraulic Lift Table Technical Parameter:
| Lifting Capacity (kg) | Minimum height(mm) | Max.height(mm) | Total Dimension (mm) | Wheel diameter(mm) | Body length(mm) | Self Weight (kg) |
| 350 | 280 | 900 | 815*500*50 | 125 | 880 | 70 |
| 500 | 280 | 900 | 815*500*50 | 125 | 880 | 80 |
| 350 | 350 | 1300 | 915*500*50 | 125 | 980 | 105 |
| 350 | 350 | 1500 | 915*500*50 | 125 | 980 | 110 |
| 500 | 370 | 1300 | 915*500*50 | 125 | 980 | 112 |
| 500 | 370 | 1500 | 915*500*50 | 125 | 980 | 120 |
| 200 | 450 | 2000 | 920*670*50 | 125 | 980 | 148 |
Single Scissor Fixed Hydraulic Lift Table Standard Safety Features:
1. The upper platform is lifted with an aluminum safety bar to prevent falling when touching obstacles.
2. Low voltage (24V) control box with up and down buttons.
3. The internal power unit is equipped with an anti-overload safety valve and a compensating flow valve to control the descending speed.
4. Heavy-duty oil cylinder with drainage system and check valve can stop the lift table from going down when the hose bursts.
5. Safety gap between scissors to prevent pinching during operation.
6. With explosion-proof valve
7. With safety shield
8. Up travel limit switch stops the table at the maximum height to reduce motor wear
9. The product complies with EN norms and ANSI/ASME safety standards.
Single Scissor Fixed Hydraulic Lift Table Details:
