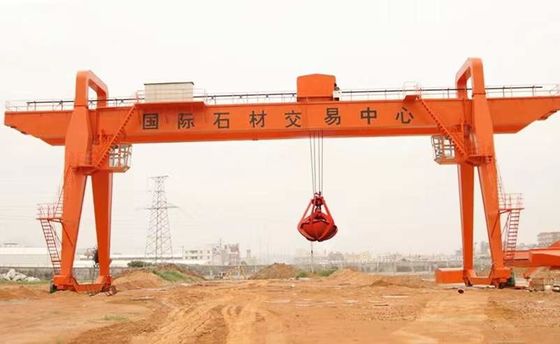

Heavy Duty MZ Double Girder Gantry Crane 10 Ton Electric Hoist Grab Bridge Crane

Heavy Duty MZ Double Girder Gantry Crane 10 Ton Electric Hoist Grab Bridge Crane
Heavy Duty MZ Double Girder Gantry Crane 10 Ton Electric Hoist Grab Bridge Crane Heavy Duty MZ Double Girder Gantry Crane 10 Ton Electric Hoist Grab Bridge Crane

Large Image :  Heavy Duty MZ Double Girder Gantry Crane 10 Ton Electric Hoist Grab Bridge Crane

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 45 workdays
Payment Terms: L/C, T/T
Supply Ability: 500 sets per year

Heavy Duty MZ Double Girder Gantry Crane 10 Ton Electric Hoist Grab Bridge Crane

Description
Keywords: Double Girder Hook Gantry Crane Span: 5-40m Or On Request
Certification: CE Max. Lifting Height: 9m,12m,6m
Lifting Load: 16 / 3.2T Power Source: 3 Phase 380V 50hz Or Accord Your Requirements
Crane Feature: Easy Operated Girder Bridge Crane Application: Warehouse Loading And Unloading Materials
High Light:

MZ Double Girder Gantry Crane

,

Double Girder Gantry Crane 10 Ton

,

Electric Hoist Grab Bridge Crane

Heavy Duty MZ Double Girder Grab Gantry Crane 10 Ton Electric Hoist


Double Girder Gantry Crane Introduction:


  • Product Name: double girder hydraulic grab gantry crane
  • Capacity: 10t, 20/5t, 32/5t, 50/10t, or other
  • Lifting Height: 10m, 12m or other
  • Span: 18~35m, 18~26m, 26~35m, or other
  • Work Duty: A5
  • The double girder hydraulic grab goliath crane adopts modularization design for lifting mechanism with light weight, alloy-steel forging wheels and intelligent control.


Double Girder Gantry Crane Technical Parameter:



Lifting Weight 10 16 20/10 32/10 36/16 50/10
Span (m) 18/22/26/30/35 18/22 30 18/22/26/30/35 22/26 22/26/30/35 32
Lifting Height Primary 11.5 10.5 12 10.5 11.5 11.5 12
Secondary     11 12 12 13
Working Duty   A5 A5~A6 A5 A5~A6 A5~A6
Speed Lift Primary (m/min) 18.4 12.3 9.2 10.4 10.4 6
Secondary     13.2 13.2 12.3 18
Travel Handcart 43.8 44.5 44.5 41.9 51 38.13
Cart 54.6 48.4 51.2 49.1 51.2 48 51.2 51.2 51.2 43.8
Steel Track (Kg/m) 43 50


Advantages:


1. Module control speed, micro-speed and double speed;
2. Traveling and lifting smoothly;
3. The power for trolley moving adopts flat cable, sliding smoothly;
4. Control box layout is reasonable, easy to repair;
5. Protection class IP55;
6. Optional main power source ;
7. All external cable line number with mark;
8. Safety smooth touch line, high conductivity, small pressure drop;
9. Light weight, installation convenience;
10. Set electric taxi speed is high, ensure continuing power supply;

11. Optional speed control module, and can realize the micro speed and double speed.



How to choose:

1. Selection of gantry crane
2. Span and cantilever length
3. The principle of determining the wheelbase
4. The gantry crane spacing size is determined
Heavy Duty MZ Double Girder Gantry Crane 10 Ton Electric Hoist Grab Bridge Crane 0

Heavy Duty MZ Double Girder Gantry Crane 10 Ton Electric Hoist Grab Bridge Crane 1

If you want to order this gantry crane, Pls tell me the details as follows:



1. The Max. lifting capacity? (Ton)
2. The span of gantry crane?(the distance of rail to rail center)
3. Do you need cantilevers at two beam ends? if it is, Pls mention the length per side.
4. The Max. lifting height of hook? (or total height of crane)
5. What type meterial will you to lift?
6. The power source standard?(380V, 50Hz, 3phase or others)
