Single Girder 10T Gantry Crane

Single Girder 10T Gantry Crane
Single Girder 10T Gantry Crane Single Girder 10T Gantry Crane

Large Image :  Single Girder 10T Gantry Crane

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 30 workdays
Payment Terms: L/C, T/T
Supply Ability: 5000 sets per year

Single Girder 10T Gantry Crane

Description
Keywords: Single Girder Gantry Crane Condition: New
Feature: Gantry Crane Span: 5-40m Or On Request
Max. Lifting Load: 10 Ton Max. Lifting Height: 9m,12m,6m
Control Method: Wireless Remote Control,Ground Control Power Source: 3 Phase 380V 50hz Or Accord Your Requirements
Application: Workshop,Warehouse,factory
High Light:

Single Girder 10T Gantry Crane

,

Wireless Remote Control 10t Gantry Crane

,

10Ton Warehouse Gantry Crane

10t Wireless Remote Control Single Girder Gantry Crane For Warehouse



Introduction:



The upper bridge frame of the gantry crane (including the main beam and the end beam), the outriggers, the lower beam and other parts are composed. In order to expand the working range of the crane, the main beam can extend beyond the outriggers to one or both sides to form a cantilever. A hoisting trolley with a jib can also be used to expand the crane's operating range through the pitch and rotation of the jib.



It is mainly used for the loading and unloading of outdoor cargo yards, stockyards and bulk cargoes. Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port cargo yards.



Technical Parameter:



Capacity T 3 5 10 16 20
Span m 12,16,20,24,30
Operational method   Pendent Line With Press Button /Cabin/ Remote
Speed Lifting



m/min

8 ,8/0.8 8,8/0.8 7,7/0.7 3.5 3.5
Cross travelling 20 20 20 20 20
Long travelling Ground 20 20 20 20 20
Cabin 20, 30,45 20, 30,40 30,40 30,40 30,40
Motor Lifting Type /kw ZD41-4/4.5
ZDS1-4/0.4/4.5
ZD141-4/7.5 ZDS10.8/4.5 ZD151-4/13 ZDS11.5/4.5 ZD151-4/13 ZD152-4/18
Cross travelling ZDY12-4/0.4 ZDY121-4/0.8 ZDY21-4/0.8×2 ZDY121-4/0.8×2 YZD-4/0.8×4
Long travelling Ground ZDY21-4/0.8×2
ZDY21-4/1.5×2
YZY22-4/1.5×2
YZR132M2-6/3.7×2
YZR22-4/1.5×2 YZR160M1-6/6.3×2
YZR160M2-6/8.5×2
YZR160M1-6/6.3×2
YZR160M2-6/8.5×2
Cabin ZDR100-4/1.5×2
ZDR112-4/2.1×2
YZR112L1-4/2.1×2
YZR160M1-6/2.1×2
YZR112L1-4/2.1×2
YZR160M2
YZR160M2-6/8.5×2
YZR160L2-6/11×2
YZR160M2-6/8.5×2
YZR160L2-6/11×2
Electric hoist Model CD1/MD1 CD1/MD1 CD1/MD1 CD1 HC
Lifting height m 6,9
Working duty   A3
Power supply   380V 60HZ 3phase AC (According to your demand )



Constituent parts:



According to the industry standard GB/T14406, the gantry crane is mainly composed of the following components


1. Cylindrical wheel
2. Buffer
3. Block brake
4. Steel wire rope
5. Lifting hook
6. Driver's cab
7. Reducer
8. Casting pulley
9. Casting reel
10. Motor
11. Electronic control equipment



Advantages:



1. Module control speed, micro-speed and double speed;

2. Traveling and lifting smoothly;

3. The power for trolley moving adopts flat cable, sliding smoothly;

4. Control box layout is reasonable, easy to repair;

5. Protection class IP55;

6. Optional main power source ;

7. All external cable line number with mark;

8. Safety smooth touch line, high conductivity, small pressure drop;

9. Light weight, installation convenience;

10. Set electric taxi speed is high, ensure continuing power supply;

11. Optional speed control module, and can realize the micro speed and double speed.



Photos:

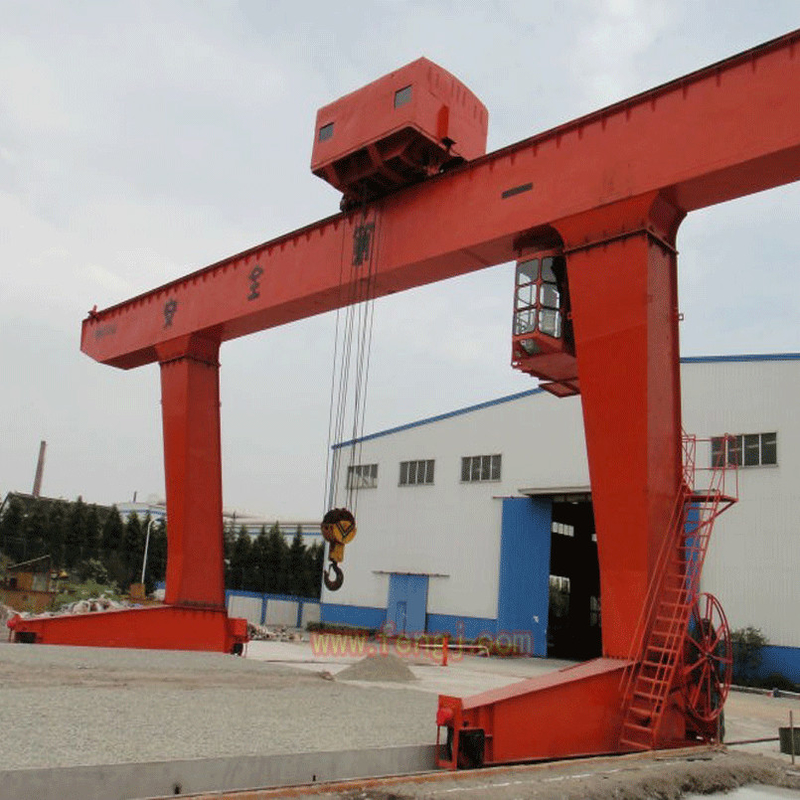

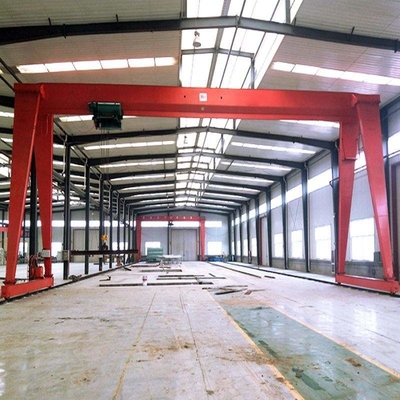

Single Girder 10T Gantry Crane 0Single Girder 10T Gantry Crane 1
