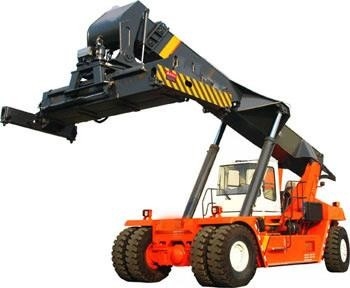

45 Tons Transport Container Reach Stacker Anti Rollover Rotating Telescopic Handler

45 Tons Transport Container Reach Stacker Anti Rollover Rotating Telescopic Handler
45 Tons Transport Container Reach Stacker Anti Rollover Rotating Telescopic Handler 45 Tons Transport Container Reach Stacker Anti Rollover Rotating Telescopic Handler 45 Tons Transport Container Reach Stacker Anti Rollover Rotating Telescopic Handler

Large Image :  45 Tons Transport Container Reach Stacker Anti Rollover Rotating Telescopic Handler

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 30 workdays
Payment Terms: L/C, T/T
Supply Ability: 10000 sets per year

45 Tons Transport Container Reach Stacker Anti Rollover Rotating Telescopic Handler

Description
Product Name: Container Reach Stacker Type: Telescopic Handler
Condition: New Loading Capacity: 45 Tons
Maximum Descent Speed (No Load/Full Load): 360/300mm/s Maximum Lifting Speed (No Load/Full Load): 420/250mm/s
Gradeability (No Load/Full Load): 39/32% Hydraulic System Working Pressure: 260bar
High Light:

45Tons Container Reach Stacker

,

Transport Container Reach Stacker

,

Anti Rollover Rotating Telescopic Handler

45 Tons Container Transport Reach Stacker Telescopic Handler



Reach Stacker Features:



  • Select VOLVO/CUMMINS and other world brand engines, reliable quality and strong power
  • Comfortable operating environment, centralized operating handle has good micro-movement performance, easy to achieve millimeter-level precision control
  • Each action of the attachment adopts proportional control, giving you a man-machine integrated operation experience
  • The whole machine has the boom vertical lifting technology, the bulk container loading and unloading technology, the multi-action linkage function, the operation speed is fast, and the operation efficiency is high.
  • Sino-German joint design, using a fully digital prototype design system, through finite element analysis, kinematics, dynamic simulation calculations and rigorous fatigue, vibration and other tests to ensure the reliability of the whole machine structure
  • With dynamic anti-rollover protection technology, spreader rotation anti-collision technology, reverse automatic braking technology, complete machine fire prevention technology, solid tire flexible shock absorption technology, etc., the whole machine is safe and reliable



Reach Stacker Structure:


The container front crane is composed of three parts: construction machinery chassis, telescopic boom and container spreader.

  • The chassis has engine, power shift gearbox, front axle, rear axle, steering system, cab, frame, counterweight, wheels and other components;
  • The telescopic boom has telescopic cylinder, pitch cylinder, boom and other components;
  • The container crane has a rotating mechanism, an upper frame, a connecting frame, a bottom frame, a telescopic frame, a telescopic cylinder, an anti-sway cylinder, a side-shifting cylinder, a twist-locking cylinder and other components.



Reach Stacker Performance parameters:



Basic Configuration Engine Model VOLVO TAD1151 Engine Rated Power/Speed 265/2100kW/rpm
Engine Maximum Torque 1780/1260N·m/rpm Exhaust Emission Standard Ⅲ阶段
Transmission Model DANA 15.5HR36000 Drive Axle Model Kessler D102PL341
Tire 18.00-25 40PR
Spreader Model Number SDJ450FA Sideshift Distance ±800mm
Rotation Angle +105/-195° Tilt Angle
Dead Weight 7.8t
Boom Maximum Lift Height 15100mm Inclination 0~60°
Machine Parameters Whole Vehicle Quality 72t Overall Length 11340mm
Overall Width 6053-12185mm Overall Height 4770mm
Wheelbase 6000mm Minimum Ground Clearance 350mm
Front Wheelbase 3033mm Rear Wheelbase 2790mm
Performance Parameters Rated Load 45t Maximum Lifting Speed (No Load/Full Load) 420/250mm/s
Maximum Descent Speed (No Load/Full Load) 360/300mm/s Maximum Form Speed (No Load/Full Load) 25/21km/h
Gradeability (No Load/Full Load) 39/32% Hydraulic System Working Pressure 260bar
40' Container Aisle Width A2 13600mm 40' Container Aisle Width A2 11300mm



Reach Stacker Workflow:



  • Unload the container on the truck;
  • Stack the containers high in the container yard;
  • Grab the container and move it to the desired place;
  • Load the container from the yard to the car.

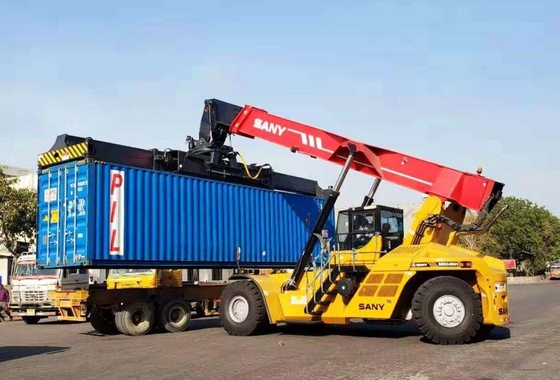

Reach Stacker Photos:



45 Tons Transport Container Reach Stacker Anti Rollover Rotating Telescopic Handler 0
