Product Details:
|
| Product Name: | Container Reach Stacker | Type: | Telescopic Handler |
|---|---|---|---|
| Condition: | New | Loading Capacity: | 45 Tons |
| Maximum Descent Speed (No Load/Full Load): | 360/300mm/s | Maximum Lifting Speed (No Load/Full Load): | 420/250mm/s |
| Gradeability (No Load/Full Load): | 39/32% | Hydraulic System Working Pressure: | 260bar |
| High Light: | Heavy Duty Spreader Reach Stacker 20ft,20ft 40ft container stackers,GOST 40ft Container Lifting Equipment |
||
Heavy Duty 45 Tons Container Transport Reach Stacker , Container Lifting Equipment
Reach Stacker Introduction:
The container reach crane, referred to as the reach crane, is commonly known as the container reach stacker or the reach stacker. The container reach crane is a kind of crane used to load and unload containers, which belongs to a kind of lifting equipment, and can also be said to be a mobile machine. Container reach cranes are specially designed for 20-foot and 40-foot international containers, and are mainly used for container stacking and horizontal transportation in terminals and stackyards. It has the advantages of low pressure, high stacking layers, and high utilization rate of the stacking plant. Cross-box operation is possible. It is especially used for container loading and unloading in small and medium ports, railway stations and highway stations, and can also be used as auxiliary equipment in large container terminals.
Reach Stacker Performance parameters:
| Basic Configuration | Engine Model | VOLVO TAD1151 | Engine Rated Power/Speed | 265/2100kW/rpm |
| Engine Maximum Torque | 1780/1260N·m/rpm | Exhaust Emission Standard | Ⅲ阶段 | |
| Transmission Model | DANA 15.5HR36000 | Drive Axle Model | Kessler D102PL341 | |
| Tire | 18.00-25 40PR | |||
| Spreader | Model Number | SDJ450FA | Sideshift Distance | ±800mm |
| Rotation Angle | +105/-195° | Tilt Angle | 0° | |
| Dead Weight | 7.8t | |||
| Boom | Maximum Lift Height | 15100mm | Inclination | 0～60° |
| Machine Parameters | Whole Vehicle Quality | 72t | Overall Length | 11340mm |
| Overall Width | 6053-12185mm | Overall Height | 4770mm | |
| Wheelbase | 6000mm | Minimum Ground Clearance | 350mm | |
| Front Wheelbase | 3033mm | Rear Wheelbase | 2790mm | |
| Performance Parameters | Rated Load | 45t | Maximum Lifting Speed (No Load/Full Load) | 420/250mm/s |
| Maximum Descent Speed (No Load/Full Load) | 360/300mm/s | Maximum Form Speed (No Load/Full Load) | 25/21km/h | |
| Gradeability (No Load/Full Load) | 39/32% | Hydraulic System Working Pressure | 260bar | |
| 40' Container Aisle Width A2 | 13600mm | 40' Container Aisle Width A2 | 11300mm |
Reach Stacker effect:
The container reach crane has a retractable and left-right rotating container spreader, which can be used for 20-foot and 40-foot container loading and unloading operations. When hoisting a container, the reach stacker does not have to be perpendicular to the container, but can operate at an angle with the container. After lifting, the spreader can be rotated to pass through narrow passages. At the same time, the spreader can be moved 800mm left and right to facilitate the box alignment during hoisting and improve work efficiency. For freight stations with poor site conditions, the reach crane can also work normally.
The telescopic boom can be loaded and luffed. The take-off and landing of the container is completed by the boom telescopic and luffing. When the boom is extended and the pitching cylinder is extended, the lifting speed is faster, and it is locked at the same time when falling. Enter, you can get a faster descent speed. During operation, the whole vehicle can be moved, luffed, and boom telescopic at the same time, with high work efficiency.

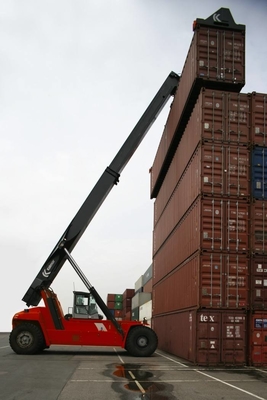

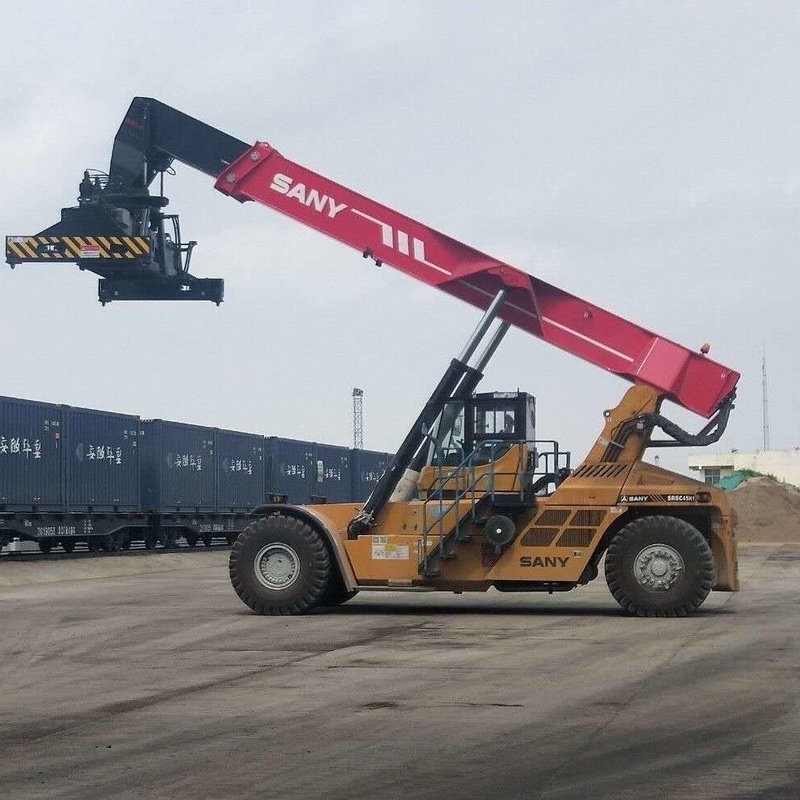

Reach Stacker Photos:
