|Features:||Fast Charging Easy To Maintain||Product Name:||Container Reach Stacker|
|Loading Capacity:||45 Tons||Maximum Descent Speed (No Load/Full Load):||360/300mm/s|
|Maximum Lifting Speed (No Load/Full Load):||420/250mm/s||Gradeability (No Load/Full Load):||39/32%|
|Hydraulic System Working Pressure:||260bar||Application:||Container Stacking And Horizontal Transport|
Descent Speed 360mm/S Reach Stacker,
Descent Speed 300mm/S Reach Stacker,
Horizontal Transport electric reach stacker
Fast Charging Easy To Maintain Container Reach Stacker For Container Stacking And Horizontal Transport
Reach Stacker Introduction:
The container front crane has a telescopic boom, which can be luffed with load. The take-off and landing of the container is completed by the boom extension and luffing. When the boom is extended and the pitching cylinder is extended, the lifting speed is faster. Lock in at the same time when descending to get a faster descending speed. During operation, the whole vehicle can be moved, luffed, and boom telescopic at the same time, with high work efficiency.
Reach Stacker Structure:
The container front crane consists of three parts: construction machinery chassis, telescopic boom, container spreader, etc. The chassis has engine, power shift gearbox, front axle, rear axle, steering system, cab, frame, counterweight, wheels, etc. Components; telescopic booms include telescopic cylinders, pitching cylinders, booms and other components; container cranes have rotating mechanisms, upper racks, coupling frames, bottom frames, telescopic racks, telescopic cylinders, anti-sway cylinders, side-shifting cylinders, spinlock cylinders and other components .
Reach Stacker Performance parameters:
|Basic Configuration||Engine Model||VOLVO TAD1151||Engine Rated Power/Speed||265/2100kW/rpm|
|Engine Maximum Torque||1780/1260N·m/rpm||Exhaust Emission Standard||Ⅲ stage|
|Transmission Model||DANA 15.5HR36000||Drive Axle Model||Kessler D102PL341|
|Spreader||Model Number||SDJ450FA||Sideshift Distance||±800mm|
|Rotation Angle||+105/-195°||Tilt Angle||0°|
|Boom||Maximum Lift Height||15100mm||Inclination||0～60°|
|Machine Parameters||Whole Vehicle Quality||72t||Overall Length||11340mm|
|Overall Width||6053-12185mm||Overall Height||4770mm|
|Wheelbase||6000mm||Minimum Ground Clearance||350mm|
|Front Wheelbase||3033mm||Rear Wheelbase||2790mm|
|Performance Parameters||Rated Load||45t||Maximum Lifting Speed (No Load/Full Load)||420/250mm/s|
|Maximum Descent Speed (No Load/Full Load)||360/300mm/s||Maximum Form Speed (No Load/Full Load)||25/21km/h|
|Gradeability (No Load/Full Load)||39/32%||Hydraulic System Working Pressure||260bar|
|40' Container Aisle Width A2||13600mm||40' Container Aisle Width A2||11300mm|
Reach Stacker Features:
1. Long battery life
Self-replenishing power, the range extender is turned on, to meet all-weather operations.
Potential energy recovery technology, the descending process can give back electric energy and improve the battery life.
High efficiency and low consumption, optimized hydraulic system design, low pressure loss, direct motor drive, high efficiency.
2. High efficiency
Smart and comfortable, improve action responsiveness, reduce material buttons, and apply new handles to improve operating comfort.
High-voltage system failure ≤ 5, add emergency mode.
3. Fast charging
Easy to maintain, the range extender is arranged on the right side for easy maintenance, and it is mature and reliable after batch verification in the market, which is beneficial for customers to deploy equipment.

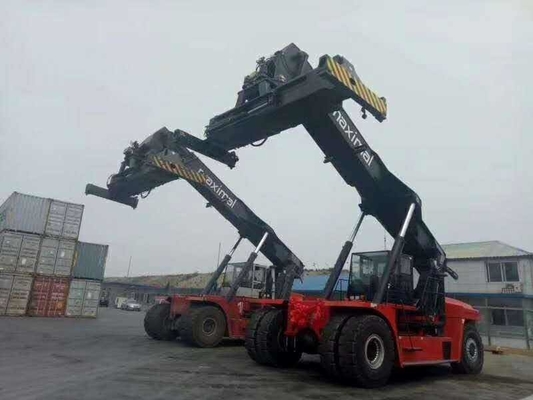

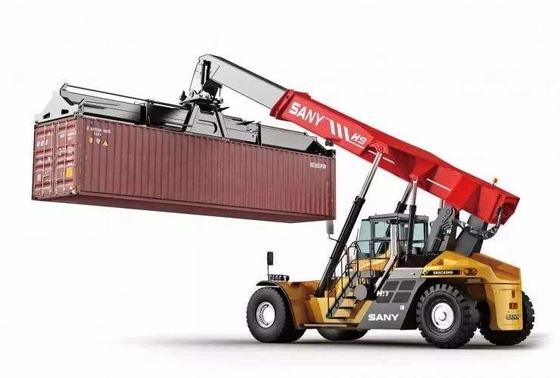

Reach Stacker Photos:
