|Product Name:||Cantilever Bucket Wheel Stacker And Reclaimer||Feature:||Bucket Wheel Stacker And Reclaimer|
|Stacking And Reclaiming Capacity:||200-11000 T/h||Span:||20-60m|
|Usage:||Electricity , Metallurgy Coalbuilding Materials, Chemical And Other Industries||Application:||Strip Materials Yard|
Cantilever bucket wheel stacker reclaimer,
Continuous bucket wheel stacker reclaimer,
11000t/h bucket wheel reclaimer
High - Efficiency Cantilever Bucket Wheel Stacker And Reclaimer For Continuous Conveying
Cantilever Bucket Wheel Stacker And Reclaimer introduction:
Bucket wheel stacker and reclaimer refers to a high-efficiency loading and unloading machine used for continuous conveying of both stacking and reclaiming materials in large dry bulk storage yards. It is composed of a belt conveyor arm that can tilt and swing horizontally and its front bucket wheel, frame, and running mechanism. The belt can run in both directions. When reclaiming materials, the bucket wheel reclaims the material and sends it out through the conveying arm, and when stacking, the main conveyor The delivered goods are sent to the yard via the conveying arm.
A rail-type loading and unloading machine that uses bucket wheels to continuously reclaim materials and use belt conveyors on the machine to continuously stack materials. It is a special machine in the bulk material (bulk material) storage yard, which is evolved on the basis of bucket wheel excavators. The storage yard transportation mechanization system is formed, and the production capacity can reach more than 10,000 tons per hour. The operation of the bucket wheel stacker and reclaimer has strong regularity and is easy to realize automation. There are manual, semi-automatic and automatic control modes.
Cantilever Bucket Wheel Stacker And Reclaimer Basic Structure:
Cantilever bucket wheel reclaimer mainly consists of bucket-wheel structure, cantilever belt Conveyor, metal structure on the Top, rotary table, gate seat, swing mechanism, tripper car, accessory structure, rail system, lubrication system, control room.
Cantilever Bucket Wheel Stacker And Reclaimer Specification:
Cantilever Bucket Wheel Stacker And Reclaimer Operation mode:
It has two operation modes of stacking and reclaiming. The bulk material transported by the belt conveyor is unloaded to the belt conveyor on the boom by the tail truck, and is dumped from the front end of the boom to the material yard. Through the operation of the whole machine, the rotation and pitch of the boom can make the material pile form a neat shape of trapezoidal section. Reclaiming is realized continuously through the rotation of the boom and the rotation of the bucket wheel. The material is unloaded to the reverse-running boom belt conveyor through the unloading plate, and then unloaded to the material yard belt conveyor through the hopper below the center of the machine to be transported away. Through the operation of the whole machine, the rotation and pitch of the boom can make the bucket wheel take out the material in the storage pile.

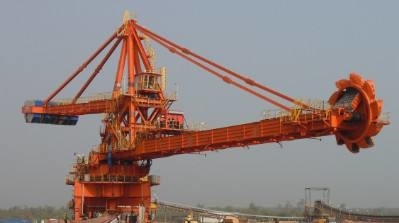

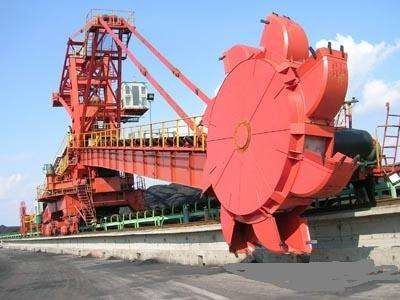

Cantilever Bucket Wheel Stacker And Reclaimer Photos:
