High Strength Q345 C Type Lifting Hook Overhead Crane Spare Parts

High Strength Q345 C Type Lifting Hook Overhead Crane Spare Parts
High Strength Q345 C Type Lifting Hook Overhead Crane Spare Parts High Strength Q345 C Type Lifting Hook Overhead Crane Spare Parts

Large Image :  High Strength Q345 C Type Lifting Hook Overhead Crane Spare Parts

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 30 workdays
Payment Terms: L/C, T/T
Supply Ability: 60000 sets per year

High Strength Q345 C Type Lifting Hook Overhead Crane Spare Parts

Description
Product Name: Lifting Hook Keyword: Crane Hook Set
Type: Single Hook Material: Carbon Steel, FORGED STEEL, Q345
Lfting Capacity: 1 Ton- 100ton Feature: Durable
Usage: Crane Component Standard: FEM/DIN
High Light:

Q345 C Type Lifting Hook

,

100ton C Type Lifting Hook

,

Q345 Overhead Crane Spare Parts

High Strength C Type Lifting Hook Overhead Crane Spare Parts



Lifting Hook Introduction:



Ladle hook for sale. Ladle hook is one of the best selling of crane hooks, which is designed for ladle crane, with high crane safety standards. The ladle hook is one special hook used to lifting steel ladle which have high requirement for the design and manufacture. The Ladle hooks are mainly used for the lifting of middle tanks, hot metal tanks, and ladles of various steel mills. Their structure is simple, they are easy to operate, and they are safe and reliable.



The custom designed heavy duty ladle hook ensures safety and efficiency. The beam body is made of high-quality and low-carbon alloy steel with high strength and high temperature resistance. The hook body is made of steel plate riveted with high strength and flexibility. At the same time, the hook body can be rotated freely around the front and rear, so it is easy to hook.



Lifting Hook Specification:



Crane forging hook

  1. Capacity: 1- 500t

  2. Pulley: 1- 12 pulley,

  3. use on overhead, gantry cranes and all kinds hoist,

  4. strength grade: M, P, S, T, V grade

Materials:

  • M grade with DG20, or DG20Mn

  • P grade with DG20Mn

  • S grade with DG34CrMo

  • T grade below 40t with DG34CrMo, more than 40t with DG34CrNiMo or DG30Cr2Ni2Mo

  • V grade below 40t with DG34CrNiMo or DG30Cr2Ni2Mo, more than 40t with DG30Cr2Ni2Mo.

Model:

  • Single hook: 5t/6t/10t/12t/16t/20t/25t/32t/40t/50t/63t/80t/100t/125t/160t/200t/250t

  • Double hook: 10t/12t/16t/20t/25t/32t/40t/50t/63t/80t/100t/125t/160t/200t/250t/450t

  • Hook Block model: 3.2t/ 5t/10t/16t/20t/25t/32t/50t/75t/100t/200t and so on



Lifting Hook Main Features:



1. Laminated, riveted and welded steel hooks designed to AIST Standard No. 7 Hardened steel pins

2. Forged steel or fabricated chase blocks and pins

3. Removable wear strips and bronze bushings

4. Palm bushings protect the paper roll or ladle trunion from wear

5. Radial key retains the palm bushings in place

6. Body bound high-strength shoulder bolts are utilized in place of the current practice of rivets. The quantity of bolts meets

7. Reuse of existing riveted ladle hook plates can be performed by installing larger body bound bolts sized for each specific application

8. Dismantling and subsequent repair of bolted ladle hooks is much easier than for riveted hooks, reducing the overall cost

9. Current experience with bolted ladle hooks has resulted in an expected service life increase of 4 to 5 times that of riveted hooks

10. Torqued high-strength bolts pull laminated plates tighter together than the existing practice of rivet installation

11. Body bound bolts do not allow shifting between plates. By comparison, holes for rivets are 1/16" greater in diameter than the nominal diameter of the rivet.

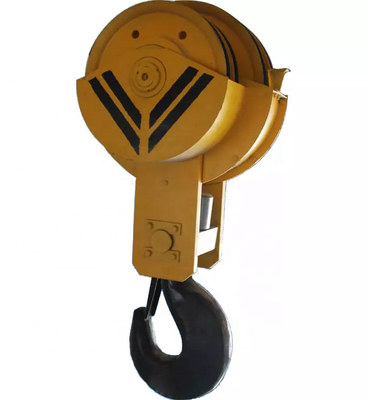

Lifting Hook Photos:



High Strength Q345 C Type Lifting Hook Overhead Crane Spare Parts 0
