Industrial Single Girder Semi Gantry Crane 20 Ton Rail Mounted RMG Crane

Industrial Single Girder Semi Gantry Crane 20 Ton Rail Mounted RMG Crane
Industrial Single Girder Semi Gantry Crane 20 Ton Rail Mounted RMG Crane Industrial Single Girder Semi Gantry Crane 20 Ton Rail Mounted RMG Crane

Large Image :  Industrial Single Girder Semi Gantry Crane 20 Ton Rail Mounted RMG Crane

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 30 workdays
Payment Terms: L/C, T/T
Supply Ability: 5000 sets per year

Industrial Single Girder Semi Gantry Crane 20 Ton Rail Mounted RMG Crane

Description
Keywords: Single Beam Gantry Crane Typt: Rail - Mounted Gantry Crane
Feature: Large Operating Range Span: 5m - 35m
Max. Lifting Load: 20 Ton Working Duty: A5
Control Method: Wireless Remote Control,Ground Control Application: Customized According To Site Construction Requirements
High Light:

Single Girder Semi Gantry Crane 20T

,

Industrial Semi Gantry Crane 20 Ton

,

20T Rail Mounted RMG Crane

A5 Rail - Mounted Semi Gantry Crane Single Girder 20 Tons For Industrial Production



Introduction:



Rail-mounted semi gantry crane 20 tons for workshop light crane is composed of bridge, support legs, crane travelling organ, trolley, electric equipment,strong lifting winch. The frame adopts box-type welding mechanism. Crane travellilng mechanism adopts separate driver. All mechanisms are operated in the driver cabin. Power is supplied by cable or slide wire. there are different capacity Mini Semi gantry crane for your choice according to your different use.



Technical Parameter:



lifting capacity (t) 2 3 5 10
span (m) 10 12 16 20
lifting height (m) 6 6/9 6/9 9
travelling mechanism travelling speed (m/min) remote control 20
cabin 20
lifting mechanism lifting speed (m/min) 0.7/7 0.7/7 0.7/7 0.6/6
  travelling speed (m/min) 20 20 20 20
working duty A5

Industrial Single Girder Semi Gantry Crane 20 Ton Rail Mounted RMG Crane 0



Working Condition:



• Working temperature: -25-50°C

• Power supply:AC type 380V/3Ph/50Hz or according to your requirements

• Working class:A3~A5



If the working condition is very hard,please notice us in advance,we will redesign the unit according to your condition and request.



Application:



Semi-gantry cranes are so-called single-leg cranes that are ideal for providing material handling solutions in facilities where space is an issue due to machinery, narrow spacing or confined spaces.

  • Workshop, Concrete plant, all factories etc
  • For assembly, loading, unloading area etc
  • Run on the rail to cover whole area

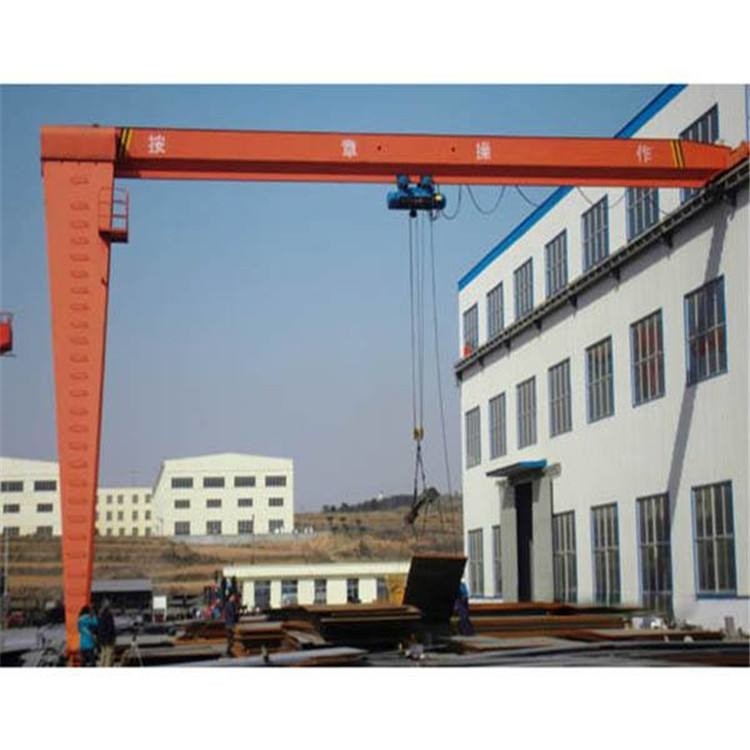

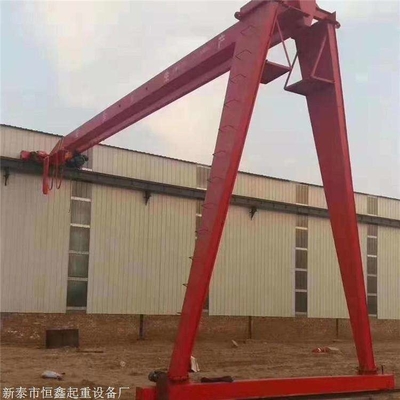

Photo:



Industrial Single Girder Semi Gantry Crane 20 Ton Rail Mounted RMG Crane 1
