2-6m Span 500KG Double Arm Jib Crane 360 Degree Slew Angle

2-6m Span 500KG Double Arm Jib Crane 360 Degree Slew Angle
2-6m Span 500KG Double Arm Jib Crane 360 Degree Slew Angle 2-6m Span 500KG Double Arm Jib Crane 360 Degree Slew Angle

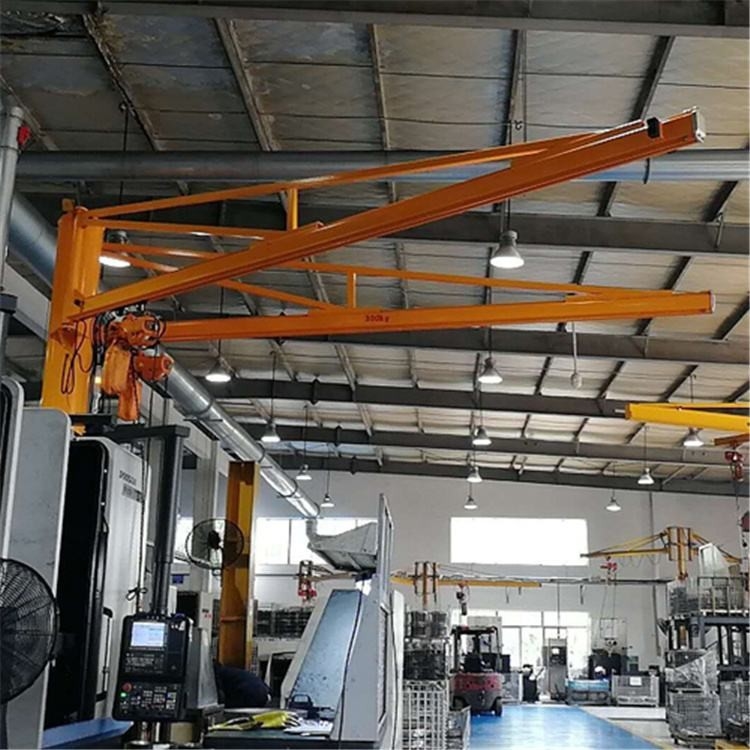

Large Image :  2-6m Span 500KG Double Arm Jib Crane 360 Degree Slew Angle

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 30 workdays
Payment Terms: L/C, T/T
Supply Ability: 60000 sets per year

2-6m Span 500KG Double Arm Jib Crane 360 Degree Slew Angle

Description
Product Name: Double Arm Jib Crane Other Name: Double Boom Jib Crane
Capacity: 500KG Lifting Height: 3m
Span: 2-6m Feature: Flexible Extension Operation
Hoisting Mechanism: Electric Wire Rope Hoists & Chain Hoists Application: Production Or Maintenance
High Light:

500KG Double Arm Jib Crane

,

6m Span Double Arm Jib Crane

,

2m Span jib boom crane

Double Arm Jib Crane Two Sets Of Jibs Act Independently Widely Used In Factories



Introduction:



Double boom jib crane is a new product designed and developed by Kaili Crane on the basis of single boom crane. Two sets of jibs are installed on both sides of a column, and they act independently without interfering with each other, which can save installation space and achieve the working state of using two sets of jibs at the same time.



The rotation angle of the double-arm jib crane is generally 180 degrees. It is also possible to install two sets of jibs by dislocating one column, and the installation angle will be larger.



It can be widely used in factories, mines, workshops, production lines, assembly lines, machine tools, and heavy objects lifting in warehouses and wharfs.



Safety features:



1. Overload protection: If the materials or electric current overstep the capacity, the crane;

will give a sharp warning for protection itself;

2. Rubber buffers;

3. Current overload protection system;

4. Voltage lower protection function.



Specification:



Type BZ0.25 BZ0.5 BZ1 BZ2 BZ3 BZ5 BZ8 BZ10
Lift Capacity (t) 0.25 0.5 1 2 3 5 8 10
Max. Lift Height(m) 3 3 3 3 4 4 6 8
Slew Angle(0) 360 360 360 360 360 360 360 360
Lift Speed (m/min) Normal 4;10;8 5;10;8 8 8 8 8 8 8
Slow 1;2.5;0.8 1.25;2.5 0.8 0.8 0.8 0.8 0.8 0.8
Level Travel Speed (m/min) 20 20 20 20 20 20 20 20
Slewing Speed (r/min) 0.7 0.7 0.7 0.7 0.6 0.6 0.6 0.6
Electric hoist wire rope electric hoist or chain electric hoist
Power supply 220~440V,50/60HZ,3phase or customized
Control mode Pendent pushbutton control or remote control
Above parameter just for your reference,jib crane can be customized design Max.20t according to your demands.

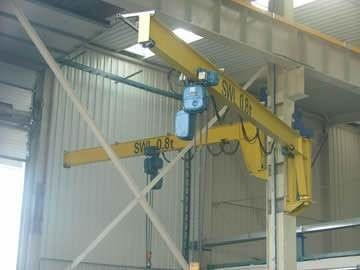

Photo:



2-6m Span 500KG Double Arm Jib Crane 360 Degree Slew Angle 0
