Product Details:
|
| Product Name: | Portal Crane | Feature: | Door Base Boom Lift Crane |
|---|---|---|---|
| Warranty: | 2 Years | Rated Loading Capacity: | 5~80t |
| Span: | 10.5~16m | Power Source: | 3-phase A.C. 50Hz 380V |
| Working Duty: | A7-A8 | Application: | Material Handling Equipment |
| High Light: | 300t Boom Lift Crane,30m Radius Boom Lift Crane,60t Crane For Material Handling |
||
300t Door Base Boom Lift Crane , 60t Crane Material Handling Equipment

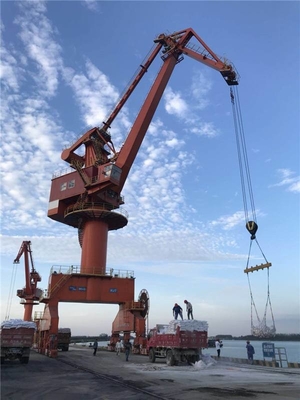

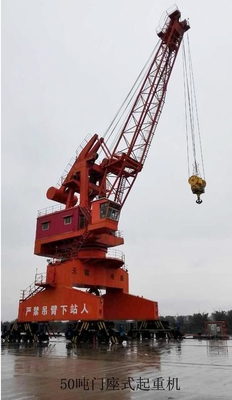

Harbour Portal Crane introduction:
Portal cranes have hoisting, slewing, luffing and running mechanisms. The first three mechanisms are installed on the rotating part and participate in the operation in each cycle. The rotating part is also equipped with a tiltable single boom or combined boom and a driver's cab. The operating mechanism is installed at the lower part of the gantry to adjust the working position of the crane. The gantry crane with bucket is also equipped with additional equipment such as telescopic funnel and belt conveyor to improve the productivity of the gantry crane when loading and unloading bulk materials with the grab bucket. In addition to electrical protection devices, safety devices such as lifting weight or lifting moment limiters and crane rail clamps are also installed.
Harbour Portal Crane Specification:
| Load Capacity (ton) |
Outreach (m) |
Lifting height above rail/under rail (m) | Gauge (m) |
| 5 | 15~25 | 15~25/10~15 | 8.0~12 |
| 10 | 15~25 | 15~25/10~15 | 8.0~12 |
| 15 | 15~25 | 15~25/10~15 | 8.0~12 |
| 20 | 20~35 | 20~35/10~15 | 9.0~12 |
| 25 | 20~35 | 20~35/10~15 | 9.0~12 |
| 30 | 20~35 | 20~35/10~15 | 9.0~12 |
| 40 | 20~50 | 20~35/10~15 | 9.0~12 |
| 50 | 20~50 | 20~35/10~15 | 9.0~12 |
| 60 | 20~50 | 20~35/10~15 | 9.0~12 |
| 80 | 30~60 | 20~50/10~15 | 9.0~12 |
| 100 | 30~60 | 20~50/10~15 | 9.0~12 |
| 120 | 30~60 | 20~50/10~15 | 9.0~12 |
| 150 | 30~60 | 20~50/10~15 | 9.0~12 |
| 200 | 30~60 | 20~50/10~15 | 9.0~12 |
| 250 | 30~60 | 20~50/10~15 | 9.0~12 |
| 300 | 30~60 | 20~50/10~15 | 9.0~12 |
| Customizable | Customizable | Customizable | Customizable |
Harbour Portal Crane Application:
Loading and unloading at port, material handling at dockyard, ship building and repairing yard, metallurgy industry. They mainly include lifting mechanism, luffing mechanism, slewing mechanism, travelling mechanism, spreader device ( grab, container, and hook), electrical equipment and other aiding devices for safety. The applied rigid rack and screw lever luffing mechanism make sure a constant working state.
