A5 A7 80 Ton Bridge Girder Launching Machine For Highway Building

A5 A7 80 Ton Bridge Girder Launching Machine For Highway Building
A5 A7 80 Ton Bridge Girder Launching Machine For Highway Building A5 A7 80 Ton Bridge Girder Launching Machine For Highway Building

Large Image :  A5 A7 80 Ton Bridge Girder Launching Machine For Highway Building

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 30 workdays
Payment Terms: L/C, T/T
Supply Ability: 5 sets per year

A5 A7 80 Ton Bridge Girder Launching Machine For Highway Building

Description
Product Name: Bridge Erection Keyword: Bridge Erection Machinery
Type: Launching Bridge Girder Erection Crane Rated Loading Capacity:: 80t
Max. Lifting Height:: Different Span: 40M
Work Duty: A5-A7 Power Source:: 3phase 380V,50Hz
Usage: Places The Prefabricated Beams On The Prefabricated Piers Application: Bridge And Highway Building
High Light:

80Ton Bridge Girder Launching Machine

,

A7 Bridge Girder Launching Machine

,

A5 A7 bridge girder machine

80Ton 40m Span Bridge Erection Machinery For Bridge And Highway Building



The introduction of bridge erection machine:



The bridge erection machine is a device that places the prefabricated beams on the prefabricated piers. The bridge erection machine belongs to the category of cranes, because its main function is to lift the beam pieces, and then transport them to the position and then lower them. A bridge erecting machine is very different from a crane in the general sense. The required conditions are harsh, and there are beams running on the beam, or longitudinal movement. Bridge erection machine is divided into erecting highway bridges, conventional railway bridges, passenger railway bridges and so on.



Bridge Erecting Machine Parameters:



Product Model SH50-160 SH40-140 SH40-120 SH35-120 SH30-80
Span (m) 50 40 40 35 30
Lifting Capacity (T) 160—260 140 120 120 80
Crane Moving Speed (m/min) 2.7 2.7 2.7 2.7 2.7
Trolley Moving Speed (m/min) 4.5 4.5 4.5 4.5 4.5
Trolley lifting Speed (m/min) 0.8 0.8 0.8 0.8 0.8
girder-carrying speed of rear part (m/min) 0-9 0-9 0-9 0-9 0-9
Skew Bridge Angle (°) 45 45 45 45 45
Applicable curve radius (m) R350 R300 R300 R300 R300
Power (KW) 96 96 96 96 96



The composition of bridge erection machine:



The bridge erecting machine is mainly composed of the arm, the No. 1 hoisting trolley, the No. 2 hoisting trolley, the No. 1 column, the No. 2 column, the No. 3 column, the hydraulic system, the electrical system, the diesel generator set and the safety protection monitoring system.

The beam is transported by the beam transporter to the rear of the bridge erecting machine to feed the beam, the hoisting trolley lifts the girder to pull the beam, and the position of the box girder is fine-tuned in the air. It can erect 32m, 24m, 20m double-line whole-hole box girder, adapt to erect minimum curve radius R5500m, adapt to erect maximum longitudinal slope 20‰, rated lifting weight 900t.

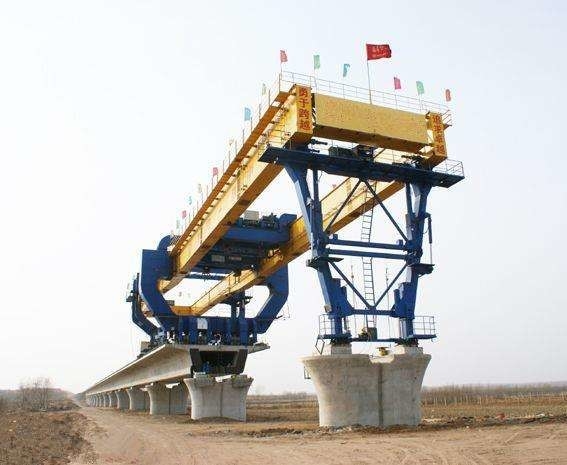

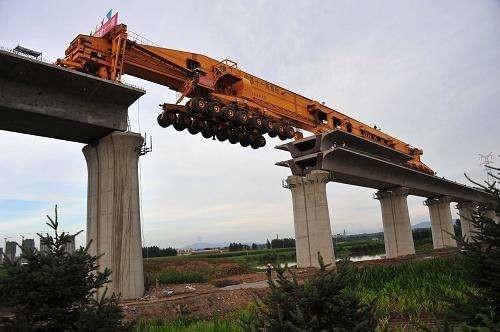

Bridge Erecting Machine Photo:



A5 A7 80 Ton Bridge Girder Launching Machine For Highway Building 0
