Product Details:
|
| Product Name: | Portable Scissor Lift Platform | Keywords: | Mobile Lift Platform |
|---|---|---|---|
| Lift Drive / Actuation: | Hydraulic | Lift Mechanism: | Scissor Lift |
| Table Size: | 1200*1000mm | Max. Lifting Height: | 12m |
| Capacity: | 300~2000 Kg | Application: | Man Lift Aerial Working Platform |
| High Light: | Man Lift Portable Hydraulic Scissor Lift,1200mm Boom Lift Platform,Portable Hydraulic Scissor Lift 1200mm |
||
Portable Scissor Lift Platform Self Propelled Man Lift Aerial Working Platform
Hydraulic lifting platform introduction:
The operator only needs to master the control handle in front of the equipment to complete the equipment forward, backward, steering, fast and slow walking, up and down and other actions. Flexible movement, easy operation, labor-saving and labor-saving.
It is especially suitable for a wide range of aerial work such as stations, docks, airports, power plants, stadiums, large enterprises, etc., and is currently the most ideal aerial work equipment.
Hydraulic Lifting Platform Specification:
|
product specifications |
GTJZ06 | GTJZ08 | GTJZ10 | GTJZ12 |
| working height | 7.8m | 10m | 12m | 13.8m |
| platform height | 5.8m | 8m | 10m | 11.8m |
| platform height stowed | 1.07m | 1.23m | 1.37m | 1.49m |
| platform length | 1.67m | 2.27m | 2.27m | 2.27m |
| platform extension length | 0.9m | 0.9m | 0.9m | 0.9m |
| platform width | 0.76m | 0.81m | 1.17m | 1.17m |
| overall height | 2.18m | 2.34m | 2.48m | 2.59m |
| overall length | 1.86m | 2.42m | 2.42m | 2.42m |
| overall width | 0.76m | 0.81m | 1.17m | 1.17m |
| wheelbase | 1.31m | 1.87m | 1.87m | 1.87m |
| ground clearance | 0.1m | 0.1m | 0.1m | 0.1m |
| lift capacity | 230kg | 230kg | 320kg | 320kg |
| lift capacity-extension deck | 113kg | 113kg | 113kg | 113kg |
| lift up | 27s | 37s | 45s | 50s |
| lift down | 22s | 32s | 35s | 38s |
| weight | 1415kg | 2250kg | 2440kg | 2860kg |
| drive speed ( platform lowered ) | 0-5km/h | 0-3.5km/h | 0-3.5km/h | 0-3.5km/h |
| drive speed ( platform elevated ) | 0-0.8km/h | 0-0.8km/h | 0-0.8km/h | 0-0.8km/h |
| turning radius-inside | 0 | 0 | 0 | 0 |
| turning radius-outside | 1.64m | 2.10m | 2.14m | 2.14m |
| gradeability | 30% | 25% | 25% | 25% |
| maximum tilt | 3° | 3° | 3° | 3° |
| non-marking solid tires | 15×5 | 15×5 | 15×5 | 15×5 |
| battery | 6V×4/225Ah | 6V×4/225Ah | 6V×4/225Ah | 6V×4/225Ah |
| charger | 30A automatic | 30A automatic | 30A automatic | 30A automatic |
Hydraulic Lifting Platform Application:
The hydraulic lifting platform can be customized according to user requirements. It is used in high-altitude operation and maintenance of factories, automatic warehouses, parking lots, municipal works, docks, construction, decoration, logistics, electricity, transportation, petroleum, chemical industry, hotels, gymnasiums, industrial and mining, enterprises, etc. The lifting system of the lifting platform is driven by hydraulic pressure, so it is called a hydraulic lifting platform.
The hydraulic lifting platform is suitable for various industrial enterprises and production lines such as automobile, container, mold manufacturing, wood processing, chemical filling, etc. With various control methods (split, linkage, explosion-proof), it has the characteristics of stable and accurate lifting, frequent starting, and large load capacity, which effectively solves the difficulties of various lifting operations in industrial enterprises and makes production operations easy.

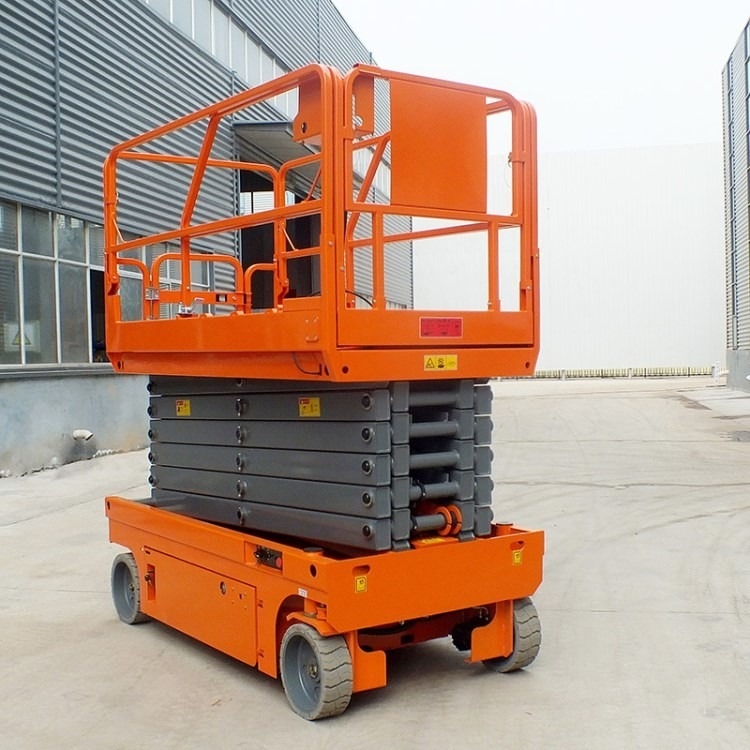

Hydraulic Lifting Platform Photos:
