Product Details:
|
| Product Name: | Self Propelled Electric Scissor Lift Platform | Lift Drive / Actuation: | Electric |
|---|---|---|---|
| Lift Mechanism: | Scissor Lift | Table Size: | 1200*1000mm |
| Max. Lifting Height: | 16m-18m | Capacity: | 680KG |
| Power: | 2.2kw | Application: | Aerial Work |
| High Light: | 680kg Hydraulic Lifting Platform,Mobile Scissor Lift Platform 680kg,High Bearing Capacity Mobile Platform Lift |
||
680KG 16m - 18m Self Propelled Electric Scissor Lift Platform For Aerial Work
Hydraulic lifting platform introduction:
The mobile scissor is a wide range of special equipment for high-altitude work. Its scissor mechanical structure makes the lifting platform have high stability, wide working platform and high bearing capacity, so that the aerial work range is larger, and it is suitable for multiple people to work at the same time. It makes aerial work more efficient and safer.
Hydraulic Lifting Platform Specification:
|
product specifications |
GTJZ06 | GTJZ08 | GTJZ10 | GTJZ12 |
| working height | 7.8m | 10m | 12m | 13.8m |
| platform height | 5.8m | 8m | 10m | 11.8m |
| platform height stowed | 1.07m | 1.23m | 1.37m | 1.49m |
| platform length | 1.67m | 2.27m | 2.27m | 2.27m |
| platform extension length | 0.9m | 0.9m | 0.9m | 0.9m |
| platform width | 0.76m | 0.81m | 1.17m | 1.17m |
| overall height | 2.18m | 2.34m | 2.48m | 2.59m |
| overall length | 1.86m | 2.42m | 2.42m | 2.42m |
| overall width | 0.76m | 0.81m | 1.17m | 1.17m |
| wheelbase | 1.31m | 1.87m | 1.87m | 1.87m |
| ground clearance | 0.1m | 0.1m | 0.1m | 0.1m |
| lift capacity | 230kg | 230kg | 320kg | 320kg |
| lift capacity-extension deck | 113kg | 113kg | 113kg | 113kg |
| lift up | 27s | 37s | 45s | 50s |
| lift down | 22s | 32s | 35s | 38s |
| weight | 1415kg | 2250kg | 2440kg | 2860kg |
| drive speed ( platform lowered ) | 0-5km/h | 0-3.5km/h | 0-3.5km/h | 0-3.5km/h |
| drive speed ( platform elevated ) | 0-0.8km/h | 0-0.8km/h | 0-0.8km/h | 0-0.8km/h |
| turning radius-inside | 0 | 0 | 0 | 0 |
| turning radius-outside | 1.64m | 2.10m | 2.14m | 2.14m |
| gradeability | 30% | 25% | 25% | 25% |
| maximum tilt | 3° | 3° | 3° | 3° |
| non-marking solid tires | 15×5 | 15×5 | 15×5 | 15×5 |
| battery | 6V×4/225Ah | 6V×4/225Ah | 6V×4/225Ah | 6V×4/225Ah |
| charger | 30A automatic | 30A automatic | 30A automatic | 30A automatic |
Hydraulic Lifting Platform Application:
especially suitable for a wide range of aerial work such as stations, docks, airports, power plants, stadiums, large enterprises, etc., and is currently the most ideal aerial work equipment.

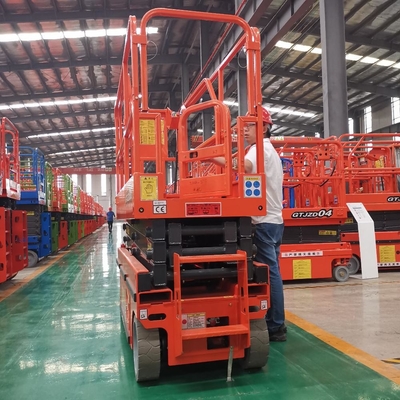

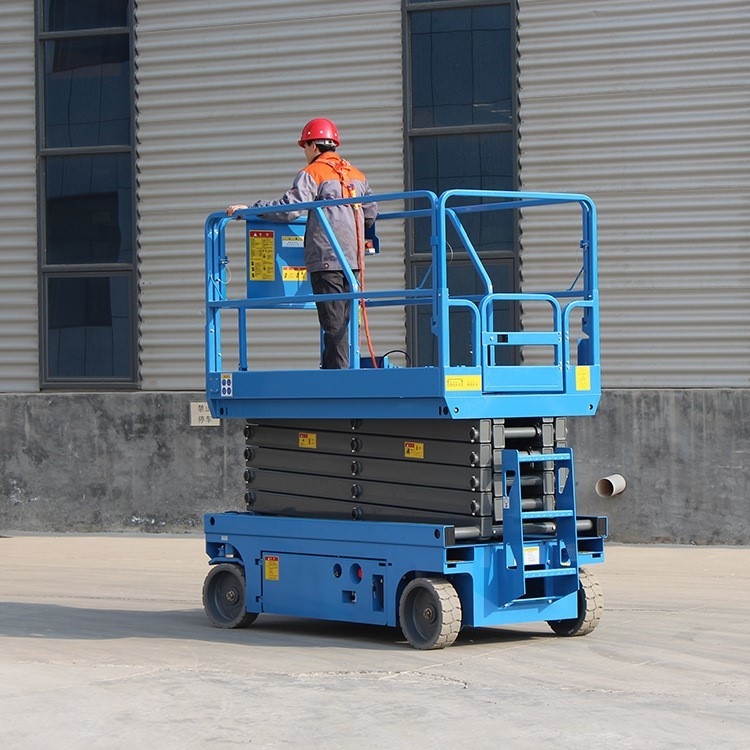

Hydraulic Lifting Platform Photos:
