Product Details:
|
| Product Name: | Electric Scissor Lift Aerial Work Platform | Keywords: | Mobile Aerial Work Platform |
|---|---|---|---|
| Lift Drive / Actuation: | Hydraulic | Lift Mechanism: | Scissor Lift |
| Table Size: | 1200*1000mm | Max. Lifting Height: | 8m |
| Capacity: | 230kg | Application: | Aerial Work |
| High Light: | 230kg Self Propelled Elevating Work Platforms,Elevating Work Platforms 230kg,Elevating Work Platforms Aerial Work |
||
230kg 8m electric scissor lift Aerial Work Platform , Self Propelled Aerial Work Platform
Hydraulic lifting platform introduction:
The mobile lifting platform can walk fast and slow at different heights, and can continuously complete up and down, forward, backward, steering and other work in a convenient operation platform in the air. The working height can reach 8~25 meters, and the load is 200~2000 kg. It is suitable for customers who have high-altitude work requirements such as factory workshops, square lobby airports, and industrial parks.
Hydraulic Lifting Platform Specification:
|
product specifications |
GTJZ06 | GTJZ08 | GTJZ10 | GTJZ12 |
| working height | 7.8m | 10m | 12m | 13.8m |
| platform height | 5.8m | 8m | 10m | 11.8m |
| platform height stowed | 1.07m | 1.23m | 1.37m | 1.49m |
| platform length | 1.67m | 2.27m | 2.27m | 2.27m |
| platform extension length | 0.9m | 0.9m | 0.9m | 0.9m |
| platform width | 0.76m | 0.81m | 1.17m | 1.17m |
| overall height | 2.18m | 2.34m | 2.48m | 2.59m |
| overall length | 1.86m | 2.42m | 2.42m | 2.42m |
| overall width | 0.76m | 0.81m | 1.17m | 1.17m |
| wheelbase | 1.31m | 1.87m | 1.87m | 1.87m |
| ground clearance | 0.1m | 0.1m | 0.1m | 0.1m |
| lift capacity | 230kg | 230kg | 320kg | 320kg |
| lift capacity-extension deck | 113kg | 113kg | 113kg | 113kg |
| lift up | 27s | 37s | 45s | 50s |
| lift down | 22s | 32s | 35s | 38s |
| weight | 1415kg | 2250kg | 2440kg | 2860kg |
| drive speed ( platform lowered ) | 0-5km/h | 0-3.5km/h | 0-3.5km/h | 0-3.5km/h |
| drive speed ( platform elevated ) | 0-0.8km/h | 0-0.8km/h | 0-0.8km/h | 0-0.8km/h |
| turning radius-inside | 0 | 0 | 0 | 0 |
| turning radius-outside | 1.64m | 2.10m | 2.14m | 2.14m |
| gradeability | 30% | 25% | 25% | 25% |
| maximum tilt | 3° | 3° | 3° | 3° |
| non-marking solid tires | 15×5 | 15×5 | 15×5 | 15×5 |
| battery | 6V×4/225Ah | 6V×4/225Ah | 6V×4/225Ah | 6V×4/225Ah |
| charger | 30A automatic | 30A automatic | 30A automatic | 30A automatic |
Hydraulic Lifting Platform Features:
The self-propelled scissor lift platform consists of several groups of booms mounted on a special self-propelled chassis, each group forming an X shape.
As the scissor boom opens and closes, the bucket mounted on top of the topmost boom group moves vertically.
All functions of the device are powered by batteries or onboard diesel engines and operated by a sealed hydraulic system, including safety brake and critical cylinder protection.
Functions performed by the operator include: lifting platform, telescopic platform, and operating chassis (forward, backward, steering).

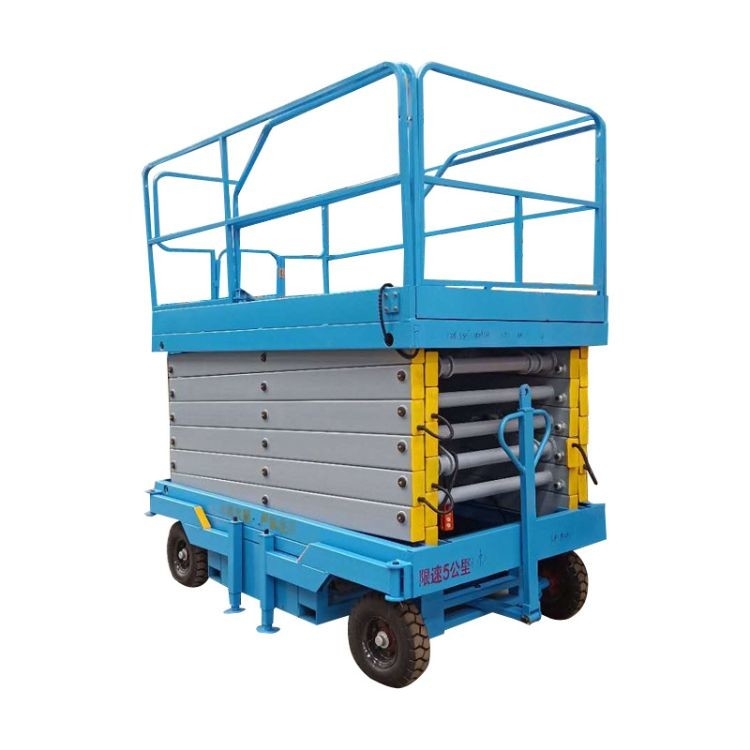

Hydraulic Lifting Platform Photos:
