Steering Drive Elevated Work Platform 400kg Mobile Aerial Platform

Steering Drive Elevated Work Platform 400kg Mobile Aerial Platform
Steering Drive Elevated Work Platform 400kg Mobile Aerial Platform
Steering Drive Elevated Work Platform 400kg Mobile Aerial Platform Steering Drive Elevated Work Platform 400kg Mobile Aerial Platform

Large Image :  Steering Drive Elevated Work Platform 400kg Mobile Aerial Platform

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 30 workdays
Payment Terms: L/C, T/T
Supply Ability: 10000 sets per year

Steering Drive Elevated Work Platform 400kg Mobile Aerial Platform

Description
Product Name: Self Propelled Scissor Lifting Platform Keywords: Mobile Aerial Work Platform
Lift Drive / Actuation: Hydraulic Max. Lifting Height: 12m
Capacity: 300~2000 Kg Application: Aerial Work
High Light:

Elevated Work Platform 400kg

,

400kg Mobile Aerial Platform

,

Mobile Aerial Platform Steering Drive





Self Propelled Scissor 12m Lift Electric Aerial Work Platform





Hydraulic lifting platform introduction:



The self-propelled lift itself has the function of walking and steering drive, no manual traction, no external power supply to move flexibly and conveniently, making aerial work more convenient and fast, is an ideal aerial work equipment for efficient and safe production of modern enterprises.



Hydraulic Lifting Platform Specification:



product specifications

GTJZ06 GTJZ08 GTJZ10 GTJZ12
working height 7.8m 10m 12m 13.8m
platform height 5.8m 8m 10m 11.8m
platform height stowed 1.07m 1.23m 1.37m 1.49m
platform length 1.67m 2.27m 2.27m 2.27m
platform extension length 0.9m 0.9m 0.9m 0.9m
platform width 0.76m 0.81m 1.17m 1.17m
overall height 2.18m 2.34m 2.48m 2.59m
overall length 1.86m 2.42m 2.42m 2.42m
overall width 0.76m 0.81m 1.17m 1.17m
wheelbase 1.31m 1.87m 1.87m 1.87m
ground clearance 0.1m 0.1m 0.1m 0.1m
lift capacity 230kg 230kg 320kg 320kg
lift capacity-extension deck 113kg 113kg 113kg 113kg
lift up 27s 37s 45s 50s
lift down 22s 32s 35s 38s
weight 1415kg 2250kg 2440kg 2860kg
drive speed ( platform lowered ) 0-5km/h 0-3.5km/h 0-3.5km/h 0-3.5km/h
drive speed ( platform elevated ) 0-0.8km/h 0-0.8km/h 0-0.8km/h 0-0.8km/h
turning radius-inside 0 0 0 0
turning radius-outside 1.64m 2.10m 2.14m 2.14m
gradeability 30% 25% 25% 25%
maximum tilt
non-marking solid tires 15×5 15×5 15×5 15×5
battery 6V×4/225Ah 6V×4/225Ah 6V×4/225Ah 6V×4/225Ah
charger 30A automatic 30A automatic 30A automatic 30A automatic



The main feature of the self-propelled hydraulic lifting platform



The user can control the mechanical lifting and walking without getting off the lifting table, and can control the equipment to drive to other working places on the table. The equipment itself has walking and steering drive functions, no manual traction, no external power supply. Flexible and convenient movement, making aerial work more convenient and fast, is the ideal aerial work equipment for efficient and safe production of modern enterprises.

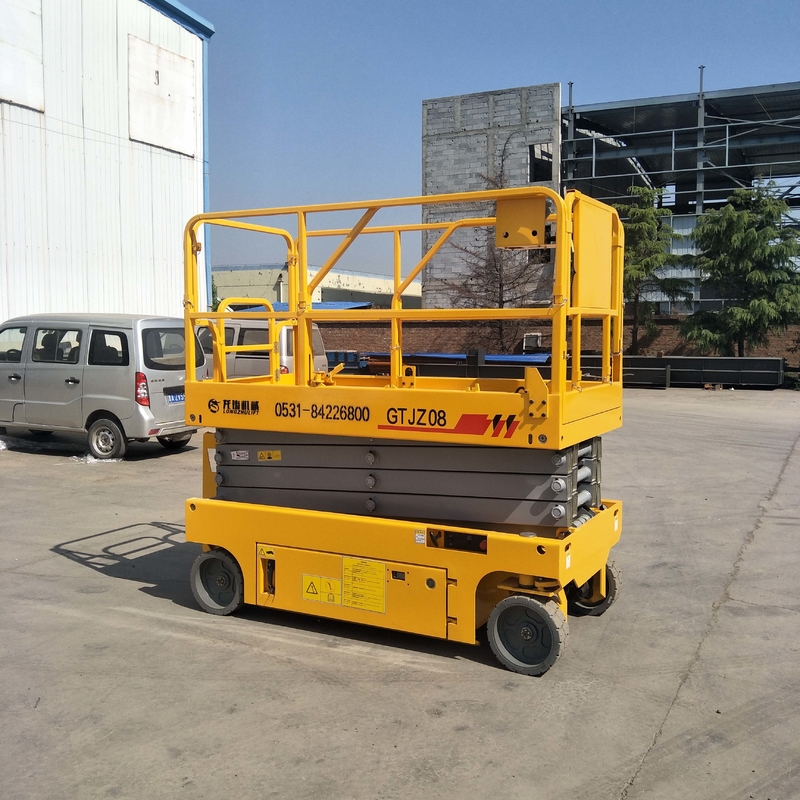

Hydraulic Lifting Platform Photos:



Steering Drive Elevated Work Platform 400kg Mobile Aerial Platform 0
