200kg Hydraulic Lifting Platform Robust Construction Mobile Scissor Lift Tables

200kg Hydraulic Lifting Platform Robust Construction Mobile Scissor Lift Tables
200kg Hydraulic Lifting Platform Robust Construction Mobile Scissor Lift Tables
200kg Hydraulic Lifting Platform Robust Construction Mobile Scissor Lift Tables 200kg Hydraulic Lifting Platform Robust Construction Mobile Scissor Lift Tables

Large Image :  200kg Hydraulic Lifting Platform Robust Construction Mobile Scissor Lift Tables

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 30 workdays
Payment Terms: L/C, T/T
Supply Ability: 10000 sets per year

200kg Hydraulic Lifting Platform Robust Construction Mobile Scissor Lift Tables

Description
Product Name: Mobile Hydraulic Lifting Platform Keywords: Mobile Aerial Work Platform
Lift Drive / Actuation: Hydraulic Lift Mechanism: Scissor Lift
Certification: CE Certification Max. Lifting Height: 12m
Power: 2.2kw Application: Aerial Work
High Light:

200kg Hydraulic Lifting Platform

,

Mobile Scissor Lift Tables 200kg

,

Hydraulic Lifting Platform Robust Construction



CE Certification Wheel Type Working Platform 200kg 230kg 450kg Mobile Self-Propelled Aerial Scissor Lift Platform





Hydraulic lifting platform introduction:



  • Large working area
  • Can be driven in an elevated state
  • Robust construction
  • The platform has a high carrying capacity
  • Simple and safe to use
  • Adapts to a variety of terrain conditions



Hydraulic Lifting Platform Specification:



product specifications

GTJZ06 GTJZ08 GTJZ10 GTJZ12
working height 7.8m 10m 12m 13.8m
platform height 5.8m 8m 10m 11.8m
platform height stowed 1.07m 1.23m 1.37m 1.49m
platform length 1.67m 2.27m 2.27m 2.27m
platform extension length 0.9m 0.9m 0.9m 0.9m
platform width 0.76m 0.81m 1.17m 1.17m
overall height 2.18m 2.34m 2.48m 2.59m
overall length 1.86m 2.42m 2.42m 2.42m
overall width 0.76m 0.81m 1.17m 1.17m
wheelbase 1.31m 1.87m 1.87m 1.87m
ground clearance 0.1m 0.1m 0.1m 0.1m
lift capacity 230kg 230kg 320kg 320kg
lift capacity-extension deck 113kg 113kg 113kg 113kg
lift up 27s 37s 45s 50s
lift down 22s 32s 35s 38s
weight 1415kg 2250kg 2440kg 2860kg
drive speed ( platform lowered ) 0-5km/h 0-3.5km/h 0-3.5km/h 0-3.5km/h
drive speed ( platform elevated ) 0-0.8km/h 0-0.8km/h 0-0.8km/h 0-0.8km/h
turning radius-inside 0 0 0 0
turning radius-outside 1.64m 2.10m 2.14m 2.14m
gradeability 30% 25% 25% 25%
maximum tilt
non-marking solid tires 15×5 15×5 15×5 15×5
battery 6V×4/225Ah 6V×4/225Ah 6V×4/225Ah 6V×4/225Ah
charger 30A automatic 30A automatic 30A automatic 30A automatic



Hydraulic Lifting Platform working principle:



The hydraulic oil is formed by the vane pump to a certain pressure, and enters the lower end of the hydraulic cylinder through the oil filter, flameproof electromagnetic reversing valve, throttle valve, hydraulic control check valve and balance valve, so that the piston of the hydraulic cylinder moves upwards and lifts the weight. The oil returned from the upper end of the liquid cylinder returns to the fuel tank through the explosion-proof electromagnetic reversing valve, and its rated pressure is adjusted through the overflow valve, and the reading value of the pressure gauge is observed through the pressure gauge.

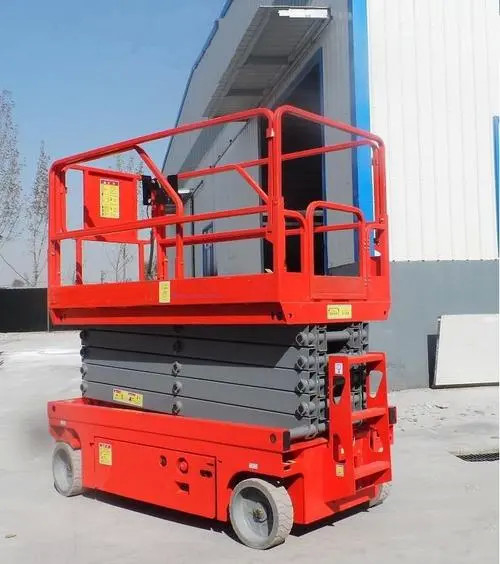

Hydraulic Lifting Platform Photos:



200kg Hydraulic Lifting Platform Robust Construction Mobile Scissor Lift Tables 0
