Product Details:
|
| Product Name: | Self Driven Hydraulic Scissor Lifting Platform | Keywords: | Mobile Aerial Work Platform |
|---|---|---|---|
| Lifting Height: | 6-12m | Load Capacity: | 300~2000 Kg |
| Size: | Customized Size | Wheel: | Four Wheels |
| Weight: | 420-1500KG | Color: | Blue,Customers' Requirements,customized,Yellow |
| Lift Drive / Actuation: | Hydraulic | Application: | Aerial Work, Construction Work, |
| Voltage: | 110v 220v 240v 380v Optional | ||
| High Light: | four wheels hydraulic platform lift,1 ton hydraulic platform lift,2 ton small hydraulic lift |
||
Four Wheels Self Driven Mobile Lift Table 1 Ton 2 Ton Capacity Hydraulic Scissor Lift Platform
Hydraulic lifting platform introduction:
The self-propelled lift itself has the function of walking and steering drive, no manual traction, no external power supply to move flexibly and conveniently, making aerial work more convenient and fast, is an ideal aerial work equipment for efficient and safe production of modern enterprises.
Hydraulic Lifting Platform Specification:
|
product specifications |
GTJZ06 | GTJZ08 | GTJZ10 | GTJZ12 |
| working height | 7.8m | 10m | 12m | 13.8m |
| platform height | 5.8m | 8m | 10m | 11.8m |
| platform height stowed | 1.07m | 1.23m | 1.37m | 1.49m |
| platform length | 1.67m | 2.27m | 2.27m | 2.27m |
| platform extension length | 0.9m | 0.9m | 0.9m | 0.9m |
| platform width | 0.76m | 0.81m | 1.17m | 1.17m |
| overall height | 2.18m | 2.34m | 2.48m | 2.59m |
| overall length | 1.86m | 2.42m | 2.42m | 2.42m |
| overall width | 0.76m | 0.81m | 1.17m | 1.17m |
| wheelbase | 1.31m | 1.87m | 1.87m | 1.87m |
| ground clearance | 0.1m | 0.1m | 0.1m | 0.1m |
| lift capacity | 230kg | 230kg | 320kg | 320kg |
| lift capacity-extension deck | 113kg | 113kg | 113kg | 113kg |
| lift up | 27s | 37s | 45s | 50s |
| lift down | 22s | 32s | 35s | 38s |
| weight | 1415kg | 2250kg | 2440kg | 2860kg |
| drive speed ( platform lowered ) | 0-5km/h | 0-3.5km/h | 0-3.5km/h | 0-3.5km/h |
| drive speed ( platform elevated ) | 0-0.8km/h | 0-0.8km/h | 0-0.8km/h | 0-0.8km/h |
| turning radius-inside | 0 | 0 | 0 | 0 |
| turning radius-outside | 1.64m | 2.10m | 2.14m | 2.14m |
| gradeability | 30% | 25% | 25% | 25% |
| maximum tilt | 3° | 3° | 3° | 3° |
| non-marking solid tires | 15×5 | 15×5 | 15×5 | 15×5 |
| battery | 6V×4/225Ah | 6V×4/225Ah | 6V×4/225Ah | 6V×4/225Ah |
| charger | 30A automatic | 30A automatic | 30A automatic | 30A automatic |
The main feature of the self-propelled hydraulic lifting platform
The user can control the mechanical lifting and walking without getting off the lifting table, and can control the equipment to drive to other working places on the table. The equipment itself has walking and steering drive functions, no manual traction, no external power supply. Flexible and convenient movement, making aerial work more convenient and fast, is the ideal aerial work equipment for efficient and safe production of modern enterprises.
Packaging and Shipping

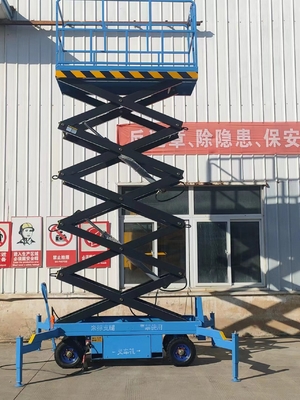

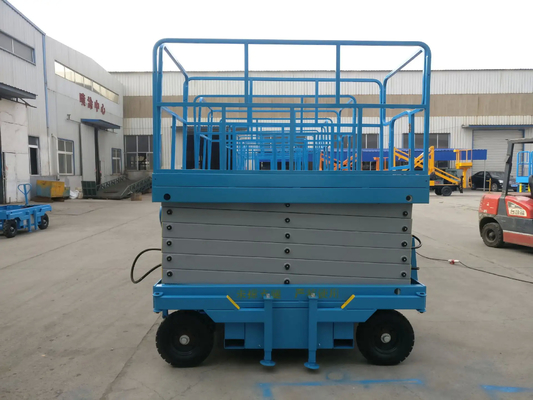

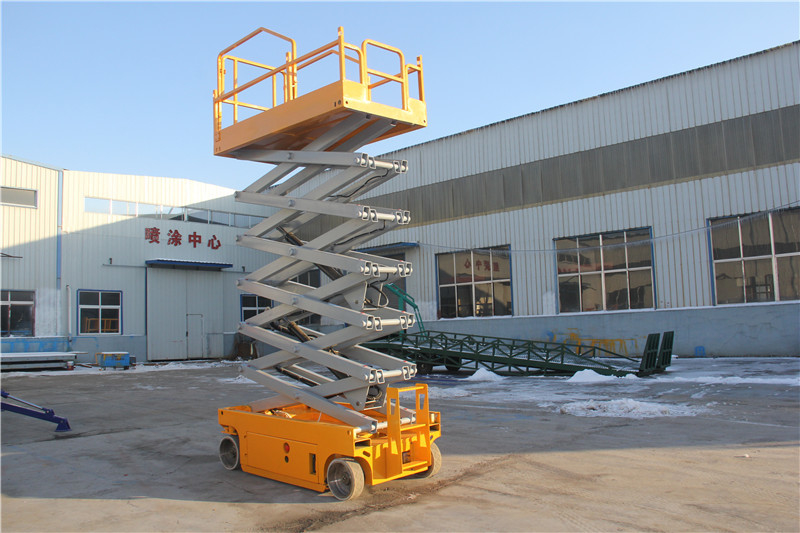

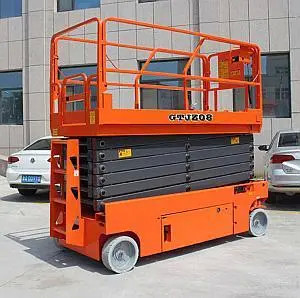

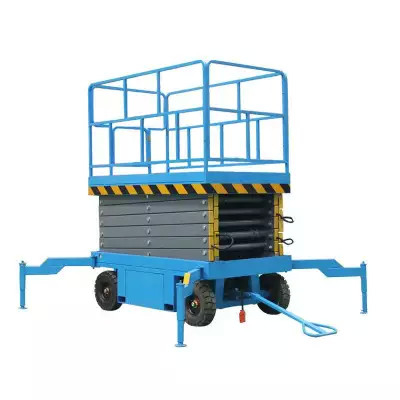

Hydraulic Lifting Platform Photos:
