Product Details:
|
| Product Name: | Heavy Duty Electric Winch | Keyword: | Electric Winch |
|---|---|---|---|
| Capacity: | 5~650KN , 270~86000Kg | Sling Type: | Wire Rope |
| Lifting Speed: | 0-30m/min | Power Source: | Electric |
| Certification: | ISO CE | Usage: | Crane , Lifting Goods |
| Application: | Cranes . Warehouse , Industry , Workshop | Customized Support: | OEM |
| High Light: | 20000lbs Mine Marine Winch electric,Horizontal Pulling 20000 lb electric winch,cranes 18000 lb electric winch |
||
Heavy Duty Electric Winch Safe And Stable Used For Construction Mine Marine
General description:
An electric winch is a small and lightweight lifting device that uses a drum to wrap a wire rope or chain to lift or pull heavy objects. It is also known as a winch. The hoist can lift heavy objects vertically, horizontally, or inclined. The winch is divided into three types: manual winch, electric winch and hydraulic winch. Mainly electric winches. It can be used alone or as a component of machinery such as lifting, road building, and mine hoisting. Because of its easy operation, large amount of rope winding, and convenient displacement.
Specification:
Electric winch is made up of motor, brake, drum, wire rope, electrical appliance, base ect , which can be customized according to client requirement.
| Items | Rated load | Rated speed | Rope capacity | Rope diameter | Motor | Power | Size | Weight |
| KN | m/min | m | mm | mm | kg | |||
| JK0.5 | 5 | 22 | 190 | 7.7 | Y100L-4 | 3 | 620*701*417 | 200 |
| JK1 | 10 | 22 | 100 | 9.3 | Y112M-4 | 4 | 620*701*417 | 300 |
| JK1.6 | 16 | 24 | 150 | 12.5 | Y132S-4 | 5.5 | 945*996*570 | 500 |
| JK2 | 20 | 24 | 150 | 13 | Y132M-4 | 7.5 | 945*996*570 | 550 |
| JK3.2 | 32 | 25 | 290 | 15.5 | YZR180L-6 | 15 | 1325*1335*840 | 1011 |
| JK3.2B | 32 | 30 | 250 | 15.5 | YZR200L-6 | 22 | 1900*1738*985 | 1500 |
| JK5 | 50 | 30 | 300 | 21.5 | YZR225M-6 | 30 | 1900*1620*985 | 2050 |
| JK5B | 50 | 25 | 210 | 21.5 | YZR225M-8 | 22 | 2250*2500*1300 | 2264 |
| JK8 | 80 | 25 | 160 | 26 | YZR280S-8 | 45 | 1533*1985*1045 | 3000 |
| JK10 | 100 | 30 | 300 | 30 | YZR315S-8 | 55 | 2250*2500*1300 | 5100 |
JK series winch can be customzied Max. 60T according to your demands.
Applications of winch:
Electric winches are typically used to drag or lift heavy objects or objects vertically, horizontally or obliquely through the winch drum. etc.
Electric winches can be used for horizontal pulling, cable pulling or vertical lifting.
Advantages and Features:

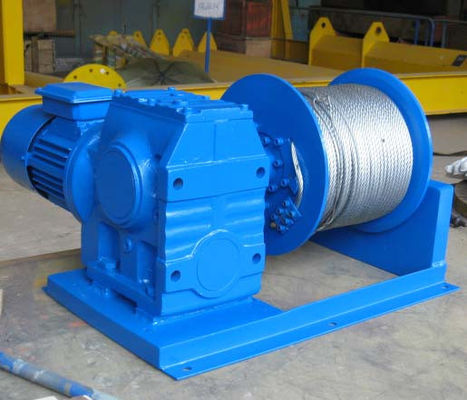

Winch Photos:
