Product Details:
|
| Keywords: | Hydraulic Lifting Table | Condition: | New |
|---|---|---|---|
| Type: | Manual Hydraulic Platform Lift Truck | Rated Load: | 150kg |
| Max. Lifting Height: | 1260mm | Table Size: | 700*450*35mm |
| Control Method: | Wireless Remote Control,Ground Control | Core Components: | Pump |
| Lift Mechanism: | Scissor Lift | Application: | Workshop,Warehouse,factory |
| High Light: | Load Goods Manual Scissor Lift Platform,1260mm Manual Scissor Lift Platform,1260mm small hydraulic lift table |
||

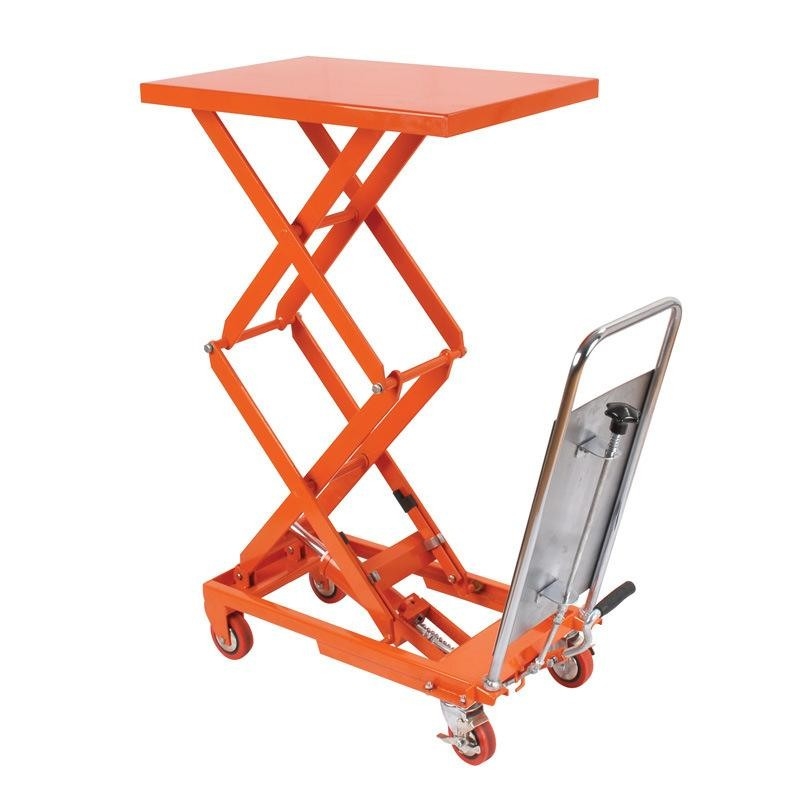

Manual Hydraulic Platform Lift Truck Double Scissors Load Goods Transport Machine
Manual Hydraulic Platform Lift Truck Introduction:
Applicable to various industries,expecially in warehousing,logistics,manufacturing industies
Manual Hydraulic Platform Lift Truck Technical Parameter:
| Rated load (KG) | 150/300/500/800/1000 |
150/350/350/350 /500/800/1000/1500 |
| Wheeldiameter(mm) | Φ100/125/125/150/150 |
100/125/125/125 /125/125/150/150 |
| Wheel | Polyurethane | Polyurethane |
| Max. height (mm) | 720/900/900/1000/1000 | 1260/1300/1500/1580/1500/1500/1700/1700 |
| Min. height (mm) | 210/280/280/415/415 | 302/350/350/350/360/450/500/500 |
| Table Dimensions(mm) |
700*450*35/815*500*50 /815*500*50/1016*510*60 /1016*510*60 |
700*450*35/905*500*50 /905*500*50/900*700*50 /905*500*50/1200*610*60 /1200*610*80/1200*610*80 |
| Packing size (mm) |
820*470*230/900*510*310 /900*510*310/1140*570*450 /1140*570*450 |
820*470*325/1010*520*380 /1010*520*380/1010*820*380 /1020*520*360/1380*610*460 /1370*610*500/1370*610*500 |
| Weight (kg) | 40/74/82/112/112 | 50/106/106/120/110/150/225/225 |
Manual Hydraulic Platform Lift Truck Application:
The transportation of a small amount of goods in small and small places is realized by manual operation, and the up and down movement of the lifting platform is realized by hydraulic or electric drive. The automatic hand-push lifting platform can realize the automatic movement function and is controlled manually.
Manual Hydraulic Platform Lift Truck Details:
