Product Details:
|
| Name: | Static Scissor Lift Tables | Keywords: | Hydraulic Lifting Table |
|---|---|---|---|
| Capacity: | 500~3000 KG | Max. Lifting Height: | 1010 Mm |
| Overall Dimensions: | 1300x800x190 | Table Size: | 1300x800 |
| Actuation: | Electric Motor | Application: | For Workshop Use |
| High Light: | 1010mm Hydraulic Scissor Lifting Table,1010mm static scissor lift table,Customized static scissor lift table |
||
Customized Static Scissor Lift Tables Hydraulic Lifting Workshop Use
Static Scissor Lift Tables Introduction:
Hydraulic scissor lift table is an important part of the field of material handling and one of the professional aerial work equipment. The scissor lift table is mainly used to transport goods from one working level to another, it can be installed on the ground or in the pit.
Static Scissor Lift Tables Technical Parameter:
| Model | HIW50 | HIW100 | HIW200 | HIW300 | |
| Capacity | Kg/lb | 500/1100 | 1000/2200 | 2000/4400 | 3000/6600 |
| Lowered Height | Mm/in | 190/7.5 | 190/7.5 | 190/7.5 | 220/8.7 |
| Raised Height | Mm/in | 1010/40 | 1010/40 | 1010/40 | 1020/40.2 |
| Platform Size (LxB) | Mm/in | 1300x800 51.2x31.5 | |||
| Lifting Time | Sec | 15 | 25 | 40 | 26 |
| Lifting Speed | Mm/s | 55 | 40 | 22 | 30 |
| Lowering Speed | Mm/s | 40 | 35 | 33 | 40 |
| Motor | Kw | 0.75 | 0.75 | 0.75 | 1.5 |
| Net Weight | Kg/lb | 160/352 | 220/484 | 280/616 | 320/704 |
Static Scissor Lift Tables Safety Instructions:
1. Explosion-proof valve
2. Relief valve
3. Emergency lowering valve
4. Overload protection locking device.
5. Emergency lowering valve
6. Overload protection locking device.

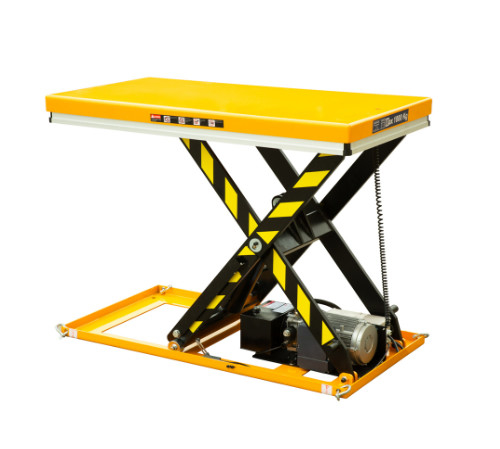

Static Scissor Lift Tables Photo:
