Large Operating Range Single Girder Gantry Crane 3 Ton Cargo Container Crane

Large Operating Range Single Girder Gantry Crane 3 Ton Cargo Container Crane
Large Operating Range Single Girder Gantry Crane 3 Ton Cargo Container Crane Large Operating Range Single Girder Gantry Crane 3 Ton Cargo Container Crane

Large Image :  Large Operating Range Single Girder Gantry Crane 3 Ton Cargo Container Crane

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 30 workdays
Payment Terms: L/C, T/T
Supply Ability: 5000 sets per year

Large Operating Range Single Girder Gantry Crane 3 Ton Cargo Container Crane

Description
Keywords: Single Beam Gantry Crane Condition: New
Feature: Large Operating Range Span: 5-40m Or On Request
Max. Lifting Load: 10 Ton Max. Lifting Height: 9m,12m,6m
Control Method: Wireless Remote Control,Ground Control Power Source: 3 Phase 380V 50hz Or Accord Your Requirements
Application: Warehouse
High Light:

Single Girder Gantry Crane 3T

,

3Ton Cargo Container Crane

,

Large Operating Range gantry crane 3 ton

Large Operating Range Single Girder Gantry Crane For Warehouse



Introduction:



The upper bridge frame of the gantry crane (including the main beam and the end beam), the outriggers, the lower beam and other parts are composed. In order to expand the working range of the crane, the main beam can extend beyond the outriggers to one or both sides to form a cantilever. A hoisting trolley with a jib can also be used to expand the crane's operating range through the pitch and rotation of the jib.



It is mainly used for the loading and unloading of outdoor cargo yards, stockyards and bulk cargoes. Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port cargo yards.



Technical Parameter:



Capacity T 3 5 10 16 20
Span m 12,16,20,24,30
Operational method   Pendent Line With Press Button /Cabin/ Remote
Speed Lifting



m/min

8 ,8/0.8 8,8/0.8 7,7/0.7 3.5 3.5
Cross travelling 20 20 20 20 20
Long travelling Ground 20 20 20 20 20
Cabin 20, 30,45 20, 30,40 30,40 30,40 30,40
Motor Lifting Type /kw ZD41-4/4.5
ZDS1-4/0.4/4.5
ZD141-4/7.5 ZDS10.8/4.5 ZD151-4/13 ZDS11.5/4.5 ZD151-4/13 ZD152-4/18
Cross travelling ZDY12-4/0.4 ZDY121-4/0.8 ZDY21-4/0.8×2 ZDY121-4/0.8×2 YZD-4/0.8×4
Long travelling Ground ZDY21-4/0.8×2
ZDY21-4/1.5×2
YZY22-4/1.5×2
YZR132M2-6/3.7×2
YZR22-4/1.5×2 YZR160M1-6/6.3×2
YZR160M2-6/8.5×2
YZR160M1-6/6.3×2
YZR160M2-6/8.5×2
Cabin ZDR100-4/1.5×2
ZDR112-4/2.1×2
YZR112L1-4/2.1×2
YZR160M1-6/2.1×2
YZR112L1-4/2.1×2
YZR160M2
YZR160M2-6/8.5×2
YZR160L2-6/11×2
YZR160M2-6/8.5×2
YZR160L2-6/11×2
Electric hoist Model CD1/MD1 CD1/MD1 CD1/MD1 CD1 HC
Lifting height m 6,9
Working duty   A3
Power supply   380V 60HZ 3phase AC (According to your demand )



Classification by main beam structure:



Truss type Box type
Advantage:
a. Small windward side and resistance
b. Light dead weight,low cost
c. Nice appearance
Advantage:
a. Compact structure,good rigidity,strong lifting capacity;indoor use available
b. Characteristic of slim body,save shipping cost.
Specification:
1. Capacity: 5t~32t
2. Span length:10~35m
3. Lifting height: up to 12m
4. Hoist: CD type or MD type
5. Control model: padent control,remote control or
cabin control
6. Single girder gantry crane including general purpose gantry crane and L type gantry crane with truss type.
Specification:
1. Capacity: 5t~32t
2. Span length:10~35m
3. Lifting height: up to 12m
4. Hoist:CD type or MD type
5. Control model: padent control,remote control or cabin control
6. Working temperature:-20°C to + 40°C
7. Single girder gantry crane including general purpose gantry crane and L type gantry crane with boxed type.



Application:



Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port cargo yards.



Photos:

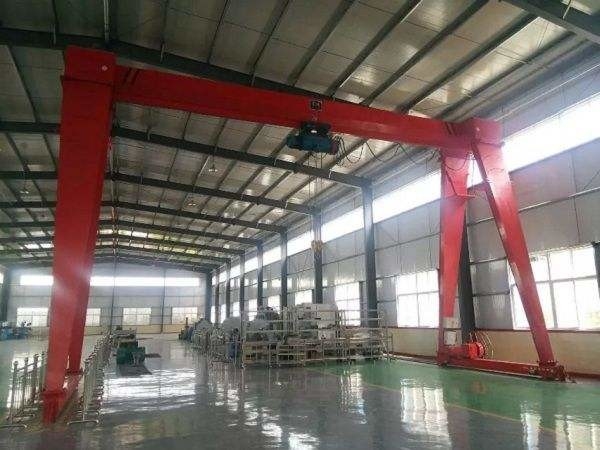

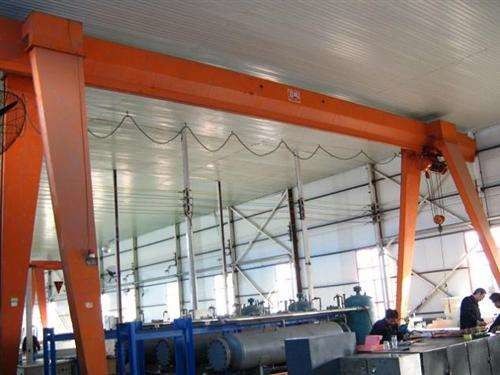

Large Operating Range Single Girder Gantry Crane 3 Ton Cargo Container Crane 0Large Operating Range Single Girder Gantry Crane 3 Ton Cargo Container Crane 1
