Product Details:
|
| Keywords: | Gantry Crane Single Beam | Feature: | Wide Adaptability And Strong Versatility |
|---|---|---|---|
| Span: | 5-40m | Max. Lifting Load: | 10 Ton |
| Max. Lifting Height: | 9m,12m,6m | Control Method: | Wireless Remote Control,Ground Control |
| Power Source: | 3 Phase 380V 50hz Or Accord Your Requirements | Application: | Warehouse |
| High Light: | Warehouse Single Girder Gantry Crane,Single Girder Gantry Crane ODM,10 Ton Bridge Crane OEM ODM |
||

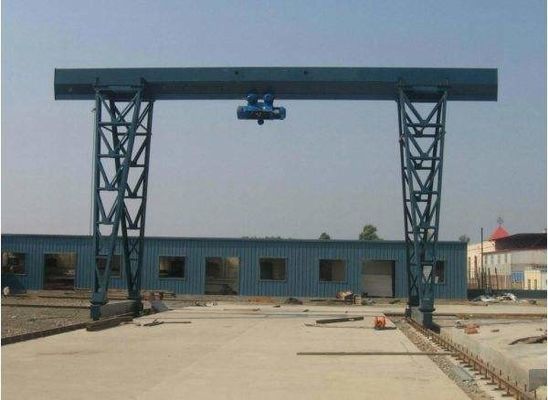

Wide Adaptability And Strong Versatility Single Girder Gantry Crane 10 Ton For Warehouse
Introduction:
The gantry crane is a bridge-type crane in which the bridge is supported on the ground track through the outriggers on both sides. In structure, it consists of gantry, cart running mechanism, lifting trolley and electrical parts.
It is mainly used for the loading and unloading of outdoor cargo yards, stockyards and bulk cargoes. Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port cargo yards.
Technical Parameter:
| Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 12,16,20,24,30 | ||||||
| Operational method | Pendent Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting |
m/min |
8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross travelling | 20 | 20 | 20 | 20 | 20 | |||
| Long travelling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross travelling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8×2 | ZDY121-4/0.8×2 | YZD-4/0.8×4 | |||
| Long travelling | Ground | ZDY21-4/0.8×2 ZDY21-4/1.5×2 |
YZY22-4/1.5×2 YZR132M2-6/3.7×2 |
YZR22-4/1.5×2 | YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
||
| Cabin | ZDR100-4/1.5×2 ZDR112-4/2.1×2 |
YZR112L1-4/2.1×2 YZR160M1-6/2.1×2 |
YZR112L1-4/2.1×2 YZR160M2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
|||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 60HZ 3phase AC (According to your demand ) | |||||||
Safety Features of Our Gantry Cranes:
1. Crane traveling limit switch
2. Weight overload protection device
3. Lifting height limit device
4. Voltage lower protection function
5. Phase sequence protection function
6. Warning indicator: flashing lights and warning sound.
7. Emergency stop function
8. Rain cover for outside hoist, driving units, electrical cubicle.
9. Wireless infra-detector for anti-collusion
Application:
Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port cargo yards.
Photos:
