Product Details:
|
| Keywords: | Single Girder Gantry Crane | Condition: | New |
|---|---|---|---|
| Feature: | Gantry Crane | Span: | 5-40m Or On Request |
| Max. Lifting Load: | 10 Ton | Max. Lifting Height: | 9m,12m,6m |
| Control Method: | Wireless Remote Control,Ground Control | Power Source: | 3 Phase 380V 50hz Or Accord Your Requirements |
| Application: | Workshop,Warehouse,factory | ||
| High Light: | 12m Span Single Girder Gantry Crane,10Ton Single Girder Gantry Crane,Wireless Remote Control 10T Gantry Crane |
||
10t 12m Single Girder Gantry Crane Improves The Working Conditions
Introduction:
The upper bridge frame of the gantry crane (including the main beam and the end beam), the outriggers, the lower beam and other parts are composed. In order to expand the working range of the crane, the main beam can extend beyond the outriggers to one or both sides to form a cantilever. A hoisting trolley with a jib can also be used to expand the crane's operating range through the pitch and rotation of the jib.
It is mainly used for the loading and unloading of outdoor cargo yards, stockyards and bulk cargoes. Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port cargo yards.
Technical Parameter:
| Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 12,16,20,24,30 | ||||||
| Operational method | Pendent Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting |
m/min |
8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross travelling | 20 | 20 | 20 | 20 | 20 | |||
| Long travelling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross travelling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8×2 | ZDY121-4/0.8×2 | YZD-4/0.8×4 | |||
| Long travelling | Ground | ZDY21-4/0.8×2 ZDY21-4/1.5×2 |
YZY22-4/1.5×2 YZR132M2-6/3.7×2 |
YZR22-4/1.5×2 | YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
||
| Cabin | ZDR100-4/1.5×2 ZDR112-4/2.1×2 |
YZR112L1-4/2.1×2 YZR160M1-6/2.1×2 |
YZR112L1-4/2.1×2 YZR160M2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
|||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 60HZ 3phase AC (According to your demand ) | |||||||
Constituent parts:
According to the industry standard GB/T14406, the gantry crane is mainly composed of the following components
1. Cylindrical wheel
2. Buffer
3. Block brake
4. Steel wire rope
5. Lifting hook
6. Driver's cab
7. Reducer
8. Casting pulley
9. Casting reel
10. Motor
11. Electronic control equipment
Application:
The use of gantry cranes greatly reduces the labor intensity of loading and unloading workers, improves the working conditions of workers, improves loading and unloading production capacity and labor productivity, and is the key to improving the quality and efficiency of equipment packaging and construction. Gantry cranes are widely used in various industries, such as the combination of ground electrical equipment, equipment production and processing, the frame and lifting of precast concrete objects, etc. Transporting trains, passenger cars, ship hoisting section shipyards in railway freight yards, hydropower dam gate operations for loading and unloading containers in ports, lifting and transporting heavy objects inside factories, construction work on construction and installation sites, and stacking timber in timber yards, etc.

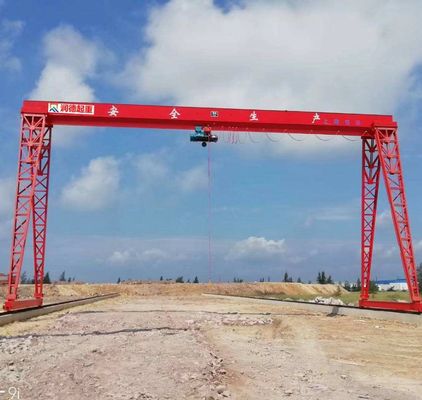

Photos:
