Product Details:
|
| Product Name: | Light Duty Electric Winch | Keyword: | Jm Model Electric Winch |
|---|---|---|---|
| Capacity: | 5~650KN , 270~86000Kg | Sling Type: | Wire Rope |
| Lifting Speed: | 0-30m/min | Power Source: | Electric |
| Certification: | ISO CE | Usage: | Construction |
| Application: | Cranes . Warehouse , Industry , Workshop | Customized Support: | OEM |
| High Light: | 12000lbs JM Electric Winch,Bridge Port 12000lbs Jm Electric Winch,12000lbs Jm winch for cable pulling |
||
Jm Model Slow Speed Electric Power Winch For Cable Pulling
Description:
JM model slow speed electric winch is electric motor driven gear winch. It is mainly used for hoisting, drag-and-drop, loading cargos, such as all kinds of large concrete construction,steel constructions installation and disassembly; JM model slow speed electric winch is applied to construction company, mine, factory and other installation engineering projects company. This series electric winch is mainly used for large and oversize concrete construction of steel installation and disassembly of mechanical equipment. This structural characteristic is wire rope orderly arrangement lifting is safe and reliable. It is suitable for bridge port and road and bridge engineering and large factories and mines engineering equipment installation.
Specification:
Electric winch is made up of motor, brake, drum, wire rope, electrical appliance, base ect , which can be customized according to client requirement.
|
Basic Parameters
|
Rated Load
|
Average Speed of Rope
|
Capacity of Rope
|
Rope Diameter
|
Hydraulic Brake
|
Motor Power
|
Overall Dimension
|
Total Weight
|
|
Model
|
KN
|
m/min
|
m
|
mm
|
Type
|
KW
|
mm
|
kg
|
|
JM0.5
|
5
|
16
|
90
|
7.7
|
TJ2-100
|
2.2
|
820X670X330
|
120
|
|
JM1
|
10
|
16
|
120
|
9.3
|
TJ2-150
|
5.5
|
830X670X330
|
220
|
|
JM1.5
|
15
|
16
|
160
|
11
|
TJ2-200
|
7.5
|
1150X900X510
|
310
|
|
JM2
|
20
|
16
|
150
|
12.5
|
TJ2-200/YWZ-200/25
|
7.5
|
1190X925X550
|
350
|
|
JM3
|
30
|
16
|
200
|
12.5
|
TJ2-200/YWZ-200/25
|
11
|
1250X1037X560
|
450
|
|
JM5
|
50
|
9
|
200
|
19.5
|
YWZ-300/45
|
11
|
1568X1300X765
|
1000
|
|
JM5
|
50
|
9
|
200
|
19.5
|
YWZ-300/45
|
15
|
1568X1350X765
|
1100
|
|
JM8
|
80
|
9
|
300
|
26
|
YWZ-300/45
|
15
|
1950X1570X1040
|
1800
|
|
JM8
|
80
|
15
|
300
|
26
|
YWZ-300/45
|
22
|
1950X1630X1040
|
1900
|
|
JM10
|
100
|
9
|
300
|
30
|
YWZ-300/45
|
22
|
2100X1700X1050
|
2200
|
|
JM10
|
100
|
15
|
300
|
30
|
YWZ-300/45
|
30
|
2100X1700X1050
|
2400
|
|
JM12
|
120
|
9
|
300
|
32
|
YWZ-300/45
|
22
|
2200X1800X1006
|
2500
|
|
JM16
|
160
|
9
|
400
|
36.5
|
YWZ-400/90
|
30
|
2330X2250X1320
|
4000
|
|
JM20
|
200
|
9
|
450
|
39
|
YWZ-400/90
|
45
|
2450X2315X1400
|
4500
|
|
JM30
|
300
|
9
|
450
|
47.5
|
YWZ-400/90
|
55
|
2600X2700X1740
|
7800
|
Features:
1. High versatility, compact structure and small size.
2. Light weight, heavy lifting, easy to use and transfer.
3. As hoisting equipment, it is used for mine hoisting, well drilling and hanging (lifting) well drilling equipment, that is, lifting ore, waste (gangue) rock, lifting personnel, lowering materials, tools and equipment, etc. along the wellbore
4. As transportation equipment, it is used for underground transportation of ore (mining cart), rake ore (slag) in the stope, or filling and removing uprights.
Applications of winch:
Electric winches are typically used to drag or lift heavy objects or objects vertically, horizontally or obliquely through the winch drum. etc.
Electric winches can be used for horizontal pulling, cable pulling or vertical lifting.

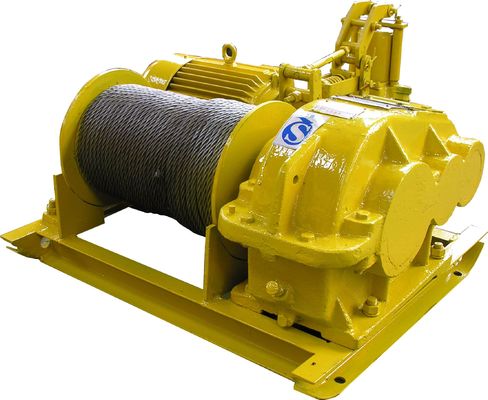

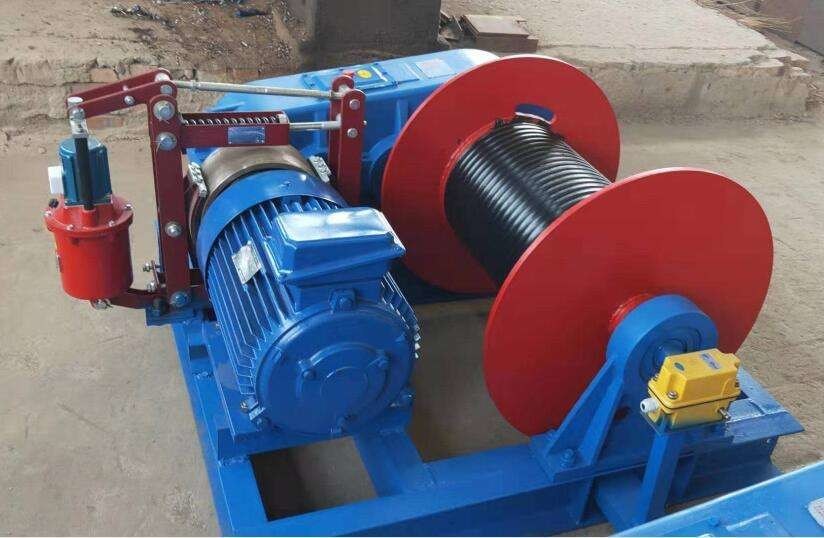

Winch Photos:
