Product Details:
|
| Product Name: | High Speed Electric Winch | Feature: | Compact Structure And Small Size |
|---|---|---|---|
| Capacity: | 5~650KN , 270~86000Kg | Sling Type: | Wire Rope |
| Lifting Speed: | 0-30m/min | Power Source: | Electric |
| Certification: | ISO CE | Application: | Cranes . Warehouse , Industry , Workshop |
| High Light: | 2.2KW Electric Winch For Traction Construction,2.2KW Compact Small Electric Winch,55KW Traction Construction electric cable winch |
||
Compact Structure And Small Size High Speed Electric Winch For Construction
Description:
The winch converts electrical energy into mechanical energy through the motor, that is, the rotor of the motor rotates and outputs, through the V-belt, shaft, gear, decelerates and then drives the reel to rotate. The reel winds the wire rope and passes through the pulley block, so that the crane hook lifts or drops the load, converts the mechanical energy into mechanical work, and completes the vertical transportation and loading and unloading of the load.
Specification:
Electric winch is made up of motor, brake, drum, wire rope, electrical appliance, base ect , which can be customized according to client requirement.
|
Basic Parameters
|
Rated Load
|
Average Speed of Rope
|
Capacity of Rope
|
Rope Diameter
|
Hydraulic Brake
|
Motor Power
|
Overall Dimension
|
Total Weight
|
|
Model
|
KN
|
m/min
|
m
|
mm
|
Type
|
KW
|
mm
|
kg
|
|
JM0.5
|
5
|
16
|
90
|
7.7
|
TJ2-100
|
2.2
|
820X670X330
|
120
|
|
JM1
|
10
|
16
|
120
|
9.3
|
TJ2-150
|
5.5
|
830X670X330
|
220
|
|
JM1.5
|
15
|
16
|
160
|
11
|
TJ2-200
|
7.5
|
1150X900X510
|
310
|
|
JM2
|
20
|
16
|
150
|
12.5
|
TJ2-200/YWZ-200/25
|
7.5
|
1190X925X550
|
350
|
|
JM3
|
30
|
16
|
200
|
12.5
|
TJ2-200/YWZ-200/25
|
11
|
1250X1037X560
|
450
|
|
JM5
|
50
|
9
|
200
|
19.5
|
YWZ-300/45
|
11
|
1568X1300X765
|
1000
|
|
JM5
|
50
|
9
|
200
|
19.5
|
YWZ-300/45
|
15
|
1568X1350X765
|
1100
|
|
JM8
|
80
|
9
|
300
|
26
|
YWZ-300/45
|
15
|
1950X1570X1040
|
1800
|
|
JM8
|
80
|
15
|
300
|
26
|
YWZ-300/45
|
22
|
1950X1630X1040
|
1900
|
|
JM10
|
100
|
9
|
300
|
30
|
YWZ-300/45
|
22
|
2100X1700X1050
|
2200
|
|
JM10
|
100
|
15
|
300
|
30
|
YWZ-300/45
|
30
|
2100X1700X1050
|
2400
|
|
JM12
|
120
|
9
|
300
|
32
|
YWZ-300/45
|
22
|
2200X1800X1006
|
2500
|
|
JM16
|
160
|
9
|
400
|
36.5
|
YWZ-400/90
|
30
|
2330X2250X1320
|
4000
|
|
JM20
|
200
|
9
|
450
|
39
|
YWZ-400/90
|
45
|
2450X2315X1400
|
4500
|
|
JM30
|
300
|
9
|
450
|
47.5
|
YWZ-400/90
|
55
|
2600X2700X1740
|
7800
|
Features:
1. High versatility, compact structure and small size.
2. Light weight, heavy lifting, easy to use and transfer.
3. As hoisting equipment, it is used for mine hoisting, well drilling and hanging (lifting) well drilling equipment, that is, lifting ore, waste (gangue) rock, lifting personnel, lowering materials, tools and equipment, etc. along the wellbore
4. As transportation equipment, it is used for underground transportation of ore (mining cart), rake ore (slag) in the stope, or filling and removing uprights.
Applications of winch:
Electric winches are typically used to drag or lift heavy objects or objects vertically, horizontally or obliquely through the winch drum. etc.
Electric winches can be used for horizontal pulling, cable pulling or vertical lifting.

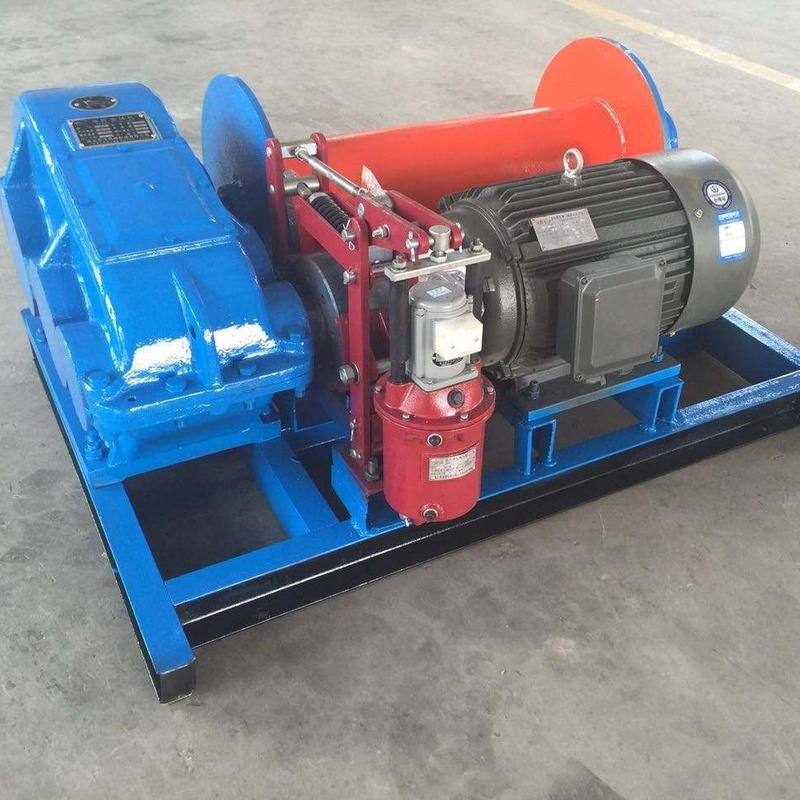

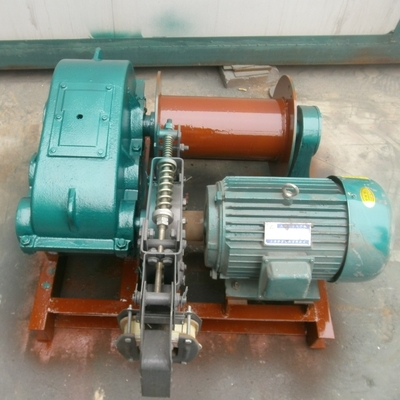

Winch Photos:
