Product Details:
|
| Product Name: | Electric Winch | Keyword: | Large Lifting Capacity Electric Winch |
|---|---|---|---|
| Capacity: | 5~650KN , 270~86000Kg | Sling Type: | Wire Rope |
| Lifting Speed: | 0-30m/min | Power Source: | Electric |
| Certification: | ISO CE | Usage: | Construction |
| Application: | Industry | Customized Support: | OEM |
| High Light: | ISO Electric Power Winch 1000lb,ISO Industrial Large Capacity Electric Winch,ISO Large Capacity Electric Winch 1000lb |
||
Large Lifting Capacity Electric Power Winch Used For Industrial
Description:
An electric winch is a small, lightweight lifting device that uses a reel to wrap a wire rope or chain to lift or pull heavy objects. It is also called a winch. The hoist can lift heavy objects vertically, horizontally or obliquely. It can be used alone or as a component of machinery such as lifting, road construction, and mine hoisting. It is widely used for hoisting or flat dragging of materials such as construction, water conservancy projects, forestry, mines, wharfs, etc.
Specification:
Electric winch is made up of motor, brake, drum, wire rope, electrical appliance, base ect , which can be customized according to client requirement.
| Type | Rated Load (KN) |
Reted Speed |
Rope capacity (m) |
Rope Diameter |
Motor Type |
Motor Power (KN) |
Dimension (mm) |
Weight (kg) |
| JM10 | 100 | 8 | 170 | 030 | YZR200L-6 | 22 | 2090x1475x956 | 3000 |
| JM10B | 100 | 9.5 | 250 | 030 | YZR200L-6 | 22 | 1705x1598x985 | 3500 |
| JM12.5 | 125 | 8 | 300 | 034 | YZR225M-6 | 30 | 2880x2200x1550 | 5000 |
| JM13.5 | 135 | 0-5 | 290 | 028 | YZP225S-8 | 22 | 2990x2363x1650 | 6500 |
| JM16 | 160 | 10 | 500 | 037 | YZR250M2-8 | 37 | 3750x2400x1850 | 8800 |
| JM20 | 200 | 10 | 600 | 043 | YZR280S-8 | 45 | 3950x2560x1950 | 9900 |
| JM25 | 250 | 9 | 700 | 048 | YZR280M-8 | 55 | 4350x2800x2030 | 13500 |
| JM32 | 320 | 9 | 700 | 056 | YZR315S-8 | 75 | 4600x2860x2100 | 14800 |
| JM50 | 500 | 9 | 800 | 065 | YZR315M-8 | 90 | 4930x3050x2250 | 19500 |
| JM65 | 650 | 10.5 | 3600 | 064 | LA8315-8AB | 160 | 5900x4690x3200 | 46000 |
JK series winch can be customzied Max. 60T according to your demands.
Features:
1. High versatility, compact structure and small size.
2. Light weight, heavy lifting, easy to use and transfer.
3. As hoisting equipment, it is used for mine hoisting, well drilling and hanging (lifting) well drilling equipment, that is, lifting ore, waste (gangue) rock, lifting personnel, lowering materials, tools and equipment, etc. along the wellbore
4. As transportation equipment, it is used for underground transportation of ore (mining cart), rake ore (slag) in the stope, or filling and removing uprights.
Applications of winch:
Electric winches are typically used to drag or lift heavy objects or objects vertically, horizontally or obliquely through the winch drum. etc.
Electric winches can be used for horizontal pulling, cable pulling or vertical lifting.

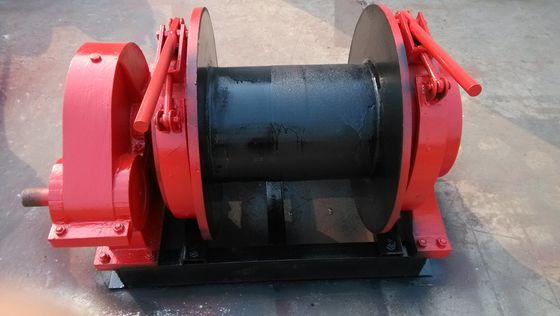

Winch Photos:
