5T 10T 20T CD MD Wire Rope Electric Crane Hoist Multi Function

5T 10T 20T CD MD Wire Rope Electric Crane Hoist Multi Function
5T 10T 20T CD MD Wire Rope Electric Crane Hoist Multi Function 5T 10T 20T CD MD Wire Rope Electric Crane Hoist Multi Function

Large Image :  5T 10T 20T CD MD Wire Rope Electric Crane Hoist Multi Function

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 30 workdays
Payment Terms: L/C, T/T
Supply Ability: 60000 sets per year

5T 10T 20T CD MD Wire Rope Electric Crane Hoist Multi Function

Description
Product Name: Electric Wire Rope Hoist Type: CD / MD Type
Loading Capacity: 0.25~20t Hoisting Height: 3~30m
Hoisting Speed: 8M/Min Power Supply: 380V 50Hz 3Ph Or Custom Made
Certification: CE ISO CCC Application: Industrial And Mining Enterprises, Warehousing, Docks
Sling Type: Wire Rope Warranty: 1 Year
High Light:

MD Wire Rope Electric Crane Hoist

,

CD Electric Crane Hoist

,

5 ton electric wire rope hoist

Custom 5ton 10t 20 Ton CD / MD Wire Rope Electric Hoist Multi Function



CD / MD Type Electric Wire Rope Hoist:


1.Model CD, MD wire rope electric hoist is a small size lifting equipment, which can be mounted on the single beam crane, Double Girder, gantry crane and arm cranes.

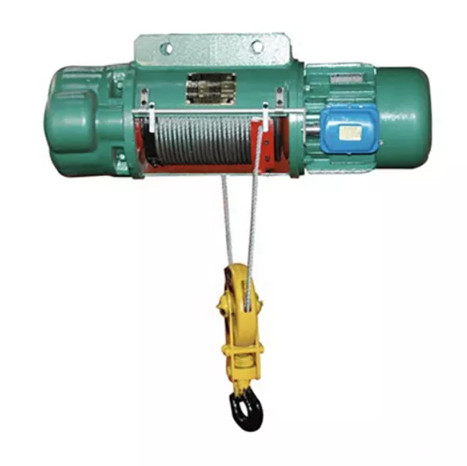

2.Model CD electric hoist has only one normal speed, which can satisfy normal application.

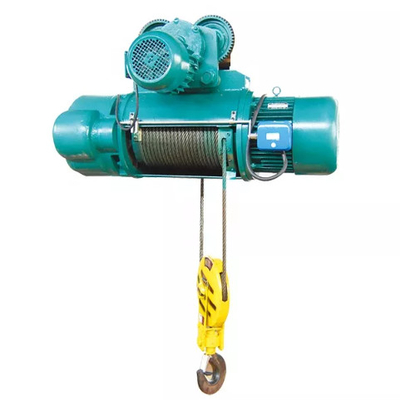

3.Model MD electric hoist provide two speeds: normal speed and low speed. At a low speed, it can do precise loading and unloading, mounding of sand box,maintenance of machine tools, etc.
4.It is widely used in factory, mines, harbour, warehouse, cargo storage areas and shops, essential in raising working efficiency and improving working conditions.



Technical Parameter:



Item
CD, MD Type Electric Wire Rope Hoist
Loading capacity
0.5~20t
Hoisting height
3~30m
Lifting speed
8(8/0.8)m/min, 7(7/0.7)m/min, 3.5(3.5/0.35)m/min, 4m/min
Travel speed
20m/min, 30m/min
Working system
Intermediate FC=25%
Power supply
380V 50Hz 3Ph or custom made




CD Type
MD Type

Lifting Capacity

0.25-20T
0.25-20T
Hoisting Height
3-30M
3-30M

Travel Speed

20/30 (m/min)
20/30 (m/min)

Hoisting Speed

8M/Min
0.8/8 (m/min)



Main Features:



1. Reducer: adopt third-class dead axel helical gear transmission structure gear and geaaxel are made of heat treated alloy steel

2. Button Switch: easy to operate, safey for operator, both remote control and pendant control are available.

3. Motor: three-phase asynchronous induction motor, durable and powerful. Insulation grade is F.

4. Protection grade: IP54, work grade: M3

5. Over load limit is available. Hook is widen and thicken

6. Power-Off protection, Emergency stop system.

7. Low noise, soft starting and stopping

8. Safe and reliable operation

9. One year warranty for whole machines

10. Providing free quick-wear part

11. Low charge for continue maintenance when warranty is expired

12. Exclusive engineer support at any time.

13. Highly professional training to end-users.



Photos:

Wire Rope Electric Monorail Hoist For Gantry Crane 20t 6
