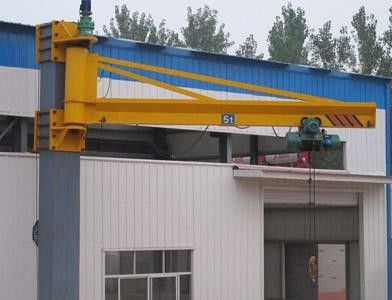

Economical 0.125T To 3T Wall Jib Crane For Machinery Manufacturing

Economical 0.125T  To 3T Wall Jib Crane For Machinery Manufacturing
Economical 0.125T  To 3T Wall Jib Crane For Machinery Manufacturing Economical 0.125T  To 3T Wall Jib Crane For Machinery Manufacturing

Large Image :  Economical 0.125T To 3T Wall Jib Crane For Machinery Manufacturing

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 30 workdays
Payment Terms: L/C, T/T
Supply Ability: 60000 sets per year

Economical 0.125T To 3T Wall Jib Crane For Machinery Manufacturing

Description
Product Name: Wall Jib Crane Hoist Keyword: Wall Jib
Capacity: 125KG To 3000KG Lifting Height: 3m
Span: 2-6m Feature: Economical And Durable
Hoisting Mechanism: Electric Wire Rope Hoists & Chain Hoists Application: Machinery Manufacturing
High Light:

Economical 3T Wall Jib Crane

,

0.125T Wall Jib Crane

,

3000KG wall travelling jib crane

Wall Jib Crane Wide Adaptability Special Crane For Machinery Manufacturing



Wall Jib Crane:



  • The wall-mounted cantilever crane is a special crane for machinery manufacturing and assembly workshops. It uses the rails arranged on the walls of the multi-layer assembly workshop to walk on the walls, which can make full use of the space structure of the workshop and save the production space. The operation is flexible and convenient.
  • It provides fluent moving of materials on an every level of the workshop.
  • Equipped by wire rope hoists with low headroom or chain hoists series.



Features:



The wall-mounted jib crane (wall crane) is composed of a bracket, a jib device and a chain electric hoist. The cantilever is fixed on the wall or concrete column, and can be rotated according to user needs. The rotary part is divided into manual rotary and electric rotary. The electric chain hoist is installed on the cantilever track and is used to lift heavy objects.



Specification:



Wall Type Jib Crane 0.5t
lifting height h m 5 5.5 6
valid radius R m 4 4.5 5
lifting speed m/min 8
traveling speed m/min 20
slewing angle   180°,270°,360°,any
center height H1 m 1.6
max. length L m 4.43 4.93 5.43
total weight kg 389 405 420



Safe Operation:



When operating a jib crane, all national safety technical codes for crane use and operation should be followed. To ensure safety and avoid damage to the equipment, please observe the following safety precautions.
The use of jib cranes to transport people is not permitted.
Do not lift loads over personnel. Do not pull or tow loads.
Overloading is not allowed.
Avoid hitting the limit switch with the lifting hook during normal operation.
Other important operating tips: The load spreader must be hung on the trolley with a flexible connection. Rigid connections generate uncontrollable forces that eventually lead to fatigue fracture.
When the load is loaded, the electric door is not allowed to be pulled. When the arm rotates manually, only the hook can be pulled, and the electric door and cable are not allowed to be pulled.
The fasteners on the jib crane should be checked and tightened once every 6 months.
