Product Details:
|
| Product Name: | Electric Transfer Cart | Keywords: | Material Transfer Cart |
|---|---|---|---|
| Type: | Electric | Capacity: | 50t |
| Features: | High Efficiency | Power Supply: | Battery |
| Warranty: | 1 Year | Color: | Customized |
| Usage: | Material Transportation | Application: | Machine Manufacturing |
| High Light: | 50T Material Transfer Trolley,Remote Control Material Transfer Trolley,P43 Rail Material Transfer Cart |
||
Remote Control Customization Size Material Transfer Cart Simple Structure Large Carrying Capacity
Electric Transfer Cart Descripition:
Electric flat car, also known as electric flat car, level car, trolley, workshop straddle car, floor climbing car, etc., is a kind of electric transportation vehicle in the factory area.
First of all, it is divided into a track flat car and a trackless flat car. Those with rails need to rely on rail operation, and those without rails can run at will; secondly, it is an electric drive vehicle, which is energy-saving and environmentally friendly. From different power supply methods, rail flat cars are divided into battery rail flat cars, low-voltage rail-powered flat cars and cable-powered rail flat cars. The four power supply modes of the car sliding contact line power supply rail flat car are widely used in various working environments. It is a flatbed truck with a flat surface without a cover, and can also be non-flat but without a cover under special circumstances. This kind of vehicle has the characteristics of simple structure, convenient use, large carrying capacity, not afraid of being dirty or smashed, easy to maintain, and long service life. and other old handling equipment, it has become the first choice for carrying heavy objects frequently within a short distance and between the factory buildings and between the factory buildings.
Electric Transfer Cart Parameters:
| Model | BXC-2t | BXC-20t | BXC-50t | BXC-100t | BXC-150t | |
| Rated Load(t) | 2 | 20 | 50 | 100 | 150 | |
| Table Size(mm) | Length(L) | 2000 | 4000 | 5500 | 6500 | 10000 |
| Width(W) | 1500 | 2200 | 2500 | 2800 | 3000 | |
| Heigth(H) | 450 | 550 | 650 | 900 | 1200 | |
| Wheel Base(mm) | 1200 | 2800 | 4200 | 4900 | 7000 | |
| Rail Inner Gauge(mm) | 1200 | 1435 | 1435 | 2000 | 2000 | |
| Wheel Diameter(mm) | 270 | 350 | 500 | 600 | 600 | |
| Wheel Quantity | 4 | 4 | 4 | 4 | 8 | |
| Ground Clearance(mm) | 50 | 50 | 50 | 75 | 75 | |
| Running Speed(min) | 0-25 | 0-20 | 0-20 | 0-20 | 0-18 | |
| Motor Power(kw) | 1 | 2.2 | 5 | 10 | 15 | |
| Battery Capacity | 180 | 180 | 330 | 440 | 600 | |
| Battery Voltage | 24 | 48 | 48 | 72 | 72 | |
| Running Time When Full Load | 4.32 | 4 | 3.3 | 3.2 | 2.9 | |
| Running Distance for One Charge(Km) | 6.5 | 4.8 | 4 | 3.8 | 3.2 | |
| Max Wheel Load(KN) | 14.4 | 77.7 | 174 | 343.8 | 265.2 | |
| Reference Weight(t) | 2.8 | 5.9 | 8 | 14.6 | 26.8 | |
| Recommended Rail Model | P15 | P24 | P43 | QU100 | QU100 | |
Electric Transfer Cart Operating procedures:
1. The staff must wear all labor protection and protective equipment before entering the workshop, otherwise they are absolutely not allowed to enter the production workshop.
2. Before using the electric flat car, it is necessary to check whether the exterior of the vehicle is in good condition, whether the transmission mechanism and its lubrication condition are normal, and remove the production waste or large obstacles stacked on both sides of the track and in the middle, as well as items that may affect the normal use of the electric flat car. Start The use signal should be issued before work.
3. During the operation of the electric flat car, avoid sudden start and sudden stop, to prevent the danger of slipping of the inertial load and the occurrence of safety accidents.
4. During operation, two people must work at the same time, one person operates the electric flat car, the other person pays attention to the items carried on the car and the surrounding conditions, and reminds the past staff to pay attention to safety, notify the operator in time when the situation is found, and take corresponding measures to prevent Injury to others or an accident to yourself occurs.

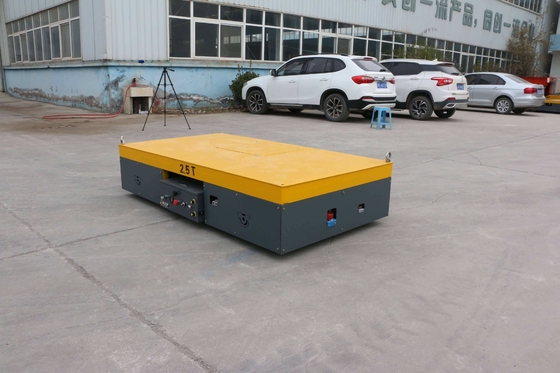

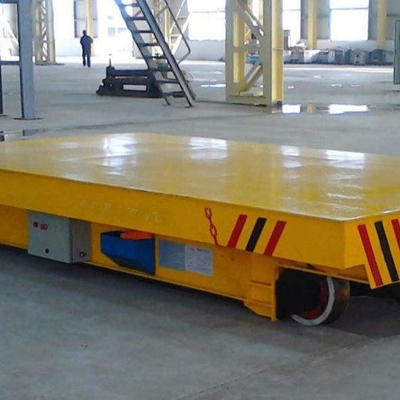

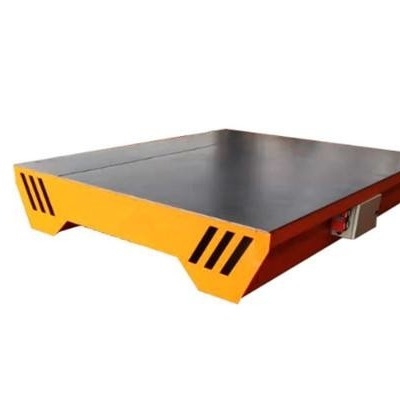

Electric Transfer Cart Photos:
