Product Details:
|
| Keywords: | MH Rail Mounted Gantry Crane | Condition: | New |
|---|---|---|---|
| Span: | 12m Or On Request | Feature: | Gantry Crane |
| Max. Lifting Height: | 9m,12m,6m | Max. Lifting Load: | 10 Ton |
| Control Method: | Wireless Remote Control,Ground Control | Power Source: | 3 Phase 380V 50hz Or Accord Your Requirements |
| Crane Feature: | Easy Operated Girder Bridge Crane | Application: | Workshop,Warehouse,factory |
| High Light: | MH Rail Mounted Gantry Crane,Span 12m Rail Mounted Gantry Crane |
||

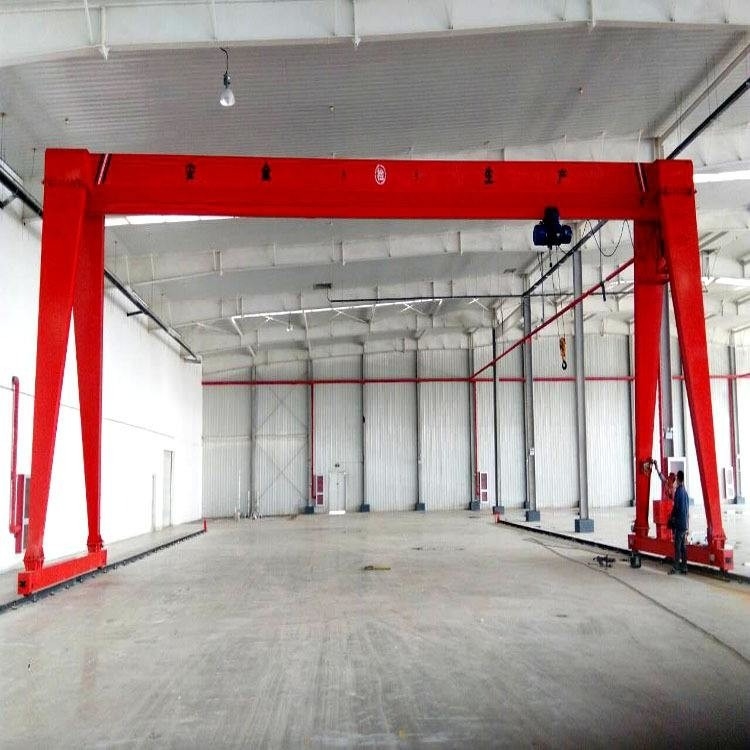

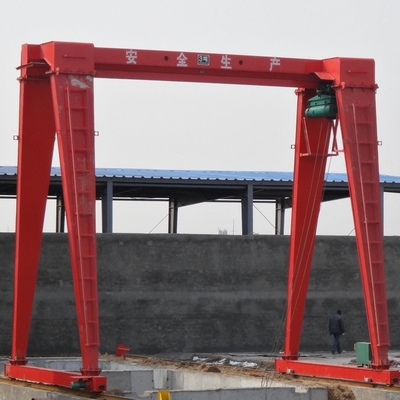

Span 12m MH Rail Mounted Gantry Crane , 10 Ton Single Beam Crane
Introduction:
The gantry crane is actually a variant of the bridge crane, which is mainly used for the loading and unloading operations of outdoor cargo yards, stockyards, and bulk cargo.
Outriggers are the key to supporting the operation of the gantry crane. There are pulleys under the outriggers. During the operation, the track is placed in the working area, and the gantry crane can be driven to move freely in the working area, and the gantry crane can be placed according to the needs. The role of the outriggers of the gantry crane is fully highlighted at this time.
Technical Parameter:
| Capacity | T | 3 | 5 | 10 | 16 | 20 | ||
| Span | m | 12,16,20,24,30 | ||||||
| Operational method | Pendent Line With Press Button /Cabin/ Remote | |||||||
| Speed | Lifting |
m/min |
8 ,8/0.8 | 8,8/0.8 | 7,7/0.7 | 3.5 | 3.5 | |
| Cross travelling | 20 | 20 | 20 | 20 | 20 | |||
| Long travelling | Ground | 20 | 20 | 20 | 20 | 20 | ||
| Cabin | 20, 30,45 | 20, 30,40 | 30,40 | 30,40 | 30,40 | |||
| Motor | Lifting | Type /kw | ZD41-4/4.5 ZDS1-4/0.4/4.5 |
ZD141-4/7.5 ZDS10.8/4.5 | ZD151-4/13 ZDS11.5/4.5 | ZD151-4/13 | ZD152-4/18 | |
| Cross travelling | ZDY12-4/0.4 | ZDY121-4/0.8 | ZDY21-4/0.8×2 | ZDY121-4/0.8×2 | YZD-4/0.8×4 | |||
| Long travelling | Ground | ZDY21-4/0.8×2 ZDY21-4/1.5×2 |
YZY22-4/1.5×2 YZR132M2-6/3.7×2 |
YZR22-4/1.5×2 | YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
YZR160M1-6/6.3×2 YZR160M2-6/8.5×2 |
||
| Cabin | ZDR100-4/1.5×2 ZDR112-4/2.1×2 |
YZR112L1-4/2.1×2 YZR160M1-6/2.1×2 |
YZR112L1-4/2.1×2 YZR160M2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
YZR160M2-6/8.5×2 YZR160L2-6/11×2 |
|||
| Electric hoist | Model | CD1/MD1 | CD1/MD1 | CD1/MD1 | CD1 | HC | ||
| Lifting height | m | 6,9 | ||||||
| Working duty | A3 | |||||||
| Power supply | 380V 60HZ 3phase AC (According to your demand ) | |||||||
Advantages:
1. Module control speed, micro-speed and double speed;
2. Traveling and lifting smoothly;
3. The power for trolley moving adopts flat cable, sliding smoothly;
4. Control box layout is reasonable, easy to repair;
5. Protection class IP55;
6. Optional main power source ;
7. All external cable line number with mark;
8. Safety smooth touch line, high conductivity, small pressure drop;
9. Light weight, installation convenience;
10. Set electric taxi speed is high, ensure continuing power supply;
11. Optional speed control module, and can realize the micro speed and double speed.
Details:
