L Type 30 Ton Rail Mounted Gantry Crane Single Beam For Workshop

L Type 30 Ton Rail Mounted Gantry Crane Single Beam For Workshop
L Type 30 Ton Rail Mounted Gantry Crane Single Beam For Workshop L Type 30 Ton Rail Mounted Gantry Crane Single Beam For Workshop

Large Image :  L Type 30 Ton Rail Mounted Gantry Crane Single Beam For Workshop

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 30 workdays
Payment Terms: L/C, T/T
Supply Ability: 5000 sets per year

L Type 30 Ton Rail Mounted Gantry Crane Single Beam For Workshop

Description
Keywords: Rail Mounted Gantry Crane Condition: New
Feature: L Type Span: 5-40m Or On Request
Max. Lifting Load: 10 Ton Max. Lifting Height: 9m,12m,6m
Power Source: 3 Phase 380V 50hz Or Accord Your Requirements Application: Workshop Loading And Unloading
High Light:

30 Ton Rail Mounted Gantry Crane

,

Single Beam Rail Mounted Gantry Crane

L Type 30 Ton Rail Mounted Gantry Crane Single Beam For Workshop



Introduction:



The gantry crane is actually a variant of the bridge crane, which is mainly used for the loading and unloading operations of outdoor cargo yards, stockyards, and bulk cargo. Gantry cranes, as the name suggests, are shaped like doors, and are further divided into double-girder gantry cranes and single-girder gantry cranes. Double girder gantry cranes have four outriggers, while single girder gantry cranes have two outriggers. Gantry cranes are divided into full gantry cranes and semi-gantry cranes. Semi-gantry cranes have outriggers only on one side, while full gantry cranes have legs at both ends.



Single main girder gantry crane gantry legs are available in two forms: L type and C type. The L-type is easy to manufacture and install, has good stress condition, and its own quality is small. However, the space for lifting goods through the outrigger is relatively small. The legs of the C-type are inclined or curved in order to have a large lateral space so that the goods can pass through the legs smoothly.



Product Features:



1. Simple and compact structure, steady performance.

2. Easy to install and high efficiency.

3. Overload, low voltage protective device.

4. Pendent control and remote control.

5. Easy maintenance.



Technical Parameter:



Lifting Weight(t)
3
5
10
16
20
Span(m)
12/16/20/24
12/16/20/24/30
12/16/20/24/30
12/16/20/24/30
12/16/20/24/30
Lifting Height(m)
6/9
6/9
6/9
6/9
6/9
Working Grade
A5
A5
A5
A5
A5
Steel Track Recommended
P24/P38
P24/P38
P38/P43
P38/P43
P43/P50
Power Supply
3PH, 380V, 50HZ
3PH, 380V, 50HZ
3PH, 380V, 50HZ
3PH, 380V, 50HZ
3PH, 380V, 50HZ

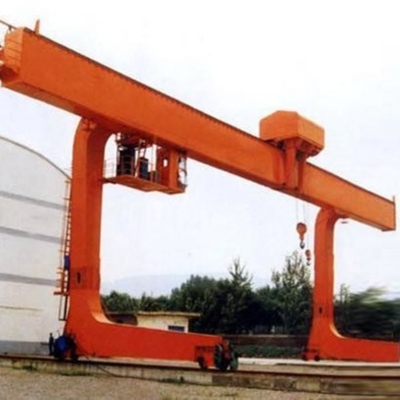

L Type 30 Ton Rail Mounted Gantry Crane Single Beam For Workshop 0



Application:



Gantry cranes are mainly used for the loading and unloading of outdoor cargo yards, stockyards and bulk cargoes. Its metal structure is like a door-shaped frame, and two feet are installed under the bearing main beam, which can walk directly on the track on the ground, and the two ends of the main beam can have outrigger cantilevers. Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port cargo yards.



Photos:

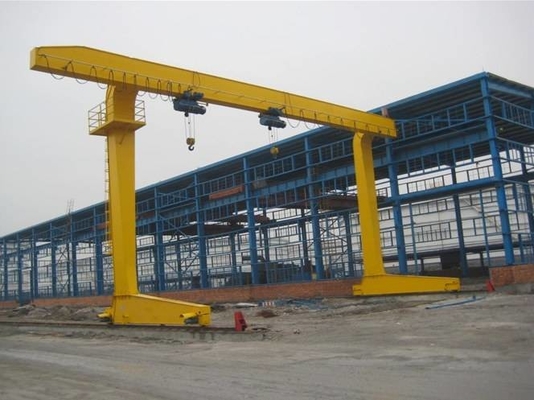

L Type 30 Ton Rail Mounted Gantry Crane Single Beam For Workshop 1
