Cab Operation L Leg Box Beam Double Cantilever Gantry Crane 50/10T

Cab Operation L Leg Box Beam Double Cantilever Gantry Crane 50/10T
Cab Operation L Leg Box Beam Double Cantilever Gantry Crane 50/10T Cab Operation L Leg Box Beam Double Cantilever Gantry Crane 50/10T

Large Image :  Cab Operation L Leg Box Beam Double Cantilever Gantry Crane 50/10T

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 30 workdays
Payment Terms: L/C, T/T
Supply Ability: 5000 sets per year

Cab Operation L Leg Box Beam Double Cantilever Gantry Crane 50/10T

Description
Keywords: Cab Operation Gantry Crane Single Girder Feature: L Leg Model
Type: Double Cantilever Beam Type: Box
Span: 5-40m Max. Lifting Load: 10 Ton
Max. Lifting Height: 9m,12m,6m Application: Workshop Loading And Unloading
High Light:

Double Cantilever Gantry Crane 10T

,

Box Beam Double Cantilever Gantry Crane

Cab Operation L Leg Box Beam Double Cantilever Gantry Crane 50/10T



Information:



Outriggers are the key to supporting the operation of the gantry crane. There are pulleys under the outriggers. During the operation, the track is placed in the working area to drive the gantry crane to move freely in the working area, and the gantry crane can be placed as needed. . The role of the outriggers of the gantry crane is fully highlighted at this time.



Technical Parameter:



Capacity t 10 16 20/10 30/10 36/16 50/10
Span m 18-35 18-30 18-35 22-26 26-30 32
Duty   medium medium medium medium Heavy Heavy/medium
lifting height main m 11.5 12.5 10.5 11.5 11.5 12
aux. / / 11 12 12 13
speed hoist main m/min 18.4 12.3 9.2 10.4 10.4 6
aux. / / 18.4 18.4 12.3 18
traversing 43.8 44.5 44 41.9 53 38.13
travelling 48.4-54.6 49.1-51.2 51 51.2 51.1 43.8

Cab Operation L Leg Box Beam Double Cantilever Gantry Crane 50/10T 0



Application:



Gantry cranes are mainly used for the loading and unloading of outdoor cargo yards, stockyards and bulk cargoes. Its metal structure is like a door-shaped frame, and two feet are installed under the bearing main beam, which can walk directly on the track on the ground, and the two ends of the main beam can have outrigger cantilevers. Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port cargo yards.



Photos:

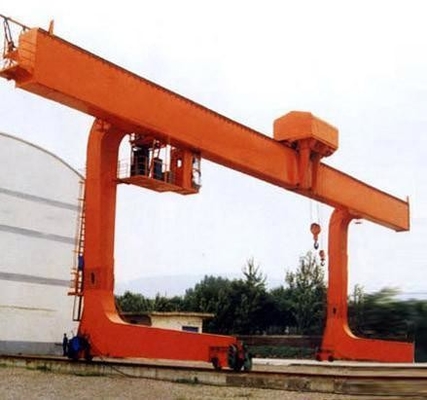

Cab Operation L Leg Box Beam Double Cantilever Gantry Crane 50/10T 1
