A3 10T Single Girder Gantry Crane Box Beam Strong Rigidity

A3 10T Single Girder Gantry Crane Box Beam Strong Rigidity
A3 10T Single Girder Gantry Crane Box Beam Strong Rigidity A3 10T Single Girder Gantry Crane Box Beam Strong Rigidity

Large Image :  A3 10T Single Girder Gantry Crane Box Beam Strong Rigidity

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 30 workdays
Payment Terms: L/C, T/T
Supply Ability: 5000 sets per year

A3 10T Single Girder Gantry Crane Box Beam Strong Rigidity

Description
Keywords: Single Beam Gantry Crane Condition: New
Feature: Box Beam Strong Rigidity Span: 5-40m Or On Request
Max. Lifting Load: 10 Ton Max. Lifting Height: 9m,12m,6m
Control Method: Wireless Remote Control,Ground Control Power Source: 3 Phase 380V 50hz Or Accord Your Requirements
Application: Warehouse
High Light:

A3 Single Girder Gantry Crane

,

Box Beam Single Girder Gantry Crane

A3 10T Single Girder Gantry Crane Box Beam Strong Rigidity



Introduction:



Gantry cranes can be divided into gantry cranes and cantilever gantry cranes through the door frame structure.



Gantry crane
1. Full gantry crane: the main beam has no overhang, and the trolley is carried within the main span;
2. Semi-gantry crane: The outrigger has a height difference, which can be determined according to the civil engineering requirements of the site.



Cantilever Gantry Crane
1. Double cantilever gantry crane: the most common structural form, the force of the structure and the effective use of the site area are reasonable.
2. Single cantilever gantry crane: This structural form is often selected due to site constraints.



Technical Parameter:



Capacity T 3 5 10 16 20
Span m 12,16,20,24,30
Operational method   Pendent Line With Press Button /Cabin/ Remote
Speed Lifting



m/min

8 ,8/0.8 8,8/0.8 7,7/0.7 3.5 3.5
Cross travelling 20 20 20 20 20
Long travelling Ground 20 20 20 20 20
Cabin 20, 30,45 20, 30,40 30,40 30,40 30,40
Motor Lifting Type /kw ZD41-4/4.5
ZDS1-4/0.4/4.5
ZD141-4/7.5 ZDS10.8/4.5 ZD151-4/13 ZDS11.5/4.5 ZD151-4/13 ZD152-4/18
Cross travelling ZDY12-4/0.4 ZDY121-4/0.8 ZDY21-4/0.8×2 ZDY121-4/0.8×2 YZD-4/0.8×4
Long travelling Ground ZDY21-4/0.8×2
ZDY21-4/1.5×2
YZY22-4/1.5×2
YZR132M2-6/3.7×2
YZR22-4/1.5×2 YZR160M1-6/6.3×2
YZR160M2-6/8.5×2
YZR160M1-6/6.3×2
YZR160M2-6/8.5×2
Cabin ZDR100-4/1.5×2
ZDR112-4/2.1×2
YZR112L1-4/2.1×2
YZR160M1-6/2.1×2
YZR112L1-4/2.1×2
YZR160M2
YZR160M2-6/8.5×2
YZR160L2-6/11×2
YZR160M2-6/8.5×2
YZR160L2-6/11×2
Electric hoist Model CD1/MD1 CD1/MD1 CD1/MD1 CD1 HC
Lifting height m 6,9
Working duty   A3
Power supply   380V 60HZ 3phase AC (According to your demand )



Gantry crane features:



1. Overloading is efficient;
2. Suitable for any environment (high temperature, explosion-proof, etc.);
3. Long lifespan: 30-50 years;
4. Easy installation and maintenance;
5. Reasonable structure and strong rigidity;
6. Speed variable frequency speed regulation;
7. The control method is cabin control or remote control;
8. According to the lifting cargo, the crane can be equipped with beam magnet or magnet chuck or grab bucket or C hook;
9. The crane is equipped with all standard safety devices such as mobile limit switches and loading limits to ensure the safe operation of the crane.



Application:



Gantry cranes have the characteristics of high site utilization, large operating range, wide adaptability and strong versatility, and are widely used in port cargo yards.



Photos:

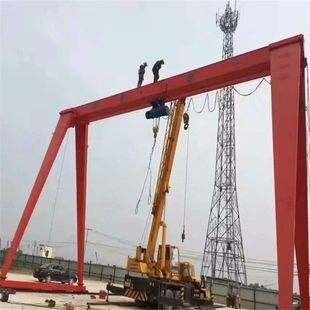

A3 10T Single Girder Gantry Crane Box Beam Strong Rigidity 0A3 10T Single Girder Gantry Crane Box Beam Strong Rigidity 1
