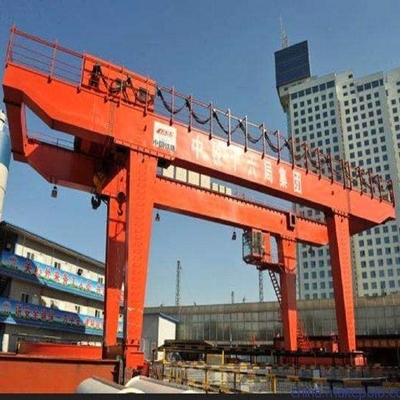

Q345 Steel Heavy Duty MG/A Type Double Girder Gantry Crane 30 Ton

Q345 Steel Heavy Duty MG/A Type Double Girder Gantry Crane 30 Ton
Q345 Steel Heavy Duty MG/A Type Double Girder Gantry Crane 30 Ton Q345 Steel Heavy Duty MG/A Type Double Girder Gantry Crane 30 Ton

Large Image :  Q345 Steel Heavy Duty MG/A Type Double Girder Gantry Crane 30 Ton

Product Details:
Place of Origin: Henan,China
Certification: CE ISO GOST
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Export standard packaging
Delivery Time: 45 workdays
Payment Terms: L/C, T/T
Supply Ability: 500 sets per year

Q345 Steel Heavy Duty MG/A Type Double Girder Gantry Crane 30 Ton

Description
Keywords: Double Girder Hook Gantry Crane Type: Heavy Duty MG/A Type
Capacity: 30T Span: 5-40m Or On Request
Certification: CE Max. Lifting Height: 9m,12m,6m
Crane Feature: Easy Operated Girder Bridge Crane Application: Warehouse Loading And Unloading Materials

Q345 Steel Heavy Duty MG/A Type Double Girder Gantry Crane 30 Ton


Double Girder Gantry Crane Introduction:




The gantry crane runs on the track laid on the ground, and the lifting weight ranges from 5 tons, 10 tons, 16 tons, 20 tons to 600 tons.



LH type electric hoist double-girder gantry crane has a hoisting trolley on its double main girder, the electric hoist is fixed on the hoisting trolley, the hoisting mechanism is an electric hoist, and the working level is more A3.



MG type hook double-girder gantry crane is divided into A type and U type, which belong to the lifting trolley hook type, and are also divided into full flower frame type and full box type. The lifting capacity ranges from 10 tons to 50/10 tons. Its track is generally heavy rail, and the working level is A5. The lifting mechanism is the reducer, motor, drum, brake, electrical appliance, etc. on the lifting trolley. hook.


Double Girder Gantry Crane Technical Parameter:



Lifting Weight 10 16 20/10 32/10 36/16 50/10
Span (m) 18/22/26/30/35 18/22 30 18/22/26/30/35 22/26 22/26/30/35 32
Lifting Height Primary 11.5 10.5 12 10.5 11.5 11.5 12
Secondary     11 12 12 13
Working Duty   A5 A5~A6 A5 A5~A6 A5~A6
Speed Lift Primary (m/min) 18.4 12.3 9.2 10.4 10.4 6
Secondary     13.2 13.2 12.3 18
Travel Handcart 43.8 44.5 44.5 41.9 51 38.13
Cart 54.6 48.4 51.2 49.1 51.2 48 51.2 51.2 51.2 43.8
Steel Track (Kg/m) 43 50


Advantages:


1. Module control speed, micro-speed and double speed;
2. Traveling and lifting smoothly;
3. The power for trolley moving adopts flat cable, sliding smoothly;
4. Control box layout is reasonable, easy to repair;
5. Protection class IP55;
6. Optional main power source ;
7. All external cable line number with mark;
8. Safety smooth touch line, high conductivity, small pressure drop;
9. Light weight, installation convenience;
10. Set electric taxi speed is high, ensure continuing power supply;

11. Optional speed control module, and can realize the micro speed and double speed.



How to choose:

1. Selection of gantry crane
2. Span and cantilever length
3. The principle of determining the wheelbase
4. The gantry crane spacing size is determined
Q345 Steel Heavy Duty MG/A Type Double Girder Gantry Crane 30 Ton 0

Q345 Steel Heavy Duty MG/A Type Double Girder Gantry Crane 30 Ton 1

If you want to order this gantry crane, Pls tell me the details as follows:



1. The Max. lifting capacity? (Ton)
2. The span of gantry crane?(the distance of rail to rail center)
3. Do you need cantilevers at two beam ends? if it is, Pls mention the length per side.
4. The Max. lifting height of hook? (or total height of crane)
5. What type meterial will you to lift?
6. The power source standard?(380V, 50Hz, 3phase or others)
