Product Details:
|
| Keywords: | Single Beam Overhead Crane | Condition: | New |
|---|---|---|---|
| Span: | 5-40m Or On Request | Feature: | Bridge Crane |
| Max. Lifting Height: | 9m,12m,6m | Max. Lifting Load: | 10 Ton |
| Control Method: | Wireless Remote Control,Ground Control | Power Source: | 3 Phase 380V 50hz |
| Application: | Workshop,Warehouse,factory | ||
| High Light: | 600mm Hydraulic Table Lift Cart,Cargo Movement Hydraulic Table Lift Cart,Cargo Movement scissor lift table cart |
||

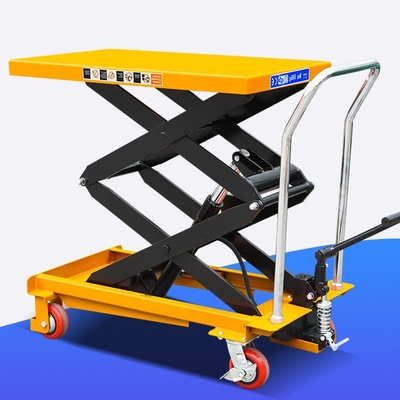

150 ~ 1000 KG Hydraulic Scissor Lift Table For Order Preparation And Cargo Movement
Hydraulic Scissor Lift Table Introduction:
The manual scissor lift table with foot operated hydraulic pump is ideal for a variety of lifting and loading operations and can be used as a mobile work table for better ergonomics and increased productivity. It represents the best solution for manual load handling, combining functionality, cost savings, safety and health of the operator during work.
Hydraulic Scissor Lift Table Technical Parameter:
|
Model |
Capacity |
Highest height |
Lowest Height |
Length |
Width |
Platform |
Net Weight |
|
|
(kgs) |
(mm) |
(mm) |
(mm) |
(mm) |
(mm) |
(kgs) |
|
CZ 153 |
150 |
920 |
320 |
1150 |
650 |
900x600 |
65 |
|
CZ 303 |
300 |
920 |
320 |
1150 |
650 |
900x600 |
65 |
|
CZ 503 |
500 |
920 |
320 |
1150 |
650 |
900x600 |
75 |
Hydraulic Scissor Lift Table Application:
Our scissor lift tables and hydraulic platform dollies are ideal for order preparation and cargo movement. They are commonly used throughout business and industry including factories, warehouses, retail stores, printers, schools, colleges, laboratories, banks and offices.
Hydraulic Scissor Lift Table Composition:
