Product Details:
|
| Product Name: | Electric Hoist | Type: | Electric Chain Hoist |
|---|---|---|---|
| Loading Capacity: | 0.5~20t | Hoisting Height: | 3m |
| Hoisting Speed: | 2.8~8.8m/min | Power Supply: | 380V 50Hz 3Ph Or Custom Made |
| Certification: | CE ISO CCC | Application: | Industrial And Mining Enterprises, Warehousing, Docks |
| Sling Type: | Chain | Warranty: | 1 Year |
| High Light: | GOST 1 Ton Electric Chain Hoist,8.8m/min 2T Electric Chain Hoist,High Heat Dissipation 2T Electric Hoist |
||

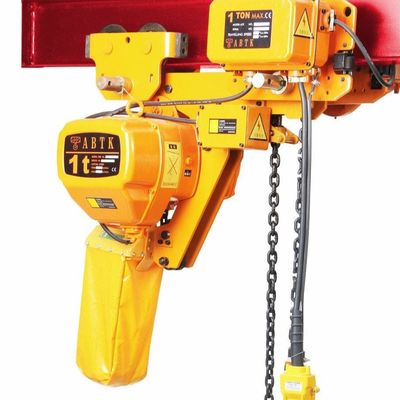

2 Ton 1 Ton Electric Chain Hoist Light And Firm High Heat Dissipation
Electric chain hoist:
The electric chain crane is a typical and unique optimized structure, which can shorten the distance between the body and the beam rail, and is especially suitable for temporary plants or places where the effective lifting space in the plant needs to be expanded. The most important components of the machine are chains and braking systems.
Technical Parameter:
|
lift capacity(T)
|
1
|
1.5
|
2
|
3
|
5
|
10
|
20
|
|
Testing loading(T)
|
1.25Gn
|
1.25Gn
|
1.25Gn
|
1.25Gn
|
1.25Gn
|
1.25Gn
|
1.25Gn
|
|
Motor power(kw)
|
1.5
|
3.0
|
3.0
|
3.0
|
3.0
|
3.0*2
|
3.0*2
|
|
Lift speed(m/min)
|
6.6
|
8.8
|
6.6
|
5.4
|
2.7
|
2.7
|
1.4
|
|
Lift chain quantity
|
1
|
1
|
1
|
1
|
2
|
4
|
8
|
|
Chain diameter(mm) |
7.1
|
10.0
|
10.0
|
11.2
|
11.2
|
11.2
|
11.2
|
|
Net weight(kg)
|
61
|
108
|
115
|
122
|
151
|
300
|
480
|
Main Features:
The weight of the electric chain hoist is generally 0.1 to 60 tons, and the lifting height is 3 to 120 meters. The characteristics of the electric chain hoist: advanced performance structure, small size, light weight, reliable performance, convenient operation, wide application range, suitable for It is very convenient for lifting heavy objects, loading and unloading work, maintaining equipment and lifting goods. It can also be installed on suspended I-beams, curved rails, jib crane guide rails and fixed lifting points to lift heavy objects.
Photos:
Application:
1, Extensively used in factories, workshops, warehouses and many other occasions to hoist materials directly
2, Installed on the straight or curve I-steel beam of Single-girder Cranes to lift goods
3, It can also be used together with Electric Hoist Double-beam, gantry crane and slewing cranes to hoist different items and so on.
