Product Details:
|
| Keywords: | Stationary Hydraulic Electric Scissor Lift Table | Other Name: | Fixed Scissors Lifting Platform |
|---|---|---|---|
| Capacity: | 500~2000kg | Advantage: | Easy To Install , Use And Maintain |
| Control Method: | Hand Control | Application: | For Moving Bulky Materials |
| High Light: | Hydraulic Scissor Lifting Table 2000kg,Hydraulic Scissor Lifting Table Hand Control,stationary scissor lift table 2000kg |
||
Stationary Hydraulic Electric Scissor Lift Table , Fixed Scissors Lifting Platform
Information:
Hydraulic scissor lift table is an important component in material handling area, it is one of professional high-altitude operation equipment.Scissor lift table is mainly used to convey goods from one working level to another, and it can be installed on the ground or in the pit.
Technical Parameter:
|
Capacity |
kg |
1000 |
|
Max. lift height |
mm |
1000 |
|
Min. height of table |
m'm |
190 |
|
Lifting height |
mm |
810 |
|
Table size |
mm |
1350*800*80 |
|
Motor power |
kw |
0.75 |
|
Input voltage |
V |
220/380 |
|
Rise time |
s |
19 |
|
Lowering speed |
mm/s |
＜150 |
|
Service weight |
kg |
206 |
Standard Safety Features:
1. Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
2. Low-tention(24V) control box with up-down buttons.
3. Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
4. Heavy duty cylinders with drainage system and check valve to stop the lift table lowering in case of hose burst.
5. Safety clearance between scissors to prevent trapping during operation.
6. With anti-explosion valve
7. With Safety guard
8. Upper travel limit switch to stop table at maximum height to reduce motor wear
9. Product meet EN norm and ANSI/ASME safety standards.
Application:
Widely used in automobiles, containers, mold manufacturing, wood processing, chemical cans and other industrial enterprises and production lines.
Raises the load to the desired position to prevent back injuries and reduce flex caused by heavy-duty tasks such as lifting and bending.

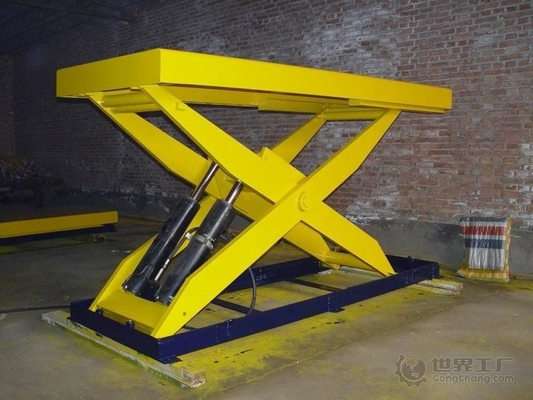

Photo:
