Product Details:
|
Keywords: | Hydraulic Lifting Tables | Type: | Heavy Duty |
---|---|---|---|
Max. Lifting Height: | 3m | Max. Lifting Load: | 2 Ton |
Table Size: | Custom | Control Method: | Hand Control |
Power Source: | 380V 50hz 3 Phase | Application: | Workshop |
High Light: | 3 phase Hydraulic Scissor Lifting Table,50hz Hydraulic Scissor Lifting Table,3 phase heavy duty hydraulic lift |

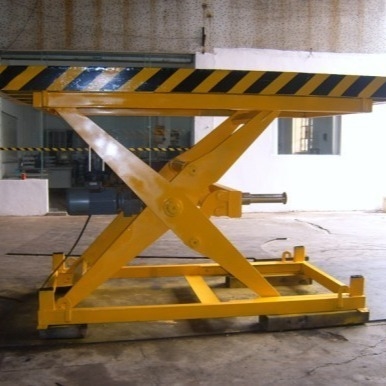

Heavy Duty Single Scissor Fork Table Electric Hydraulic Goods Lifting
Hydraulic Lifting Tables Introduction:
Heavy duty design.
Meet EN1570 norm and ANSI/ASME safety standard.
High quality power unit made in Europe.
Self lubricating bushings on pivot points.
Removable lifting eyes.
Upper platform lifted with aluminum safety bar preventing descent on contact with obstructions.
Internal power pack equipped with relief valve against overloading and compensated flow valve for controlled lowering speed.
Heavy duty cylinders with drainage system and check valve to stop the lift table lowering suddenly in case of hose burst.
Safety clearance between scissors to prevent trapping during operation.
Hydraulic Lifting Tables Technical Parameter:
CAPACITY | LIFT STROKE | CLOSED HEIGHT | WIDTH | LENGTH |
---|---|---|---|---|
500 | 500 | 180 | 650 | 850 |
500 | 1600 | 220 | 800 | 2250 |
500 | 1250 | 220 | 800 | 1800 |
500 | 900 | 180 | 800 | 1350 |
500 | 900 | 180 | 1000 | 1350 |
1000 | 900 | 180 | 1200 | 1350 |
1000 | 900 | 180 | 1000 | 1350 |
1000 | 550 | 180 | 800 | 1000 |
1000 | 1600 | 300 | 1500 | 2250 |
1000 | 1600 | 235 | 1000 | 2250 |
1000 | 1250 | 235 | 1200 | 1800 |
1000 | 1250 | 220 | 800 | 1800 |
1000 | 900 | 180 | 800 | 1350 |
2000 | 1600 | 300 | 1500 | 2250 |
2000 | 900 | 230 | 1000 | 1350 |
2000 | 1600 | 300 | 1200 | 2250 |
2000 | 1250 | 250 | 1500 | 2000 |
2000 | 1250 | 250 | 1200 | 2000 |
2000 | 1250 | 250 | 1200 | 1800 |
2000 | 1250 | 250 | 800 | 1800 |
2000 | 900 | 230 | 800 | 1350 |
3000 | 1600 | 300 | 1200 | 2250 |
3000 | 1600 | 300 | 1500 | 2250 |
3000 | 2000 | 300 | 1200 | 3000 |
3000 | 2000 | 300 | 1500 | 3000 |
3000 | 1300 | 300 | 1200 | 2000 |
3000 | 1100 | 300 | 1000 | 1800 |
3000 | 900 | 300 | 1000 | 1350 |
3000 | 1300 | 300 | 1500 | 2000 |
4000 | 2000 | 400 | 1500 | 3000 |
4000 | 1600 | 400 | 1500 | 2500 |
4000 | 2000 | 400 | 1200 | 3000 |
4000 | 1600 | 400 | 1200 | 2500 |
4000 | 900 | 300 | 1200 | 1500 |
4000 | 1300 | 300 | 1500 | 2000 |
4000 | 1300 | 300 | 1200 | 2000 |
5000 | 1300 | 400 | 1500 | 2250 |
5000 | 1300 | 400 | 1200 | 2250 |
5000 | 2000 | 400 | 1500 | 3000 |
5000 | 2000 | 400 | 1200 | 3000 |
5000 | 1600 | 400 | 1500 | 2500 |
5000 | 1600 | 400 | 1200 | 2500 |
6000 | 1600 | 400 | 1200 | 2500 |
6000 | 1300 | 400 | 1200 | 2250 |
8000 | 1500 | 600 | 2000 | 3000 |
10000 | 1500 | 600 | 2000 | 3000 |
Hydraulic Lifting Tables Application:
Hydraulic Lifting Tables Details:
