Product Details:
|
| Keywords: | Hydraulic Lifting Table | Condition: | New |
|---|---|---|---|
| Table Size: | Customized | Max. Lifting Height: | 900~2000mm |
| Loading: | 500~5000kg | Control Method: | Wireless Remote Control,Ground Control |
| Power: | 0.5kw-21kw | Application: | Production Line |
| High Light: | 21kw Hydraulic Lifting Platform,21kw hydraulic platform lift table,0.5kw Hydraulic Lifting Platform |
||

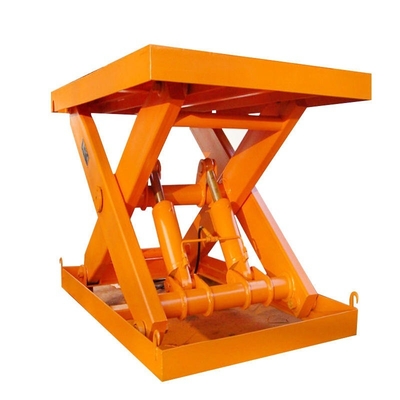

Heavy Duty Single Scissor Fork Hydraulic Lifting Platform For Production Line
Hydraulic Lifting Platform information:
Our heavy duty static scissor lift table is a hydraulic platform to raise and lower loads of 2200lbs,4400lbs, offering a convenient and flexible solution to the manual handling of goods. The large platform lift table is used within production lines as an ergonomic solution to support active working environments. The large platform lift table through its hydraulic scissor mechanism powered through a single-phase electrical supply; the operator can load goods or a pallet on to the lifting platform.
Advantages:
Technical Parameter:
| rated loading(kg) | min height(mm)H1 | max height(mm)H2 | table size(mm)L*W | lifting time(s) | votage(V) | power(Kw) |
| 500 | 200 | 900 | 1350*700 | 16 | 380 | 1.5 |
| 1000 | 220 | 1020 | 1500*800 | 18 | 380 | 2.2 |
| 2000 | 220 | 1020 | 1800*1000 | 31 | 380 | 3 |
| 5000 | 350 | 1550 | 2000*1200 | 56 | 380 | 5.5 |
| 10000 | 450 | 1450 | 2800*1800 | 48 | 380 | 5.5 |
Application:
Widely used in automobiles, containers, mold manufacturing, wood processing, chemical canning and other industrial enterprises and production lines.
Photos:
